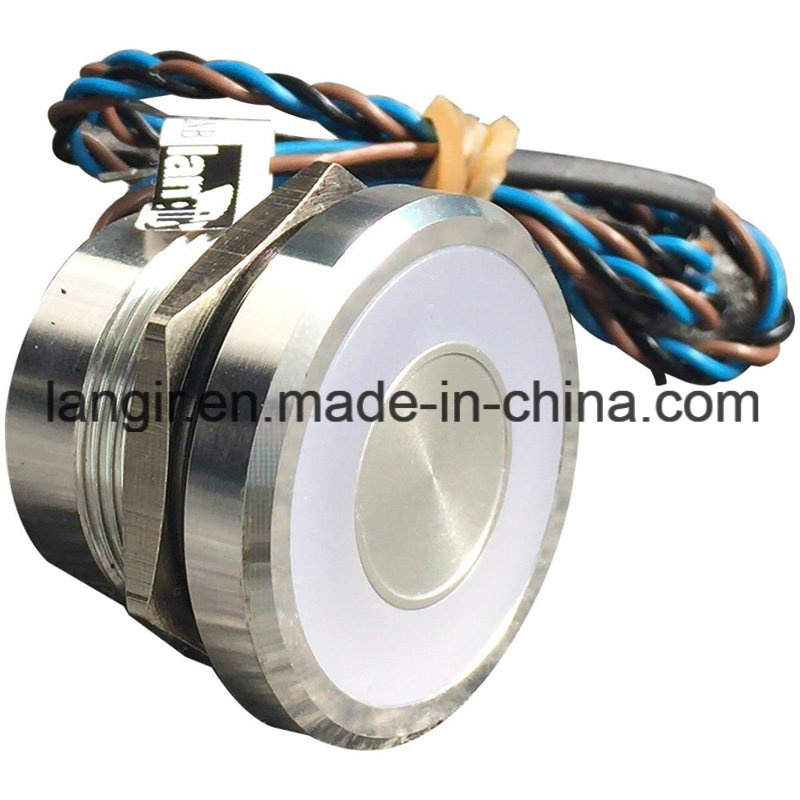

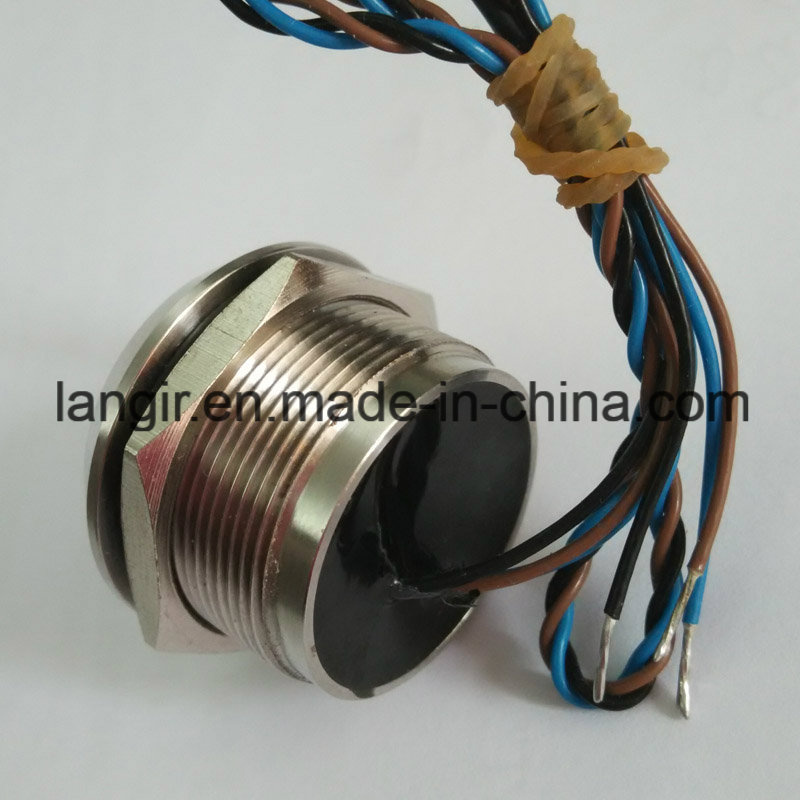

IP68 Waterproof Latching Self -Locking Stainless Steel Crust 25mm Capacitive Piezo Switch

Name: IP68 Waterproof Latching Self -Locking Stainless Steel Crust 25mm Capacitive Piezo Switch
Brand: all-electronics-online.com
SKU: 799072605
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	US $ 15.33/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

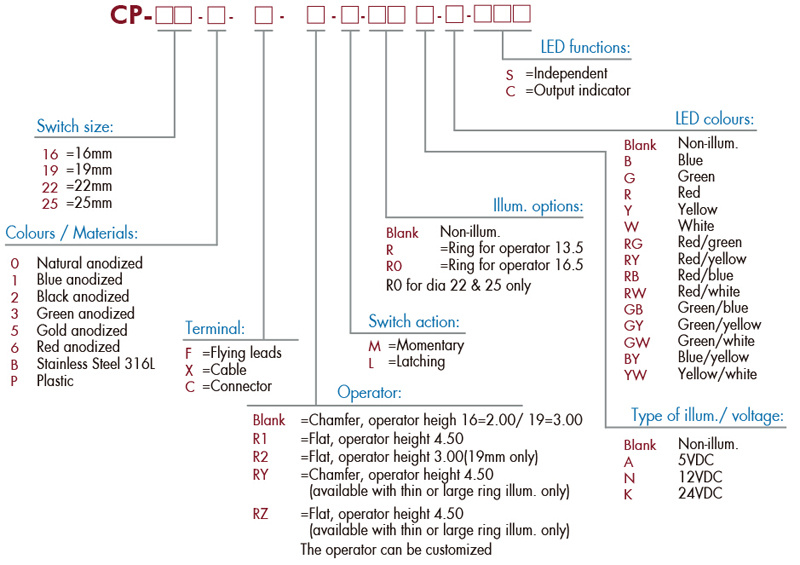

Prod Model:	PZ25BFR1LRG
Function:	Momentary or Latching
Material:	Aluminum, Stainless Steel 316L , Plastic
Illumination:	Ring or DOT
LED Voltage:	5V, 12V, 24V
Type:	Normal Open
Usage:	Reset Button

Product Description

Technical Characteristics:

Environmental
Sealing: IP68 and IP69K according to IEC60529
Triggered by flowing water
Impact resistance: IK10
Operating temperature: -20°C to +65°C
ESD: complies with EN61000-4-2 (extended) ± 8KV (20 contacts) and ± 15KV (20 air discharges)

Electrical:
ax. Current/voltage rating: 200mA 24VDC
Supply voltage: 5 to 24VDC
Life expectancy: 50 million cycles
Operating force: 0N
Output type: NPN
Momentary/ Latching
Normally Open/ Normally Closed

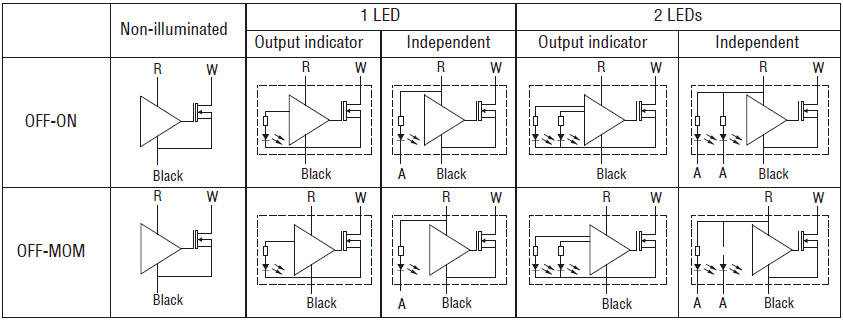

Wiring diagram:

Legend:
R red +V
Black black GND
W white output
A = same colour as LED
About Capacitive Switch

The new CP Series Capacitive switch technology senses the touch of a finger and creates an electrical charge to activate the switch. An auto-calibration function ensures the sensor adapts to changing external environments. LANGIR's capacitive switches are specially designed for durability and a low activation force. As sensitive as a touch screen, the capacitive switches are perfect for industrial applications where repetitive activation can cause operator fatigue.

Features:
Activated by the easy touch of a finger, the capacitive switches extremely to use
Adjustable sensitivity sensor adapts to external environments
Easy-to-locate or on/off indication is possible through independent or output image LED functionality
Easy to clean because the switch is impervious to dust and dirt, and resistant to harsh chemicals and contaminants
50 million cycles and no moving mechanical parts make LANGIR's CP Switches robust and durable

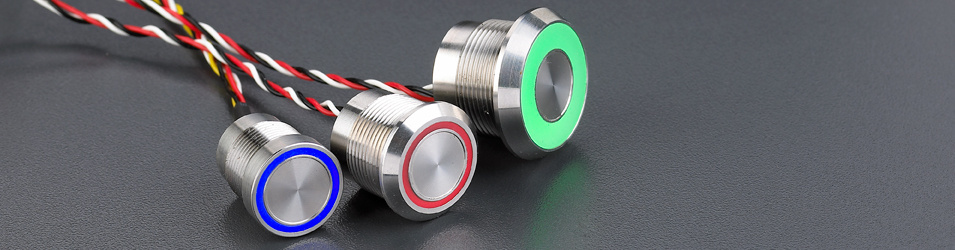

Available in momentary or latching and with or without illumination

Benefits:
Extreme ease of use/ Adaptable/ Easy-locate or on/off indication/ Easy to clean/ Robust and durable

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
