Prod Model: |
JLD7820ZC-G2Y |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wavelength: |
780nm~787nm |
Optical Output Power: |
200MW Cw |
Can Type: |
To18-5.6mm |
Light Color: |
Infrared |
Power Characteristic: |
High Power |
Life Time: |
10000 Hours |
Reverse Voltage: |
2V |
Operating Current: |
160mA |
Operating Voltage: |
2.1V |
Operating Temperature: |
-10~+65 Degree |
Manufacturing Technology: |
Optoelectronic Semiconductor |
Material: |
Element Semiconductor |
Type: |
Laser Diode |
Package: |
Through Hole |
Application: |
CD-R Drives, CD-RW Drives, etc |
Model: |
Gh0782ra2c |

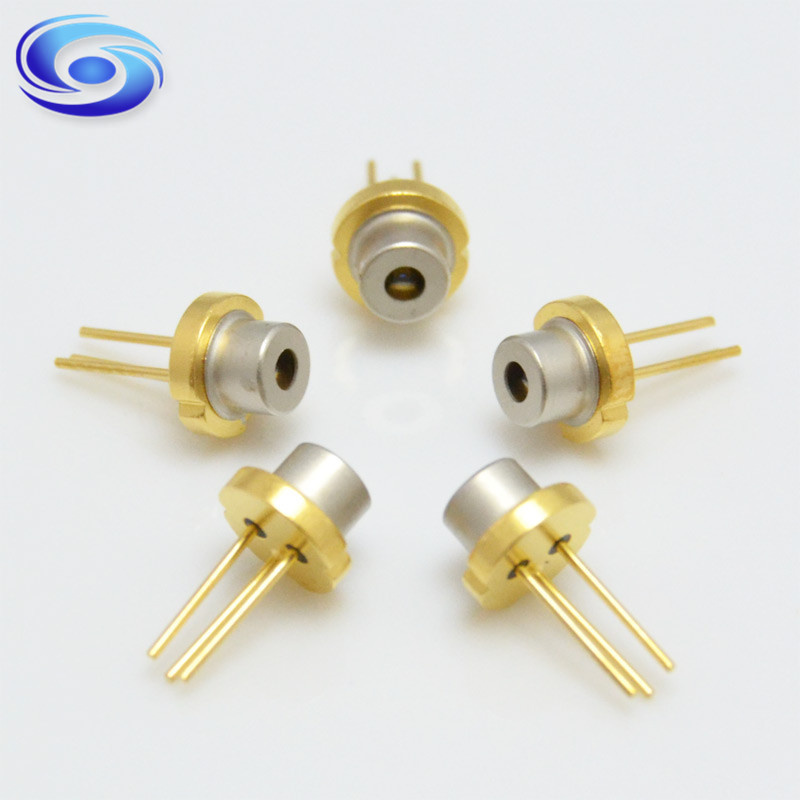

Product Description
Features:
1. Maximum optical power output: 200mw (CW)
2. Wavelength: TYP.784nm
3. φ5.6mm package
A. Product Description
Absolute Maximum Ratings (Tc=25ºC)
Parameter | Symbol | Ratings | Unit |
Output Power | Po(CW) | 200 | mW |
Output Power(pulse) | Pp | 355 | mw |
Reverse Voltage (LD) | VR | 2 | V |
Operating Temperature | Topr | -10~+65(CW) -10~+75(pulse) | ºC |
Storage Temperature | Tstg | -40~+85 | ºC |
Soldering Temperature | Tsld | 300 | ºC |
Electrical/Optical Characteristics ( Tc=25ºC)
Item | Symbol | Min | Typ. | Max | Unit | Test Condition |
Threshold current | Ith | - | 35 | 45 | mA | - |
Operating current | Iop | - | 141 | 167 | mA | Po=100mW |
Operating voltage | Vop | - | 2.1 | 2.5 | V |
Wavelength | λp | 780 | 784 | 787 | nm |
Half intensity angle | Parallel | θ// | 7.8 | 8.7 | 9.8 | º |
Perpendicular | θ⊥ | 14.5 | 16 | 17.5 | º |
Ripple | Ri | -20 | - | +20 | % |
Misalignment angle | Parallel | Δθ// | -1.5 | - | +1.5 | º |
Perpendicular | Δθ⊥ | -2.5 | - | +2.5 | º |
B. Packaging & Shipping
1. Plastic box, standard and normal package
2. Delivered by DHL, FedEx, Post Service, Aramex, GLE, etc, or any other special way you like
3. Delivery time will be usually 3~5 working days
C. Company Information & Services
Every customer's admiration is our goal and future willing, we are concentrated in doing
the best quality products, supplying the best goods and service.
Main products: Semiconductor laser diode, laser module, laser power bank, bicycle lasertail light, bicycle wheel light, headlight, auto laser fog light. The laser wavelength includig:405nm 410nm 445nm 450nm 455nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 980nm RGB and so on.
Welcome Your Inquiry
TO: Ms. Song
Mob: +86 13713250894
Dongguan BU Laser Co.,Ltd
FAQ
1. Payment Terms: Paypal, TT and Western Union, etc
2. Lead Time: within 1~3 working days after receiving the payment
3. Quality Assurance: the goods can be returned if any quality problem have appeared, providing not damaged by the user
Dongguan Blueuniverse Laser Co., Ltd. Was started in 2006, and established in 2015, the company is located in Dongkeng Town, Dongguan, Guangdong Province. Which is a collection of research, produce, sales photoelectric enterprise. We specialize in semiconductor laser diodes, laser light source, LED light source as the center and we are still continuously researching and developing the laser peripheral areas.
Main products are included below but not limited:
Semiconductor laser diode, laser module, bicycle rear light, head light, bicycle wheel light, laser fog light, laser power bank.
Since 2006, our company has owned a number of excellent engineers, management department and well-trained staff. According to the modern enterprise management, we have perfect quality testing, monitoring, tracking and feedback system and put scientific management into effect. Further more, we also pursue ISO9001 international quality system, according to the international standard management. Our products also have all kinds of export certification and a number of patent.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sterilization, physical therapy, stage, measurement, advertisement, outdoor ridding and other industries.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
We devote ourselves to developing good quality products, and supplying better products and services. Our strategy for successes is to follow the advanced and the latest technologies all the time and to make contribution to the optical enterprise.
