| Prod Model: |
ISA5208 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wheel Rotary Encoder: |
52mm |
| Rotary Number: |
Three Buttons |
| Usage: |
Machinery |
| Standard: |
Standard |
| Structure: |
Self-Reset |
| Operation: |
Protection Type |
| Certification: |
CE |
| Condition: |
New |
Product Description
Rotary Encoder, Incremental Encoder, digital encoder
1. Shaft diameter 8mm
2. Housing diameter 52mm
3. Clamping flange
Rotary Encoder, Incremental Encoder, digital encoder
Certificate: CE
Shaft diameter Φ 8mm, clamping flange, Housing diameter Φ 52mm.
Low price at high performance, small volume, Light weight, easy for installing.
Applications:

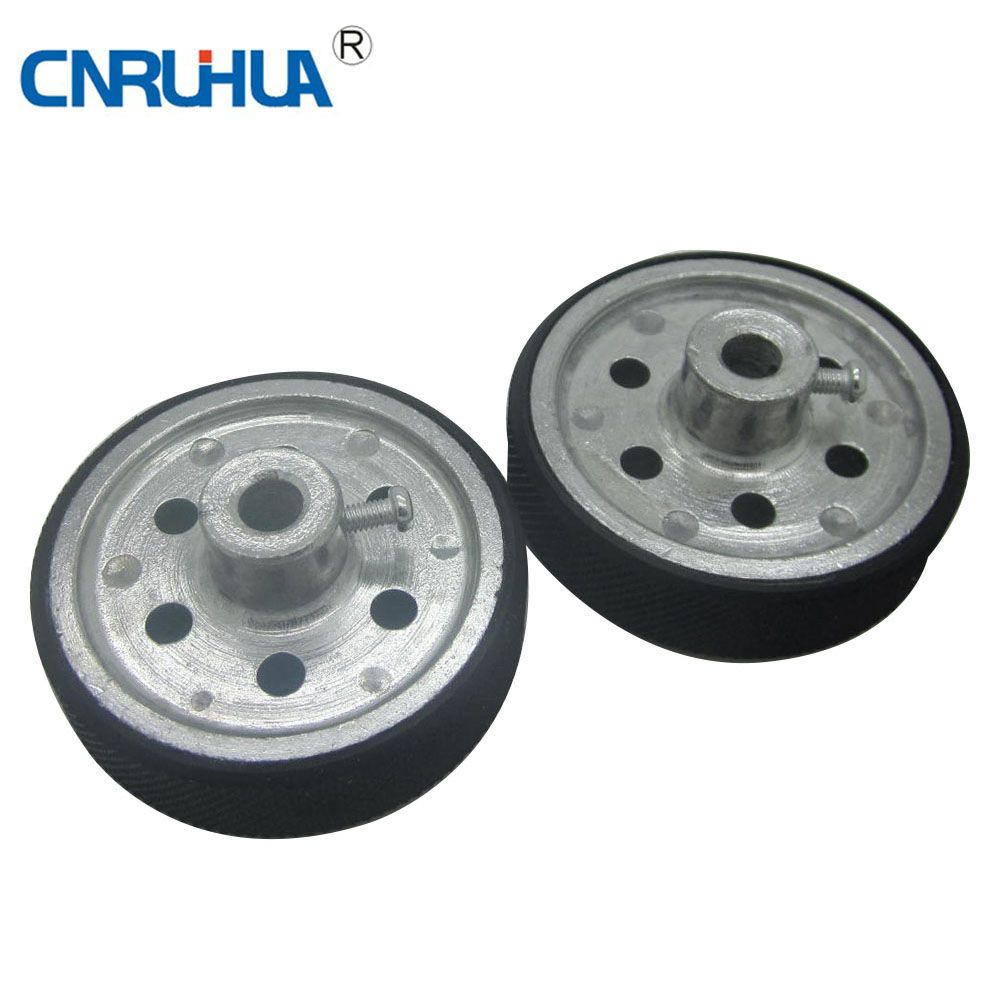

Suitable for measuring the length or speed of, target by wheel type. The circumference of.
Wheel has three types(S; Types(S1=200mm, S2=204mm, S3=300mm)
Output waveform
90° Output phase differp; Difference, CW rotation(CW rotation as seen from fit surface)
Square-wave accuracy: : X1+X2=1/2T± 1/12T
X3+X4=1/2T± 1/12T
Pitch error of period: ± 0.01T. Pitch error of phase position: ≤ 1/18T
Z phase: TZ=1/4T(1T, 1/2T1/4T). Period of pulses: T=360° /N(N: Output pulses)
Signal accuracy: Xn=1/4T± 1/12T(n=1, 2, 3, 4)
A leads B clockwise when viewing the encoder shaft end, The position of Z phase against A, B phase is not specified.
| ELECTRICAL SPEC |
| output circuit | open collector NPN output | voltage output | push pull output | line driver output |
| supply voltage | 5-24 | 5-24 | 5± 0.25 5-24 | 5± 0.25 5-24 |
| current consumption | ≤ 80mA | ≤ 80mA | ≤ 80mA | ≤ 150mA |
| load current | 40mA | 40mA | 40mA | 60mA |
| single high level | min Vcc*70% | min Vcc-2.5V | min Vcc-1.5V | min 3.4V |
| single low level | Max 0.4V | Max 0.4V | Max0.8V | Max 0.4V |
| rising time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| declining time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| response frequency | 300kHz | 300kHz | 300kHz | 300kHz |
| MECHANICAL SPEC | | | |
| number of pulses | starting torque without sealing | Max load permitted on shaft | shock resistance | vibration proof |
| 2500 | ≤ 0.05Nm | radial 50N, Axial 20N | 50G /11ms | 10G 10-2000Hz |
| rotational inertia | Working temperature | Storage temperature | Protection class | Weight |
| 4x10 -8 kgm 2 | - 30 ~ 85 C | - 35 ~ 95 C | IP65 | 100g |
