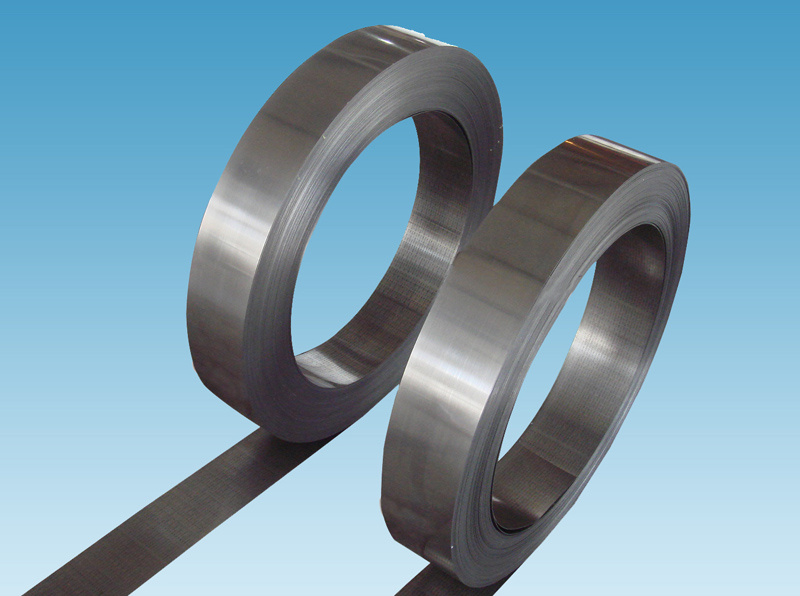

ISO9001 Approval Thermostatic Bimetal Strip

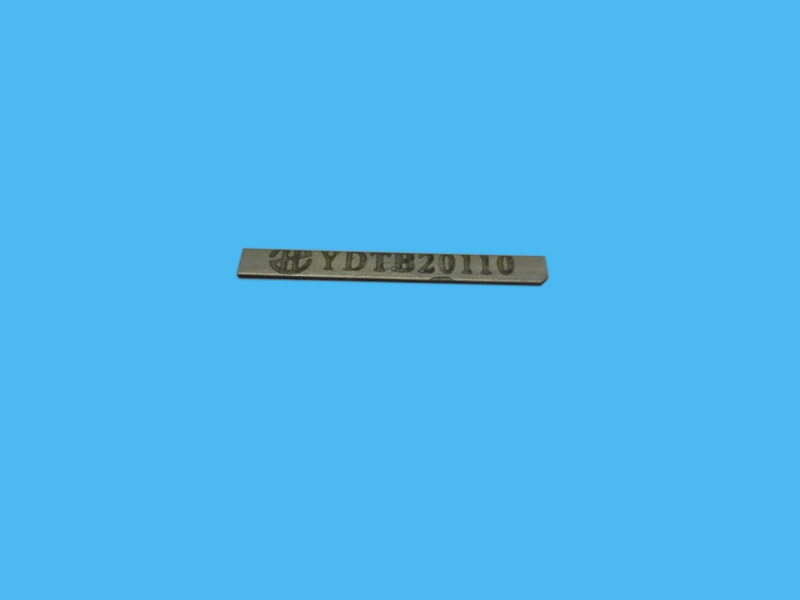

Prod Model:	YDTB20110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging Details:	Be Packed in Wooden Cases
Delivery Details:	10-20days
Brand Name:	Yada
Thickness:	0.1/0.2/0.3/0.5/0.6mm,etc
Width:	7/9/12/24/34/36mm etc
Application:	MCB/Breaker/Relay/Electric Kettle,etc
Technique:	Cold/ Hot Roll
Certificate:	ISO9001
Warranty:	12 Month

Product Description

Thermostatic bimetals are today widely used in control ,safety and thermal compensation Systems , due to their reliability, sturdiness and low cost .The wide range of YADA bimetals ,manufactured to DIN standards ASTM standards and chinese GB standards , ensures a Choice of products closely matched to di f ferent speci f ic requi rements. Moreover the tighter gurantees offered by YADA for both the physical properties and dimensional tolerances enable the bimetals to meet the increasingly stringent demands of modern industry.
Working termperature is the temperature is determined by the respective maximum application temperature . Two ranges are to be distinguished,which coincide with the linearity range.
For such a range, bimetal types YDTB1578,YDTB20110 are most suitable. 1578 grades are the most common and the least expansive bimetals. Although their linear sensitivity range is limited to 200 . They can be used without risk up to 500 , if high sensitivity and linearity are not neccessary. They therefore constitute the basic elements of most safety and control mechanisms, in applications such as automobiles and domestic appliances. If the thermal sensitivity of these grades is not sufficient, YDTB20110 with an almost 40% higher thermal deflection, should be chosen . With this grade , bimetal applications can be extended to cases, where conventional types would not be suitable :small temperature variations, small spaces,etc.For such a range, bimetal types YDTB1578,YDTB20110 areMost suitable. YDTB1578 grades are the most common and theleast expansive bimetals. Although their linear sensitivity range is limited to 200 . They can be used without risk up to 500 , if high sensitivity and linearity are not neccessary.They therefore constitute the basic elements of most safety and control mechanisms, in applications such as automobiles and domestic appliances.If the thermal sensitivity of these grades is not sufficient, YDTB20110 with an almost 40% higher thermal deflection, should be chosen . With this grade , bimetal applications can be extended to cases, where conventional types would not be suitable :small temperature variations, small spaces,etc.It can also find applications in more simple case, since its high price (due to the nature of the components and the difficuity of manufacture)is partly compensated by the weight savings made possible by its high performance.If, in case of thermal conduction by an external medium, short reacting times are required, bimetals with an intermediate copper layer and higher thermal conductivity such as 1411,11SP can be of advantage.
When higher working temperatures are required, bimetal typesYDTB1070,YDTB1109 are often preferred.YDTB1070 conserves Electrical resistivity is relevant in those cases where the bimetals carry an electric current, because the change of
temperature that ,ay result from the current is partly determined by this characteristic. Electrical resistivity Very small as well as very high resistivity has to be available. By inserting a nickel or copper layer of appropriate thickness
between the components , the original resistivity of a bimetal can be lowered with the relative ease without considerable loss in thermal deflection. Lines of different resistivities of the above kind are manufactured by YADA with bimetal types 1578;1480:20110(60SP. . .5SP)and wi th1440(1440. . .1303) .Raising the upper limit has been achieved without major loss of thermal deflection with bimetal 14140, which consists of the same commponents as 20110, but with a different ratio of layer thickness.a linear behaviour up to 380 When higher working temperatures Are required, bimetal types YDTB1070,YDTB1109 are often Preferred.YDTB1070 conserves a linear behaviour up to 380 When rapid thermal conduction is required in this range,YDTB1109,a sandwich form of YDTB1070 with a copper layer is preferred. These bimetals are used in domestic appliances(irons)or in heating equipments.




Bimetal specification:

YADA  Type  (YDTB)	Spec thermal curvature k 10-6	Spec thermal deflection  a  10-6	Linearity range Acc. DIN1715  ºC	Upper application limit  ºC	Stabilisation temperature  ºC/2hours	Electrical resistvity at 20ºC    μΩ.m	Density at 20ºC  g/cm3	Vickers hardness (HV) for standard reducation		Thermal conductivity at 20ºC  W/m-k	Specific heat at 20ºC  J/g-k	Modulus of elasticity at 20ºC  N/mm2	Maximum admissible stress at 20ºC      σPerm  N/mm2
								Active side	Passive side
YDTB20110	39.0+/-4%	20.8	-20 +200	350	250	1.10+/-4%	7.6	205	210	6	0.46	135000	200
YDTB14140	28.6+/-5%	15.5	-20 +200	350	250	1.40+/-5%	7.4	205	210	6	0.46	134000	150
YDTB15120	28.5+/-4%	15.3	-20 +200	350	250	1.20+/-4%	7.6	205	210	6	0.46	150000	200
YDTB60SP	38.5+/-4%	20.5	-20 +200	350	250	0.58+/-5%	7.8	205	210	12	0.46	135000	200
YDTB40SP	38.5+/-4%	20.5	-20 +200	350	250	0.40+/-5%	7.8	205	210	20	0.46	135000	200
YDTB25SP	38.5+/-4%	20.5	-20 +200	350	250	0.25+/-5%	7.8	205	210	30	0.46	135000	200
YDTB20SP	38.5+/-4%	20.5	-20 +200	350	250	0.208+/-7%	7.8	205	210	40	0.46	135000	200
YDTB15SP	38.2+/-4%	20.4	-20 +200	350	250	0.15+/-7%	7.8	205	210	54	0.46	135000	200
YDTB11SP	38.2+/-4%	20.4	-20 +200	350	250	0.115+/-7%	7.9	205	210	71	0.46	135000	200
YDTB8SP	38.0+/-4%	20.2	-20 +200	350	250	0.082+/-9%	8.0	205	210	104	0.46	135000	200
YDTB5SP	33.8+/-4%	17.9	-20 +200	350	250	0.048+/-9%	8.2	205	210	155	0.46	135000	150
YDTB1578	28.5+/-4%	15.0	-20 +200	450	350	0.78+/-5%	8.1	235	210	13	0.46	170000	200
YDTB1480	28.1+/-4%	14.0	-20 +200	450	350	0.80+/-5%	8.2	235	210	12	0.46	170000	200
YDTB1455	26.1+/-4%	14.0	-20 +200	450	250	0.55+/-5%	8.2	235	210	16	0.46	170000	200
YDTB1440	27.6+/-4%	14.2	-20 +200	450	250	0.40+/-5%	8.3	235	210	20	0.46	170000	200
YDTB1430	27.2+/-4%	14.8	-20 +200	450	250	0.30+/-5%	8.3	235	210	23	0.46	170000	200
YDTB1425	26.1+/-4%	14.0	-20 +200	450	250	0.25+/-5%	8.3	235	210	28	0.44	170000	200
YDTB1415	26.9+/-4%	14.3	-20 +200	450	250	0.15+/-5%	8.3	235	210	55	0.45	170000	200
YDTB1411	26.1+/-4%	14.0	-20 +200	350	250	0.11+/-5%	8.2	270	210	70	0.44	166000	200
YDTB1409	25.6+/-4%	13.9	-20 +175	350	250	0.09+/-5%	8.2	270	210	90	0.44	166000	200
YDTB1408	26.5+/-4%	14.3	-20 +175	350	250	0.08+/-5%	8.2	270	210	100	0.44	166000	200
YDTB1306	25.1+/-4%	13.8	-20 +175	350	250	0.06+/-5%	8.3	270	210	135	0.44	160000	150
YDTB1304(RF)	24.7+/-4%	13.0	-20 +175	350	250	0.04+/-5%	8.2	275	210	180	0.42	150000	150
YDTB1303(RS)	24.7+/-4%	13.0	-20 +175	350	250	0.03+/-5%	8.2	275	210	220	0.42	150000	150
YDTB1270	22.9+/-4%	11.8	-20 +380	450	350	0.70+/-4%	8.1	235	220	13	0.46	150000	200
YDTB1070	18.8+/-4%	10.8	-20 +380	450	350	0.69+/-4%	8.1	235	220	13	0.46	150000	200
YDTB1109	21.8+/-4%	11.6	-20 +380	400	250	0.09+/-5%	8.2	235	220	88	0.46	138000	200
* Other non standard or grades produced,please consult us.
