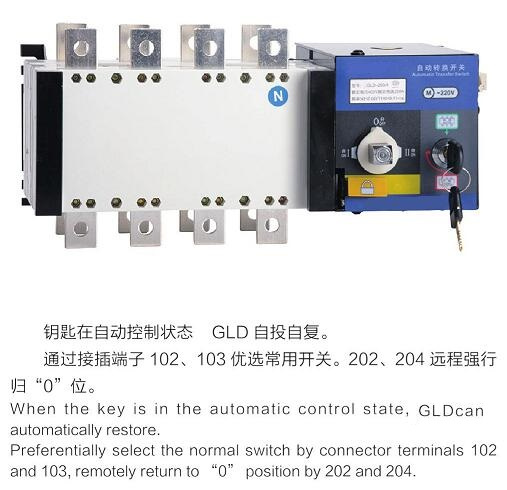

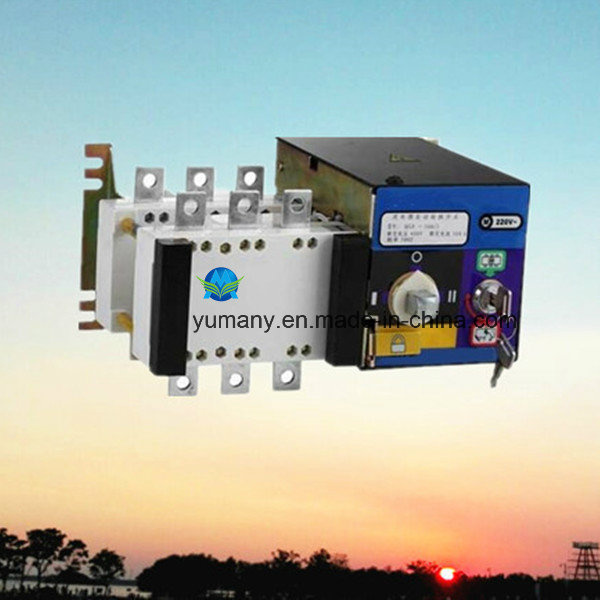

Isolating Disconnector Double Power Changeover Switch (GLD-160A/3)

Prod Model:	GLD-160A/3
Control Loop:	Using Insert Terminal Connection, Easy to Install.
Material:	PA66 DMC Shell, Red Copper Contact
Place Of Application:	Generator, Solar Panel, Wind Power Generation Sys

Product Description

Rated Current: 16A~3200A
HGLD series  Automatic Changeover Switch is applicable for the three-phase four-wire power supply system of AC 50Hz, rated voltage AC 660V and below, DC 440V and below, rated current up to 1600A.
It can realize automatic and manual changeover between normal and backup power supply power, and stop power supplying too load when changeover process of power supply is carried out.
The switch is applicable for two circuits power supply and in the condition which requires high quality power supply
This product is in confirmity with standary GB14048.3 GB14048.11(GB14048.11) IEC60947-1,IEC60947-3,IEC60947-6

Motor power P(380V) KW:220
Rated short-time withatand current(KA Rms)0.1s/1s:40/20
Rated breaking capability(A Rms) AC33 380V:3200
Rated making capability(A Rms)AC33 380V:4000
Rated short-current making capability I cm(KA peak value):30
Mechanical durability(number of cyclic operation):5500
Electric durability Cos Φ=0.65 AC33:500
Change-over time:I-0-II or II-0-I(s):1.2 I-0 or II-0(s):0.8
Power consumption of electrical control :24V(DC)(W) :90
                                                             220v(AV)(W):90
The solution for ATS
Main switchboard.
Distribution panel.
Emergency breaking.
Network coupling.
Local safety breaking.
Strong points of ATS
Reliability and performance.
Safety of property and personnel.
Simplicity.
Easy to install.

Enclosures of ATS
Can be easily fitted in enclosures and cabinets designed for electrical distribution.

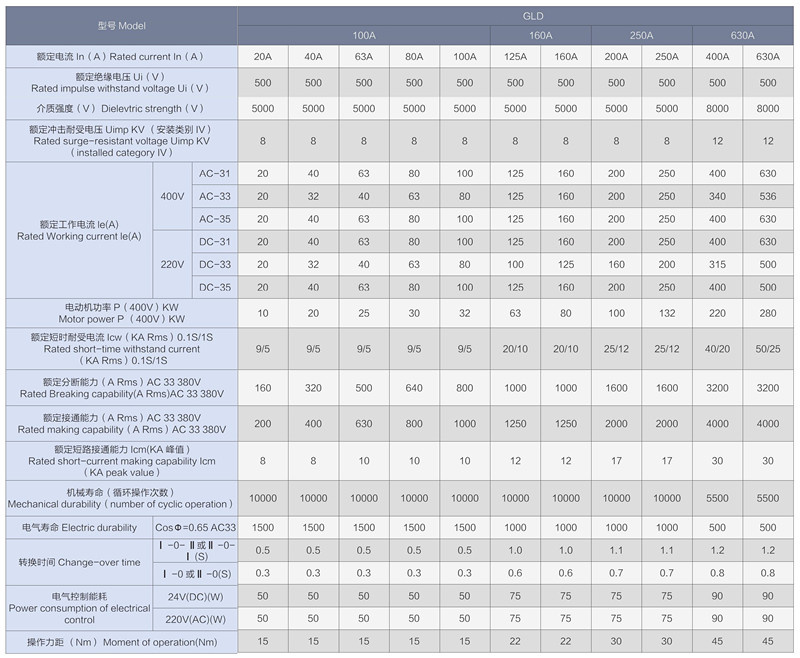

Specification of ATS
Specification of ATS

Current Frame	100A	160A	250A	400A	630A	800A	1250A	1600A	2500A	3200A
Product Current	20A,32A,40A, 63A,80A,100A	125A 160A	200A,225A 250A	315A 400A	500A 630A	700A 800A	1000A 1250A	1600A	2000A 2500A	3200A
