Isolating Switch Fuse with IEC60947-3

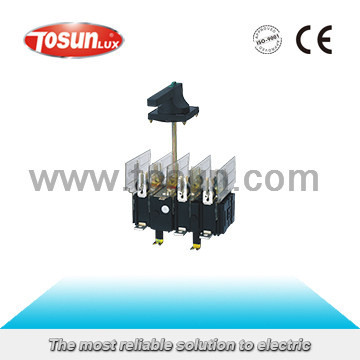

Name: Isolating Switch Fuse with IEC60947-3
Brand: all-electronics-online.com
SKU: 765667875
Availability: InStock
Rating: 4.4 (102 reviews)

Price:	US $ 12-14/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QSA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Operational Current:	63-630A
Rated Operational Voltage:	≤660V
Type:	High-voltage
Structure:	Single-column Disconnector
Installation:	Indoor High-voltage
Operation:	Electric
Grounding:	Single Ground
Series:	Two
Run:	Turn the Horizontal

Product Description

Model	QSA63	QSA125	QSA160	QSA250	QSA400	QSA630
Number of Main Poles	2, 3, 4					2, 3
Rated Insulation Voltage (V)	1000
Rated Operational Voltage (V)	AC:380V 660V DC:220V 440V
Rated Conventional Thermal Current Ith (A)	80	160	160	400	400	800
Rated Emclosed Thermal Current Ith (A)	63	125	160	250	400	630
Rated Operational Current (le)/Power AC
380V cos0.35 AC23(A/KW)	63/30	125/75	160/90	250/132	400/200	630/333
380V cos0.35 AC23(A/KW)	63/55	125/110	160/150	250/220	400/375	630/560
Rated Fused Short-Circuit Current (Kar.m.s)	100(380V)
Rated Fused Short-Circuit Current (Kar.m.s)	50(660V)
Max. Fuse-Link (A)	160			400		630
Mechanical Endurance (Operations)	1500		12000			3000
Electrical Endurance (Operations)	1000		300		200
Weight(kg)	1.6	1.7	4.1	4.5	4.7	14
Fuse Type NT (RT16) (size)	00			1-2		3
Required Torque (Nm)	7.5		16		60
Auxiliary Switch (380V AC-15) (220V DC-13) (A)	4				6
Switched Neutral Pole Ithe/le (220V DC-13) (A/A)	63/63	125/125	160/160	250/250	400/400	-
Neutral Link Ithe (A)	63	125	160	250	400	630

IF YOU ARE INTERESTED IN OUR PRODUCTS, PLEASE CONTACT WITH US. THANK YOU.

Why us(Isolating Switch Fuse)?
1. We have extensive experience in low tension electric items and illumination products. We have been  dealing the line for more than 21 years.

2. The prices of our products are very reasonable because our network of raw material supply, spare parts and goods. And our factory is efficient, covering an area of 13,000 m².

4. Our  group of professional inspectors supervising the quality for your every order. Our products have  obtained TUV, SEMKO, CE, CB, and ROHS certificates.

5. We have particular designers in charge of packing.

6. We have experienced salesmen to handle business for you specially.

About us Isolating Switch Fuse
nearly 20 years for Isolating Switch Fuse
1.  More than 23 years' experience. We have extensive experience in low tension electric items illuminaiton products.

2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m².

3. Reliable quality. We have professional inspectors supervising the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates.

4. Favorable service. We have experienced salesmen to handle business for you specially.

5. Attractive packing. We have particular designers in charge of packing material in a unique style.

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
