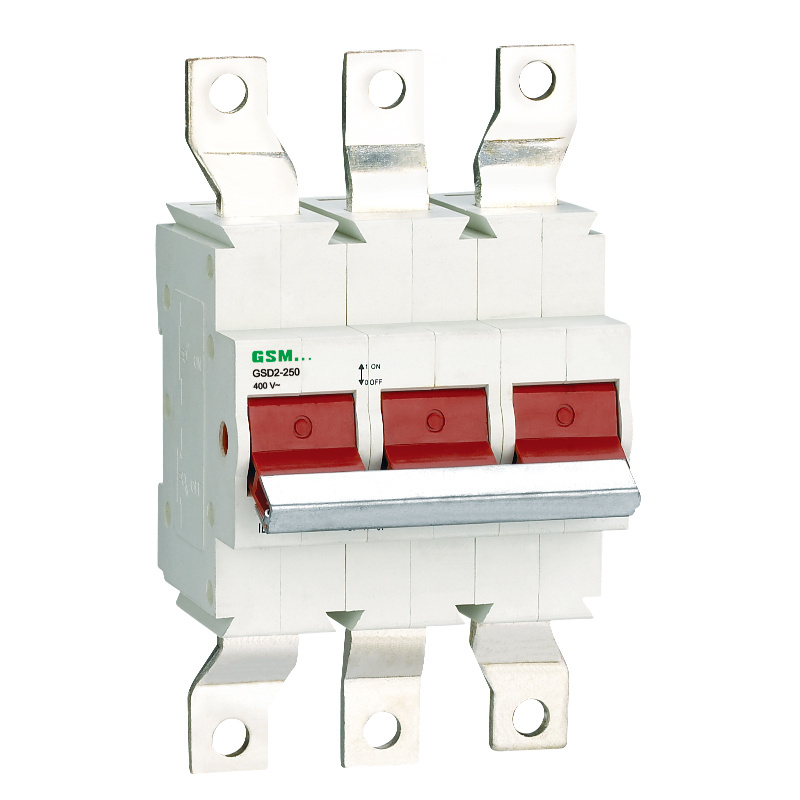

Isolating Switch (Main Switch) 3p-250A

Name: Isolating Switch (Main Switch) 3p-250A
Brand: all-electronics-online.com
SKU: 816029245
Availability: InStock
Rating: 4.9 (147 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	3P-250A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	CE
Speed:	Switches
Structure:	Switch
Poles Number:	1,2,3,4p
Type:	Switch
Function:	Disconnecting Switch

Product Description

Product Description
Free samples can be provided!!!
Electrical Features
Rated voltage Ue: 240/415V
Rated current ln: 125,160,200,250A
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Rated short-time withstand current lcw: 12le, 1s
Rated making and breaking capacity: 3le, 1.05Ue, cosφ =0.65
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. For 1min: 2.5kV
Insulation voltage Ui: 500V
Pollution degree: 2
Uilization category: AC-22A

Mechanical Features
Electrical life: 1, 500
Mechanical life: 8, 500
Protection degree: I P20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C

Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 50mm2 18-1/0AWG
Terminal size top/bottom for busbar: 50mm2 18-1/0AWG
Tightening torque 2.5 N*m 22In-Ibs.
Connection: From top and bottom
Dimensions(mm)

Shipping:
1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
1.We provide 1.5 year warranty.
2. Compensation will be paid if product had badly quality problem.

Yueqing Geshiman Electric, which specializes in manufacturing series of circuit breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business.

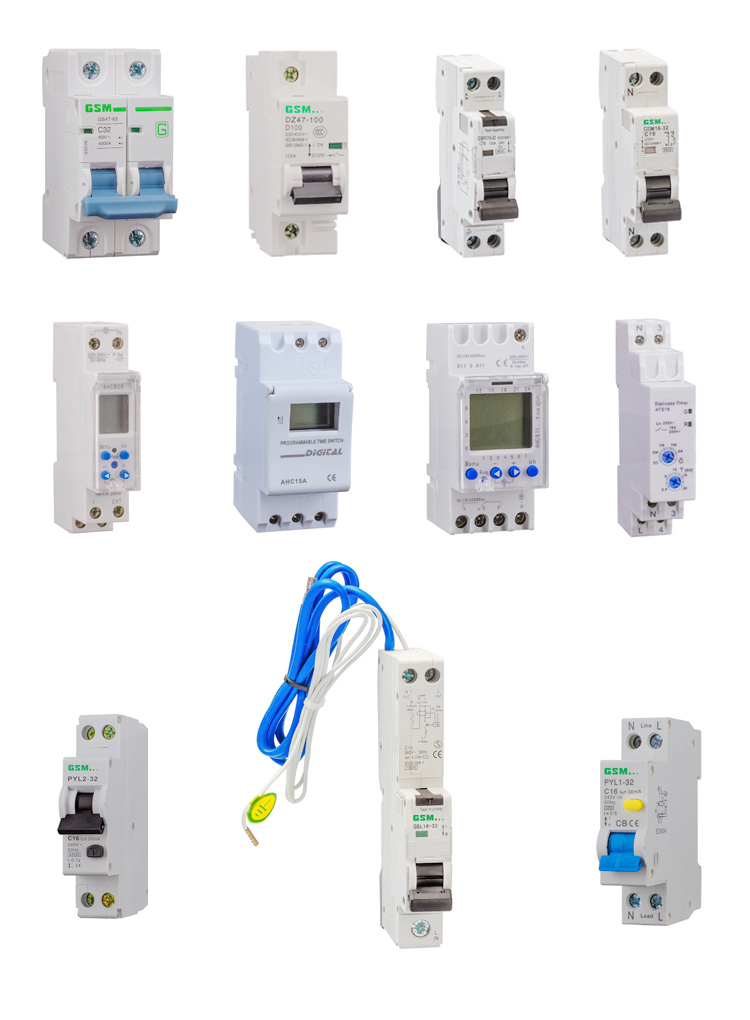

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, Mould case circuit breakers Push botton switches, isolator etc...Our products apply into high end of market in the world. The qualification of products reaches a MID and high level in China markets, and the quality is accepted by high end of market.

Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

We have more than 500 workers for production 8 engineers for quality control and technics. All of our product line are according the CE certficates and test reports.

For Business. We have experience to serve the famous brand in OEM. Our company is not very big but with the quality goods forever. We only make the quality parts. Welcome all of our customers or new friends feel free to visit our company.
