Isolating Switch with CE Certificate

Name: Isolating Switch with CE Certificate
Brand: all-electronics-online.com
SKU: 753836045
Availability: InStock
Rating: 4.9 (49 reviews)

Price:	US $ 9-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDT1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CE RoHS
Operation:	Manual
Series:	Three
Certification:	CE

Product Description

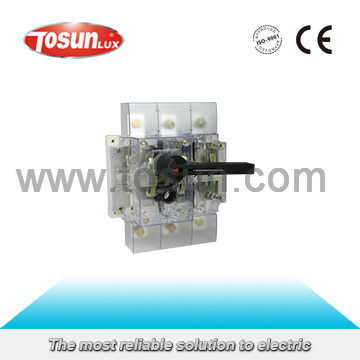

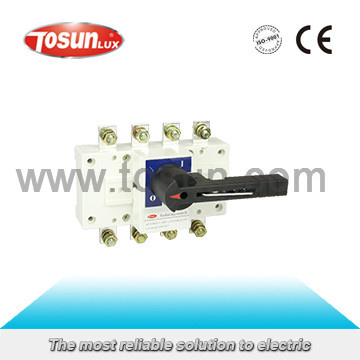

Application of HDT1 Isolating Switch 3P/4P

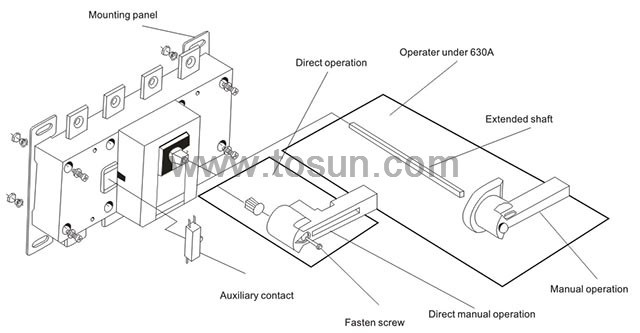

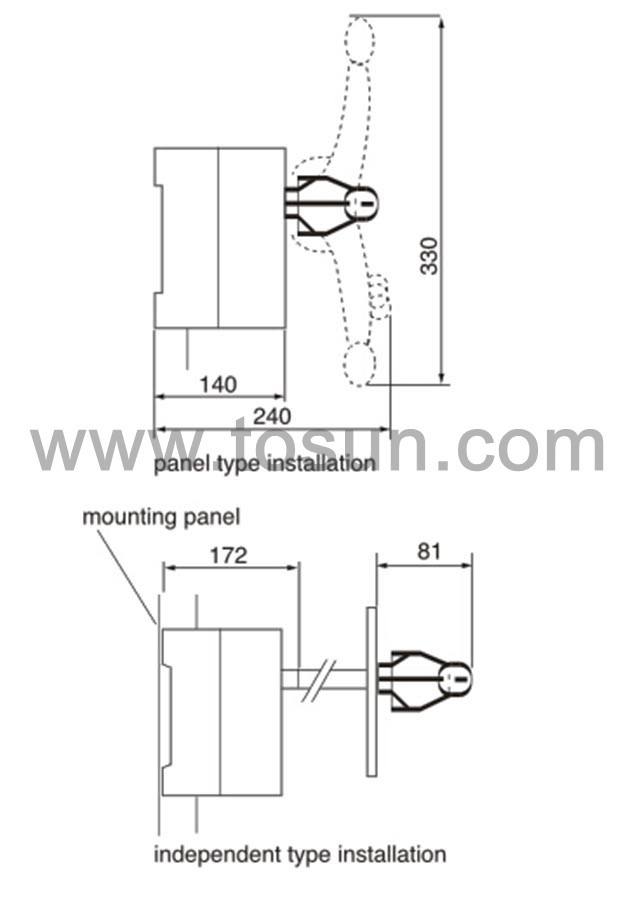

The products are suitabel for making and breaking power turn-circuit of voltage 415V, frequency 50/60Hz, rated current up to 1600A, acting as power switch, isolating switch and emergency switch. Because of special system of arc-contact and main-contact, HDT1 operates with high efficiency, safety and reliability, complying with IEC60947-3. Rotational operation and direct mechanical connection between handle and moving contact, on-off handle makes contact break and indicating place of contact. Panel and independent type installation are fitted with HDT1.

Specification of HDT1 Isolating Switch 3P/4P

Model			125	160	200	250	315
Number of Poles			3,4	3,4	3,4	3,4	3,4
Rated Insulation Voltage Ui(V)			750	750	750	750	1000
Dielectric Strength			5000	5000	5000	5000	8000
Rated Operational Current le(A)	380V	AC-21	125	160	200	250	315
		AC-22	125	160	200	250	315
		AC-23	125	160	200	250	315
Rated Making Capacity(A Rms) AC-23 380V			1000	1000	1600	1600	2500
Rated Breaking Capacity(A Rms) AC-23 380V			1250	1250	2000	2000	3150
Rated Short-circuit Making Capacity lcm(KA)			12	12	17	17	30
Mechanical Life(operations)			10000	10000	10000	10000	5500

Model			400	500	630	1000	1250	1600
Number of Poles			3,4	3,4	3,4	3,4	3,4	3,4
Rated Insulation Voltage Ui(V)			1000	1000	1000	1000	1000	1000
Dielectric Strength			8000	8000	8000	10000	10000	10000
Rated Operational Current le(A)	380V	AC-21	400	500	630	1000	1250	1600
		AC-22	400	500	630	1000	1250	1600
		AC-23	340	425	536	800	1000	1280
Rated Making Capacity(A Rms) AC-23 380V			3200	3200	3200	8000	8000	8000
Rated Breaking Capacity(A Rms) AC-23 380V			4000	4000	4000	10000	10000	10000
Rated Short-circuit Making Capacity lcm(KA)			30	40	40	70	70	70
Mechanical Life(operations)			5500	5500	5500	4000	4000	4000
