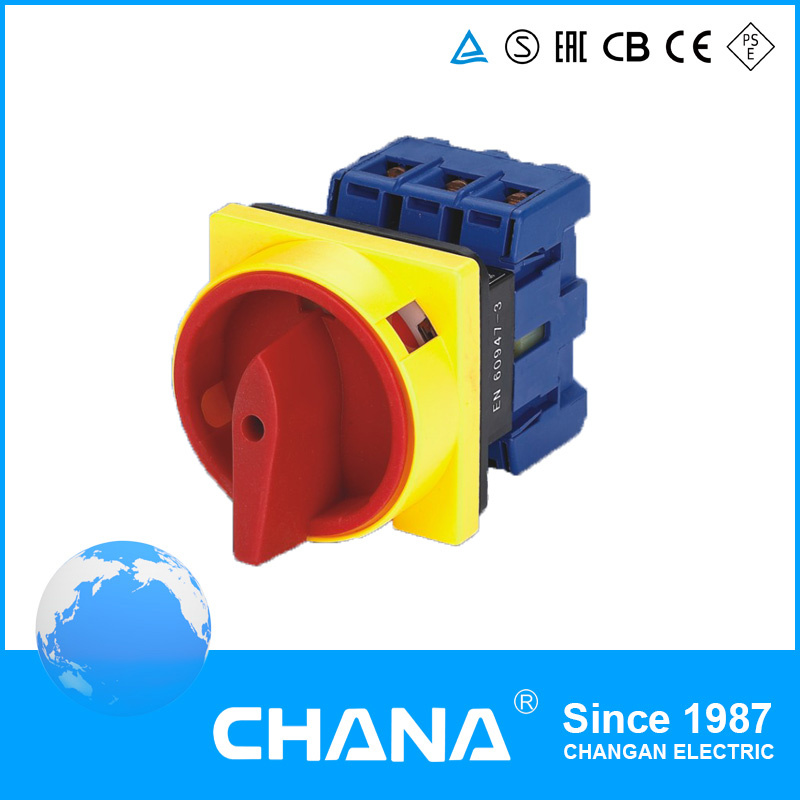

Isolation Rotary Switch with 6p DC/AC

Name: Isolation Rotary Switch with 6p DC/AC
Brand: all-electronics-online.com
SKU: 743387675
Availability: InStock
Rating: 4.4 (104 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	LW30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Plastic
Rotary Number:	Single Button
Usage:	Electrical Appliance
Standard:	Standard
Structure:	Self-Locking
Operation:	Open Type
Certification:	CE
Condition:	New

Product Description

Isolation Switch series LW30 6pole DC

Order Procedurer

When you order our LW 30 series, we need your data as following:
1. Rated owrking current, for example: LW 30-20
2. Accessorial code, please write it orderly
1) Number of pole: 1- 3P; 2-4P; 3-6P; 4-8P
2) Do you meed additional contacts: 0 without; 1 with
3) Do you need neatral terminal: 0 without; 1 with
4) Do you need earthing terminal: 0 without; 1 with
5)Way of installation:
1. Panel mounting with padlock
2. Panel mounting
3. With door interlock base mounting
4. With padlock handle/ door interlock base mounting
5. Bullet hole mounting
6)Type of box: 0- without; 1- with
7) Additional function: 0 - without; 1- with multithrow function; 2- with NO/NC auciliary contact

Description	Working current	Working voltage(DC)	MAX PV load voltage (DC)	Insulation voltage	connection wire diameter(mm)
LW30-20	16A	650V	750V	1000V	ø2.5
LW30-32	32A	500V	575V	1000V	ø4
LW30-40	32A	650V	750V	1000V	ø4.5
LW30-20	12A	800V	920V	1000V	ø2.5
LW30-32	25A	650V	750V	1000V	ø4

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
