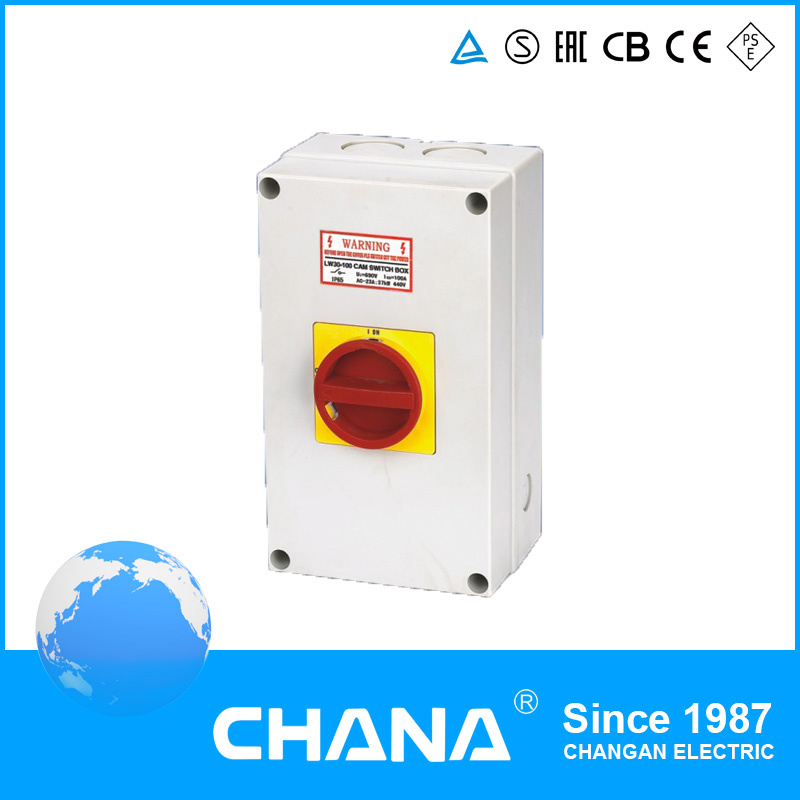

Isolation Switch IP65 Lw30-80 80A 3p/4p

Name: Isolation Switch IP65 Lw30-80 80A 3p/4p
Brand: all-electronics-online.com
SKU: 830567245
Availability: InStock
Rating: 5 (77 reviews)

Price:	US $ 20.16-21.78/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LW30-80
Material:	Plastic
Poles:	3/4p
Approval:	Ce
Export Market:	Global
Quality:	AAA
Type:	High-voltage
Structure:	Single-column Disconnector
Installation:	Indoor High-voltage
Operation:	Manual
Grounding:	Double Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	CE
Number Of Poles:	8 Pole
Brand:	Chana

Product Description

Description For LW30 Switch

Order Procedurer

When you order our LW 30 series, we need your data as following:
1). Rated owrking current, for example: LW 30-20
2). Accessorial code, please write it orderly
A) Number of pole: 1- 3P; 2-4P; 3-6P; 4-8P
B) Do you meed additional contacts: 0 without; 1 with
C) Do you need neatral terminal: 0 without; 1 with
D) Do you need earthing terminal: 0 without; 1 with
E) Way of installation:

Mounting and Fuction

1) Panel mounting with padlock
2) Panel mounting
3) With door interlock base mounting
4) With padlock handle/ door interlock base mounting
5). Bullet hole mounting
6) Type of box: 0- without; 1- with
7) Additional function: 0 - without; 1- with multithrow function; 2- with NO/NC auciliary contact

Specification

Description	LW30-25(20)	LW30-32	LW30-40	LW30-63	LW30-80	LW30-100
Rated thermal current Ith A	25(20)	32	40	63	80	100
Rated working voltage Ue V	240 440	240 440	240 440	240 440	240 440	240 440
Rated value le/Pe
AC-21A A/KW	20/- 20/-	32/- 32/-	40/- 40/-	63/- 63/-	80/- 80/-	100/- 100/-
AC-22A A/KW	20/- 20/-	32/- 32/-	40/- 40/-	63/- 63/-	80/- 80/-	100/- 100/-
AC-23A A/KW	15/4 15/7.5	22/5.5 22/11	30/7.5 30/15	43/11 43/22	57/18.5 57/30	70/22 70/37
AC-3 A/KW	11.7/3 11.7/5.5	15/4 15/7.5	22/7.5 22/11	36/11 36/18.5	43/15 43/22	57/18.5 57/30
Current type	50Hz
Number of main contact	ON and OFF
Frequency	8 hours per day, 30 timers per hour
Mechanism Life	10000 times/AC-23, 6000 times/AC-3, 2000 times for additional contact.

Overall and Mounting Dimension(mm)

Description	Dimension (mm)					Installation (mm)
Description	A	B	C	K	L	E	F	D1	D2
LW30-20	64	42	54	13.5	61	48	48	φ10	φ4.2
LW30-25	64	42	54	13.5	61	48	48	φ10	φ4.2
LW30-32	64	42	54	13.5	61	48	48	φ10	φ4.2
LW30-40	64	50	64	16	67	48	48	φ10	φ4.2
LW30-63	64	50	64	16	67	48	48	φ10	φ4.2
LW30-80	64	70	80	22.5	82	48	48	φ10	φ4.2
LW30-100	64	70	80	22.5	82	48	48	φ10	φ4.2

Dimension-2pg

Description	Dimension (mm)					Installation (mm)
Description	D3	D4	M	N	P	A1	A2	B	D2
LW30-20	ф23	ф19	85	83	160	150	--	--	φ4.2
LW30-25	ф23	ф19	85	83	160	150	--	--	φ4.2
LW30-32	ф23	ф19	85	83	160	150	--	--	φ4.2
LW30-40	ф29	ф23	100	95	190	178	--	--	φ4.2
LW30-63	ф29	ф23	100	95	190	178	--	--	φ4.2
LW30-80	ф37.5	ф23	144	105	250	--	229	124	φ4.2
LW30-100	ф37.5	ф23	144	105	250	--	229	124	φ4.2

Shipping:

1). Normally by SEA From NINGBO TO ...
2). Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3). We Provide Drop shipping Service.
4). In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5). Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:

1). We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2) .If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3). L/C also acceptable

Warranty:

1). We provide 18 months warranty.
2). If the product is defective, please notify us within 10 days of delivery.
3). All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

Our Services

A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.

C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.

FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
