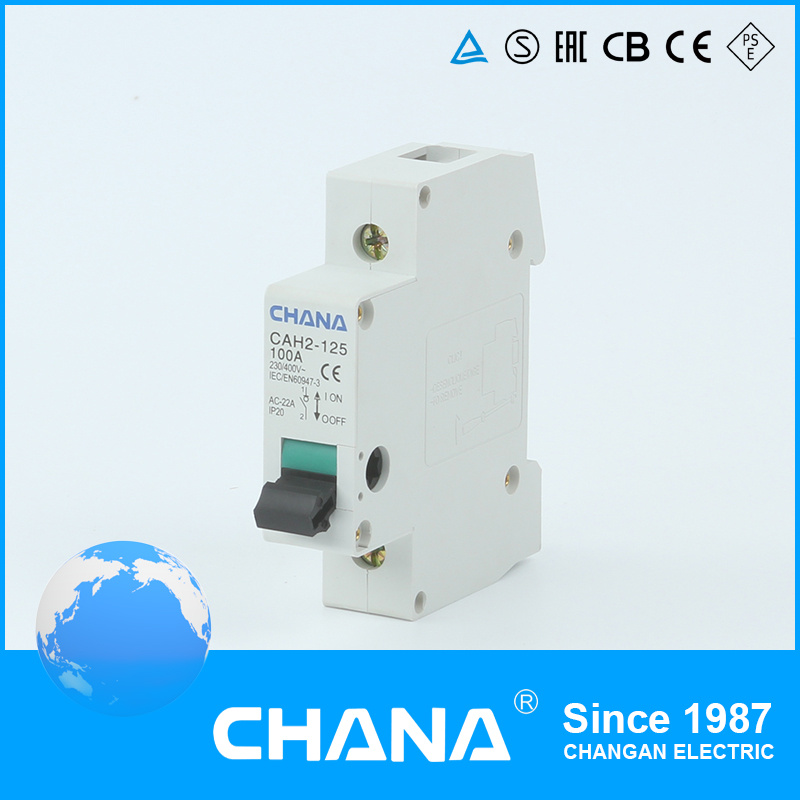

Isolation Switch with CE, CB Approval 1p

Prod Model:	CAH2-125 1P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Standard:	IEC60947-3; En60947-3
Pole:	1p
Approval:	Ce, CB
Max. Current:	125A
Brand Type:	Chana or OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	1
Certification:	CB
Structure:	Main Switch
Type:	Switch

Product Description

1. Technical Data


Electrical Features
Rated voltage Ue:	240/415V
Rated current le:	32, 40, 50, 63, 80, 100, 125A
Poles:	1P, 2P, 3P, 4P
Rated frequency:	50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp:	4, 000V
Rated short-time withstand current lcw:	12le, 1s
Rated making and breaking capacity:	3le, 1.05Ue, cos Φ =0.65
Rated short circuit making capacity:	20le, t=0.1s
Dielectric test voltage at ind. Freq. For 1min:	2.5kV
Insulation voltage Ui:	500V
Pollution degree:	2
Uilization category:	AC-22A

2. Mechanical Features

1) Electrical life: 1, 500
2) Mechanical life: 8, 500
3) Protection degree: I P20
4) Ambient temperature (with daily average35): -5º C...+40ºC
5) Storage temperation: -25º C...+70º C...



3. Installation

1) Terminal connection type: Cable/Pin-type busbar
2) Terminal size top/bottom for cable: 50mm2
3) Terminal size top/bottom for busbar: 50mm2
4) Tightening torque 2.5 N*m
5) Connection: From top and bottom
6) Dimension (mm)



4. Packing information

1) One pcs in one small carton box and then in export carton and the packing information is as below:


In	1P	2P	3P	4P
32A	180PCS/CTN	90PCS/CTN	60PCS/CTN	45PCS/CTN
40A
50A
63A
80A
100A
125A

2) Export carton with "CHANA" brand
3) Special packing requirement is acceptable for us.



5. Shipping:

1). Normally by SEA From NINGBO TO ...
2). Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3). We Provide Drop shipping Service.
4). In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5). Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
