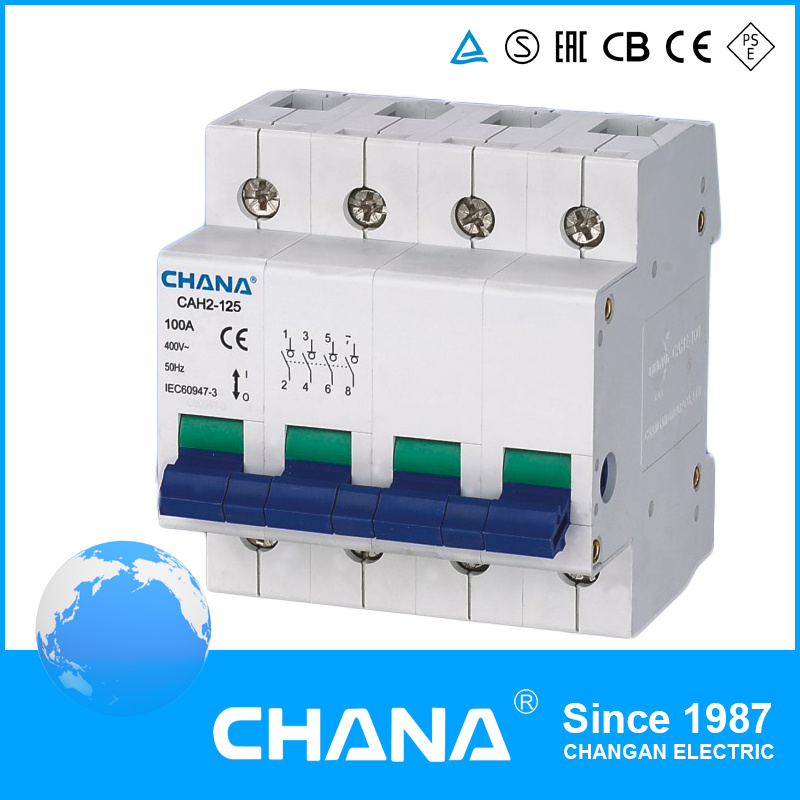

Isolation Switch with Ce, CB Approval 4p Cah2-215

Prod Model:	CAH2-125 4P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Standard:	IEC60947-3; En60947-3
Poles:	4p
Approval:	Ce, CB
Max. Current:	125A
Brand Type:	Chana or OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	4
Certification:	CB
Structure:	Main Switch
Type:	Switch
Function:	Switch

Product Description

1. Technical Data


Electrical Features
Rated voltage Ue:	240/415V
Rated current le:	32, 40, 50, 63, 80, 100, 125A
Poles:	1P, 2P, 3P, 4P
Rated frequency:	50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp:	4, 000V
Rated short-time withstand current lcw:	12le, 1s
Rated making and breaking capacity:	3le, 1.05Ue, cos Φ =0.65
Rated short circuit making capacity:	20le, t=0.1s
Dielectric test voltage at ind. Freq. For 1min:	2.5kV
nsulation voltage Ui:	500V
Pollution degree:	2
Uilization category:	AC-22A
Mechanical Features
Electrical life:	1, 500
Mechanical life	8, 500
Protection degree:	IP20
Ambient temperature (with daily average35):	-5ºC...+40ºC
Storage temperation:	-25º C...+70º C

2. Installation.

Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 50mm2
Terminal size top/bottom for busbar: 50mm2
Tightening torque 2.5 N*m
Connection: From top and bottom...


In (A)	QTY/CTN
32A	45pcs
40A	45pcs
50A	45pcs
63A	45pcs
80A	45pcs
100A	45pcs
125A	45pcs

3. Shipping

1). Normally by SEA From NINGBO TO ...
2). Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3). We Provide Drop shipping Service.
4). In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5). Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.




4. Payment:

1). We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2). If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3). L/C also acceptable



5. Warranty:

1). We provide 18 months warranty.
2). If the product is defective, please notify us within 10 days of delivery.
3). All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
