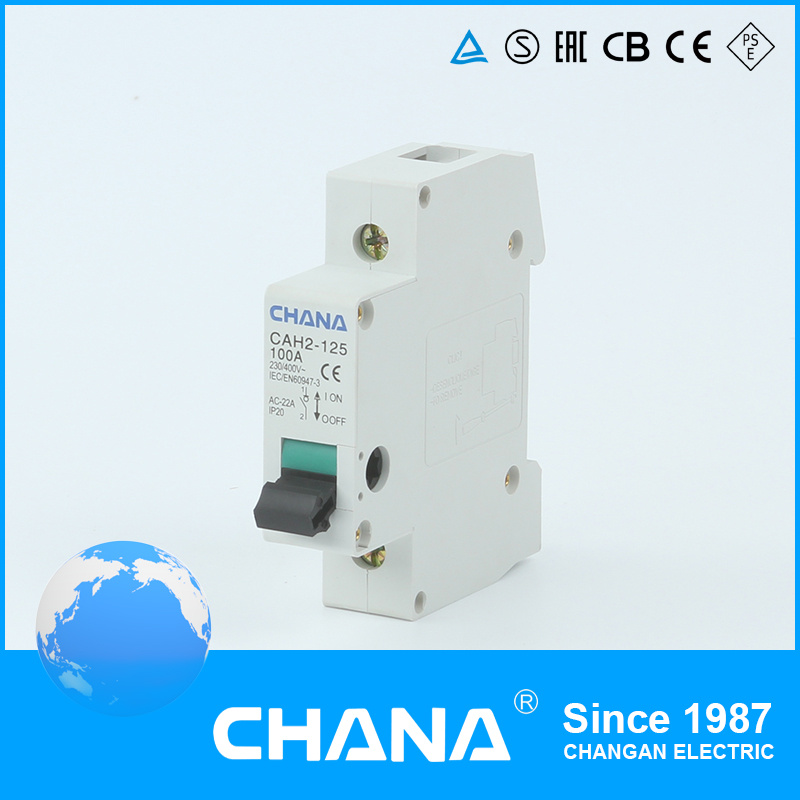

Isolation Switch with Ce, CB Certificates Cah2-125

Isolation Switch with Ce, CB Certificates Cah2-125
Price: US $ 0.55-0.6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: CAH2-125
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Standard: IEC60947-3; En60947-3
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Manual Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Certification: CB
Structure: Main Switch
Poles Number: 1p, 2p, 3p, 4p
Type: Switch

Product Description

1. Electrical Features


Rated voltage Ue240/415V
Rated current Ie32, 40, 50, 63, 80, 100, 125A
Poles1P, 2P, 3P, 4P
Rated frequency50/60Hz
Rated impulse withstand voltage (1.2/50) Uimp4,000V
Rated short-time withstand current lcw12le, 1s
Rated making and breaking capacity3le, 1.05Ue, cos Φ=0.65
Dielectric test voltage at ind. Freq. for 1min2.5kV
Rated short circuit making capacity20Ie,t=0.1s
Insulation voltage Ui500v
Pollution degree2
Uilization categoryAC-22A


2. Mechanical Features


Electrical life1,500
Mechanical life8,500
Protection degreeIP20
Ambient temperature (with daily average35)-5ºC...+40ºC
Storage temperation-25ºC...+70ºC


3. Installation

Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 50mm2
Terminal size top/bottom for busbar: 50mm2
Tightening torque 2.5 N*m
Connection: From top and bottom..

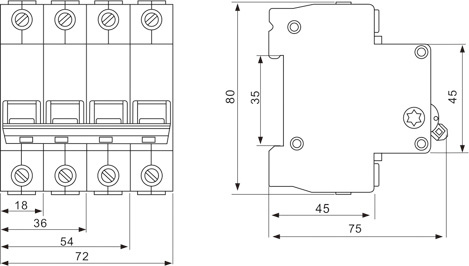

Dimension (mm)

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
