| Prod Model: |
RDH3-125 |
| Case Current Degree: |
125A |
| Enclosure Protection Class: |
IP20 |
| Rated Working Voltage: |
400V |
| Type: |
Low-voltage |
| Structure: |
Single-column Disconnector |
| Operation: |
Manual |
| Grounding: |
Single Ground |
| Series: |
Single-Stage |
| Run: |
Turn the Horizontal |
| Switching Mode: |
Double-Throw Type |
| Installation: |
DIN Rail |
| Number Of Poles: |
One |
| Certification: |
CCC |
| Brand: |
People |
Product Description

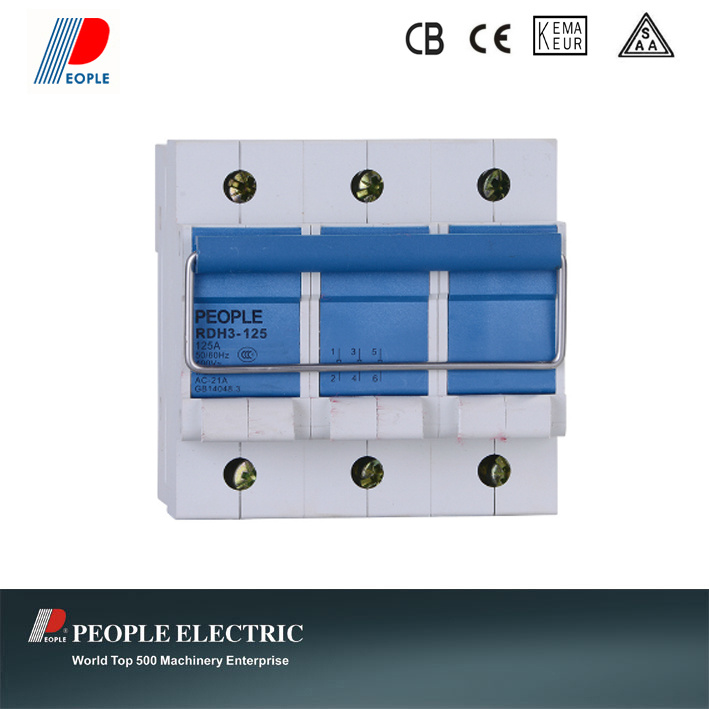

Application RDH3 series isolation switch is used in the circuit, AC50/60Hz, rated voltage 230V(1P, 2P), 400V(3P, 4P), rated current up to 125A. Mainly for circuit close or break with no load, as connection or isolation between circuit and power source. Especial suitable for effective isolation of power source to assure operation safety of inspection personnel against accidental close
The product complies with IEC60947-1 standard.
Normal working & installment conditions1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2.Installment plance altitude: ≤2000m
3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4.Pollution degree: 2 class
5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7.Mounted Category: II,III class.
Specification| Rated frequency | 50/60Hz |
| Rated current Ie | 16~125A |
| Case current class | 125A |
| According to standands | GB16916.1,IEC60947-1 |
| No load operation life | 8500 times |
| Normal load operation life | 1500 times |
| Rated working voltage Ue | 400V |
| Rated isolation voltage Ui | 400V |
| Rated shor-time withstand current Icw | 12Ie |
| Rated shortcircuit closing capacity Icm | 20Ie |
Packing and shipping-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before lading.
