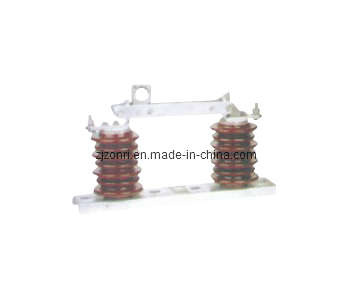

Isolator Switchgw9-10W/400

Isolator Switchgw9-10W/400
Price: US $ 1-100/Piece
Trade Terms: CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: GW9-10W/400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: High-voltage
Structure: Double-column Disconnector
Installation: Indoor High-voltage
Operation: Manual
Grounding: Single Ground
Series: Two

Product Description

Isolator switch is high voltage switch equipment of single phase AC50Hz. The product is suitable for power system with rated voltage 12kV to break power supply under circumstances of with voltage and nomload.
The isolator is adopts isolated hook rod to operate.

Type
GW9-10W/400GW9-10W/630
Rated Voltage(kV)1212
Rated current(A)400630
4S Heat steady current(A)12, 50012, 500
Shock steady current(A)31, 50031, 500
Impulse Withstand voltageTo earth7575
Across the isolating distance8585
Power-frequeny
Wihstand voltage
To earth3838
Across the isolating distance4242

Zhongrui Electric Co., Ltd. Located at Chinese Electric City'-Yueqing City, established 2000, own advanced manufacturing machines and complete measuring & testing equipments. We are a high technical enterprise that have succeed in turning produce, develop and sell together, one of the professional manufacturer for silicone rubber insulator in China, the member of Chinese Electrical Equipment Industry Association, one unit of National standard and technical committee of insulator, Yueqing city valuing contracts & promising enterprise, ISO2000: 2008 International Quality System Attestation enterprise, and established long-term cooperating relationship with the relevant scientific research institutions.

Our company specializes in the series products of composite insulator (power line, substation and electric railway series), composite dry wall bushing, lightning arrester and fuse cutout etc. All products are qualified by Ministry of Power Industry electric equipment quality inspection center and National Insulator & Lightning Arrester quality control test of inspection center, agreed with National industrial, IEC AND ANSI standard, and accreditation through State Power Corporation and China Machinery Industry Federation 'Two Ministry' new product and Zhejiang Province Scientific & Technological Hall, Province Electric Power Industry Bureau, Province Mechanical Industry Bureau federation authentication of new products of scientific & technical results. Product quality is insured by People's Insurance Company of China. Series of composite insulators and Zinc Oxide Arrester manufactured by our company, sharing the features of advanced design, reasonable structure, reliable performance, that achieve to the national leading level. Our silicone Rubber insulator used on high-voltage line had been placed 'National Star plan' by Chinese Technical department, Composite Cross-arm Insulator had been honored City Technical Metal; And we are the first private enterprise that got KEMA test report for Composite Insulator and Arrester in China. Our products sell well through all parts of the country, as well as finding good markets in Iran, Indonesia, Vietnam, Kampuchea, Syrian, Korean, Canada etc., gaining favorable comments of domestic and abroad users.

We can designand produce all type composite Insulators as per user's requirement. Warmly welcome old and new customers visit our company. We try our best to develop the best products at highvoltage products basic with "toward excellence for creditable brand"

ZONRI company will go ahead together with you and cooperate with you in sincerely.
