Shenzhen Sino-Australia Refrigeration Equipment Co., Ltd. >> Italy Original Idplus 974 Eliwell Temperature Controller for Showcase

Italy Original Idplus 974 Eliwell Temperature Controller for Showcase

Italy Original Idplus 974 Eliwell Temperature Controller for Showcase
Price: Negotiable/Piece
Min Order: 20/Piece
Pay Type: L/C,T/T
Prod Model: IDPlus 974
Internal: External
Control Type: Digital
Type: Temperature Controller
Control Method: Electronic Type
Operating Principle: Compression Refrigeration Equipment
Cooling Purpose: Cold Storage
Material: Plastic

Product Description



Eliwell Temperature Controller Features

Fast, easy installation
Direct power supply 230V
Standard parameter-selectable PTC or NTC temperature probes.

Eliwell Temperature Controller Technical Parameters
Frontal panel protectionIP65
Casingplastic body in resin type
PC+ABS UL94 V-0, inspection window in polycarbonate, buttons in thermoplastic resin
Dimensionsfrontal panel 74x32 mm, depth 60 mm
Installation on panel, with drilling tem- plate 71x29 mm (+0.2/-0.1 mm)
Use temperature -5...55 °C.
Storage temperature-30...85 °C
Use environment humidity10...90 % RH (not condensing)
Storage environment humidity10...90% RH (not condensing)
Viewing range-50...99 °C on 2 digit (and a half) + mark display
Analogue inputsone PTC or NTC input (selectable through parameter)
Serial TTL for connection to Copy Card
Digital outputs one relay output, SPDT 8(3)A 250Va relay
Measuring rangefrom -50 to 99 °C
Accuracy0.5% better than end scale + 1 digit
Resolution1°C
Consumptionmodel 230V: 3 VA max.
model 12V: 1,5 VA max.
Power supply12 Va/c ±10% or 230Va ±10% 50/60 Hz

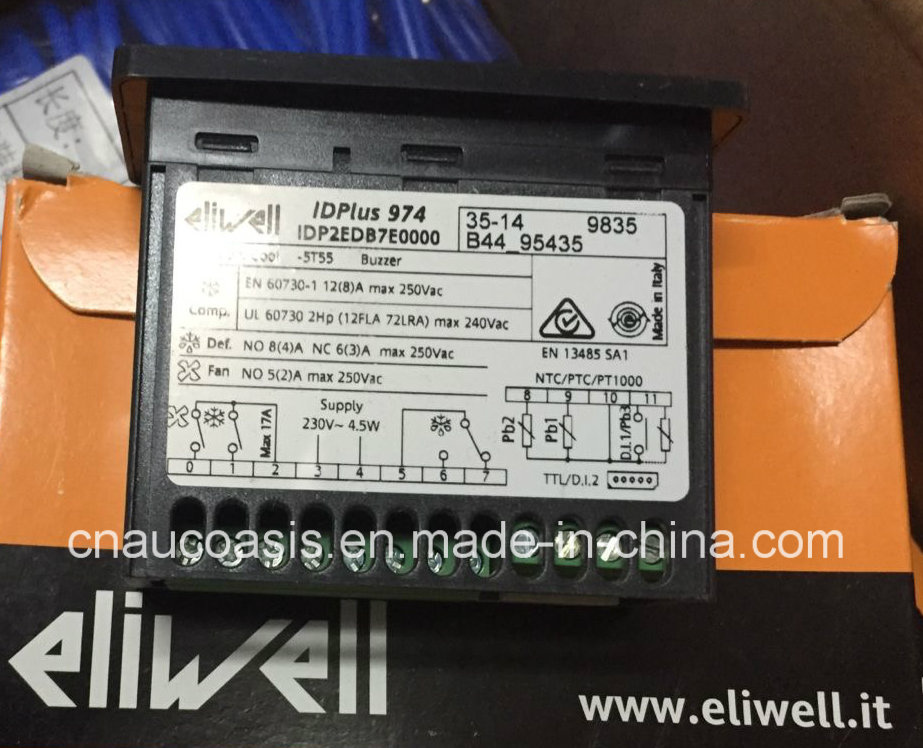

Eliwell Temperature Controller Wiring
