ITG O2 Oxygen Sensor Lead Free Industrial Sensor 1-10, 000 Ppm O2/P-41

Name: ITG O2 Oxygen Sensor Lead Free Industrial Sensor 1-10, 000 Ppm O2/P-41
Brand: all-electronics-online.com
SKU: 837453635
Availability: InStock
Rating: 4.6 (116 reviews)

Price:	US $ 12-120/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	O2/P-41
Output:	TTL/4-20mA/RS485
Transmitter Board:	Integrated/Seperated
Wire:	Two or Three Wire
Detecting Range:	Selectable
After Sale Service:	Yes
Material:	PVDF, PTFE, Stainless Steel

Product Description

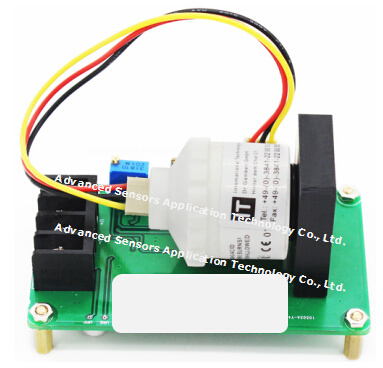

ITG O2 - Industrial Sensor / Type P-41

Sensor designed to detect trace amounts of oxygen.

All characteristics are based on conditions at 25°C, 50% RH and 1013 hPa

Key Feature

Measurement Range	1 to 10,000 ppm O2
Sensor Lifetime	1 years, depending on humidity and O2 concentration
Electrical Connector	2x slip-rings on PCB
Initial Output Signal	460μA ± 120μA ambient air
Response Time( in operation)	<180 s from 10,000 ppm down to 1000ppm <10 min from 1,000 ppm down to 250 ppm <5 h from 10 ppm down to <1 ppm
Operating Temperature	0 to 50ºC
Pressure Dependency	partial pressure
Linearity Error	±2 % of signal
Temperature Compensation	none
Temperature Coefficients	Pcoe(X)=Ax3+Bx2+Cx+D A=2.01 E-06 B=-2.60 E-05 C=1.70 E-02 D=5.61 E-01 example: signal @ T[ºC]=signal @ 25ºC x Pcoe @ T[ºC] signal @ (0ºC)=signal @ 25ºC x 0.561
Weight	approximately 35 g
Material in Contact with Media	PVDF, PTFE, stainless steel

Storage Condition

Packaging	air tight coated plastic bag
Temperature Range	recommended: 5 to 30 °C maximum: 0 to 45 °C
Humidity	up to 100 % RH
Shelf Life	<3 months recommended
Ambient Pressure	600 to 1750 hPa

Oxygen Module Parameters

Module type	GM-I2(3)-M/C/S--**/G/P/F/FL
Detected gas	Toxic gas
Detecting principle	Electrochemistry
Sampling	Diffusing pump flange thread
Responding time	30s~40s(of the sensor)
Module accuracy	≤±3%FS(actual concentration, higher accuracy depends on specified sensors)
Module repeatability	≤±2% FS
Module linear error	≤±2% FS
Module zero temperature drift	≤±2% (FS/year)
Module operating temperature	-40~80°C
Module humidity	0-95%RH(non-condensation)
Sensor operating temperature	-20°C~50°C
Sensor humidity	0-90%RH(non-condensation)
Signal output	TTL/4-20mA /RS485 (two or three wire)
Transmitting distance	1000 meters(RS485)
Operating voltage	DC 12-36V
Maximum power	≤0.8W
Size	80*48mm
Explosion proof	Intrinsic safe
Connection cable	RVVP3 x 1.5mm²

Oxygen Module Applications
Petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking, leak detection, safety and environmental control

Company introduction

Advanced Sensors Application Technology Co., Ltd. Was established on 2003. We are passionate about delivering high quality gas sensor products to our customers. Focus on customized manufacturing, we supply widely to many key industries through our diverse and state-of-art facilities. We have a technician team to support in material designs and testing to international standards meeting customers' requirements.

Products are widely used in petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking.
