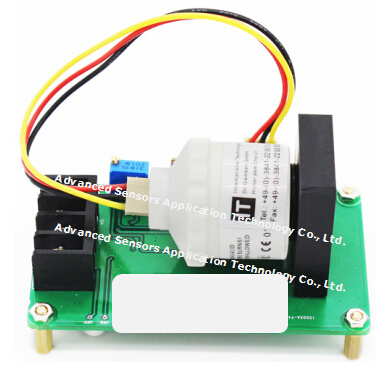

ITG O2 Oxygen Sensor Medical Sensor Respirator Oxygen Generator 0-100 Vol% O2/M-80

Name: ITG O2 Oxygen Sensor Medical Sensor Respirator Oxygen Generator 0-100 Vol% O2/M-80
Brand: all-electronics-online.com
SKU: 837970205
Availability: InStock
Rating: 4.7 (135 reviews)

Price:	US $ 12-120/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	O2/M-80
Output:	TTL/4-20mA/RS485
Transmitter Board:	Integrated/Seperated
Wire:	Two or Three Wire
Detecting Range:	Selectable
After Sale Service:	Yes
Material:	PA, PPS, PTFE, Stainless Steel

Product Description

Sensor Key Feature

Dual-cathode type that shows high signal stability at low cross interferences to anesthesia gases combined with superior linearity over the entire range.

All characteristics are based on conditions at 25ºC, 50% RH and 1013 hPa.

Measurement Range	0 to 100 Vol.%
Expected Operating Life	>750,000 Vol.% h
Sensor Lifetime	<3 year @ dry ambient air
Electrical Connector	3-pin Molex®
Initial Output Signal	11.0 to 14.0 mV @ dry ambient air
Output Signal Difference	1.25 to 1.6 mV @ dry ambient air
Response Time t90	< 12 s @ flow rates of 0.2 to 2.01/min
Drift	< 1 % Vol. O2/month@ air, averaged across 12 months
Operating Temperature	10 to 40 °C
Pressure Range	700 to 1250 hPa
Linearity Error	≤2% @100 % O2, applied for 5 min
Zero Offset Voltage	≤200 μV in 100 % N2, applied for 5 min
Repeatablity	± 1 % volume O2 @ 100 % O2 applied for 5 min
Influence of Humidity	- 0.03 % rel. O2 reading per % RH
Recommended Load Resistor	≥ 10 kOhm
Temperature Compensation	NTC
Interferences	according to DIN EN ISO 80601-2-55
Weight	approximately 25 g
Material in Contact with Media	PA, PPS, PTFE, stainless steel

Sensor Storage Conditions

Temperature Range	recommended: 5 to 30 °C maximum: -20 to 50 °C (≤10h)
Humidity	up to 100 % RH, non-condensing
Shelf Life	< 3 months recommended

Oxygen Module Parameters

Module type	GM-I2(3)-M/C/S--**/G/P/F/FL
Detected gas	Toxic gas
Detecting principle	Electrochemistry
Sampling	Diffusing pump flange thread
Responding time	30s~40s(of the sensor)
Module accuracy	≤±3%FS(actual concentration, higher accuracy depends on specified sensors)
Module repeatability	≤±2% FS
Module linear error	≤±2% FS
Module zero temperature drift	≤±2% (FS/year)
Module operating temperature	-40~80°C
Module humidity	0-95%RH(non-condensation)
Sensor operating temperature	-20°C~50°C
Sensor humidity	0-90%RH(non-condensation)
Signal output	TTL/4-20mA /RS485 (two or three wire)
Transmitting distance	1000 meters(RS485)
Operating voltage	DC 12-36V
Maximum power	≤0.8W
Size	80*48mm
Explosion proof	Intrinsic safe
Connection cable	RVVP3 x 1.5mm²

Oxygen Module Applications
Petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking, leak detection, safety and environmental control

Company introduction

Advanced Sensors Application Technology Co., Ltd. Was established on 2003. We are passionate about delivering high quality gas sensor products to our customers. Focus on customized manufacturing, we supply widely to many key industries through our diverse and state-of-art facilities. We have a technician team to support in material designs and testing to international standards meeting customers' requirements.

Products are widely used in petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking.
