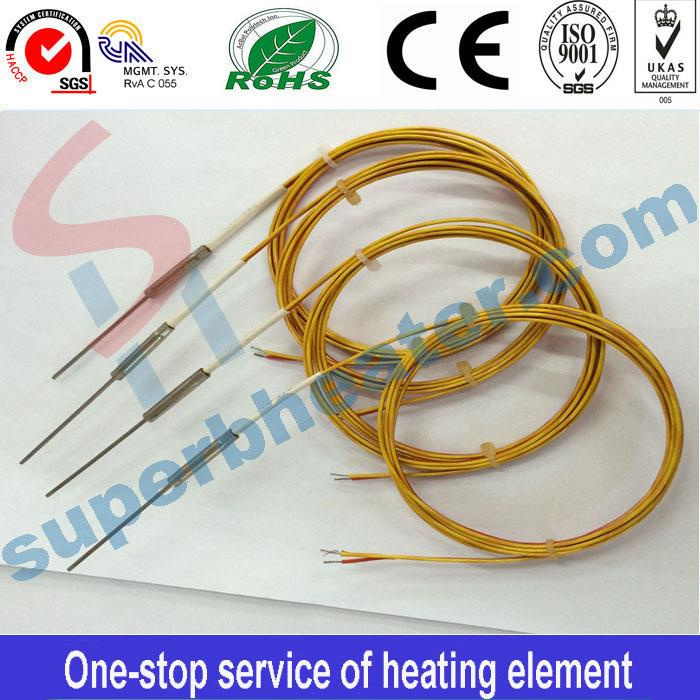

J Type K Type Hot Runner Thermocouple Temperature Controller
| Price: |
Negotiable/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
J Type K-Type Thermocouple |
| Theory: |
Temperature Sensor |
| Product: |
Thermocouple Probe |
| Probe Dia: |
0.5mm to 10mm/ Can Be Customized |
| Max Temperature: |
1600c |
| Lead Wire Insulation Material: |
Stainless Steel/ Brass/ Aluminum Alloy |
| Connection: |
Female |
Product Description
- J Type K Type Hot Runner Thermocouple Temperature Controller
- Product Details
Superb Heater Technology has been focused on the production of j type k-type hot runner temperature thermocouple since 1985, which is well-known as one of the leading manufacturers and suppliers of j type k-type hot runner temperature thermocouple. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Product Description
Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature.The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
MODEL:
| Thermocouple & rtd |
| Ref No. | WR | Temp |
| Thermal element materials | B: PtRh30-Pt6
R: PtRh13-Pt
S: PtRh10-Pt
N: NiCrSi-NiSi
K: NiCr-NiSi
E: NiCr-CuNi
J: Fe-CuNi
T: Cu-CuNi | 0~1600C
0~1300C
0~1300C
0~1000C
0~900C
0~600C
0~500C
0~350C |
| Ref No. | WZP | Temp |
| | PT100
PT1000
CU50 | -200~+650C
-200~+650C
-200~+650C |
| Pairs quantity of sensor wire | Simplex
Duplex |
| Ways of Mounting & Fixing | 1:without fixing device
2:fixed thread
3: movable flange
4: fixed flange
5: right-angle movable flange
6:fixed thread in wimble shape protection tube |
| Types of connections box | 2: anti-spray (Protection class: IP65)
3: water-proof (Protection class: IP55) |
| Types of sensor end | G: variable section
K: sheathed elements
T: flexible sheathed elements |
| Diameter of protection tube | 0:¢16
1:¢20
2:¢16 high aluminum material
3:¢20high aluminum material |
| Measuring range | 0~1600 degree Celsius |
| Shipping | By air, sea, express |
| Sample time | 2~7 days |
| Manufacture time | 7~30 days depending on order quantity |

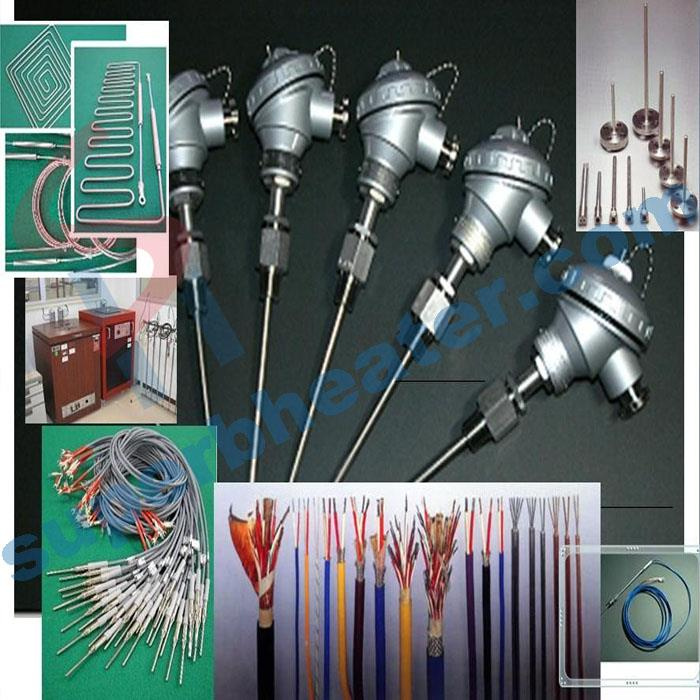

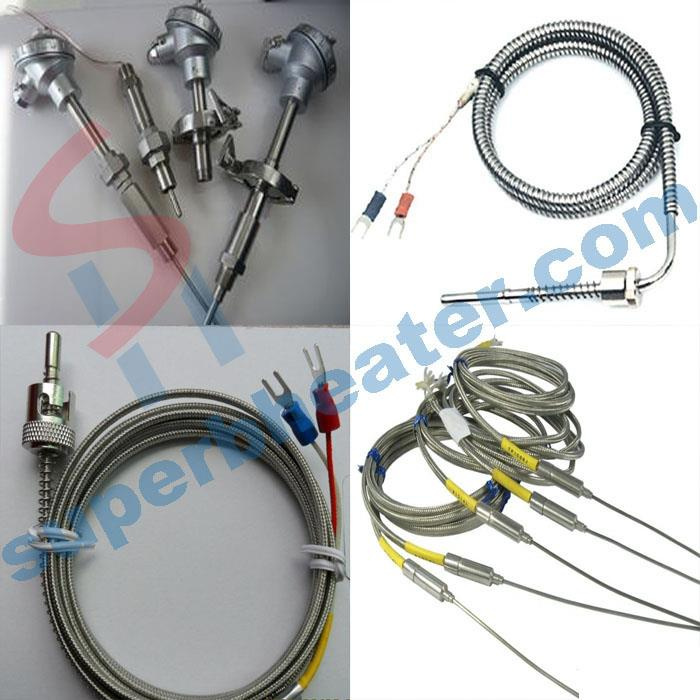

Detailed Images:
