J14b Series Rectangular Connectors

Name: J14b Series Rectangular Connectors
Brand: all-electronics-online.com
SKU: 752509795
Availability: InStock
Rating: 4.5 (76 reviews)

Price:	US $ 40.5-44.98/Set
Trade Terms:	FOB
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

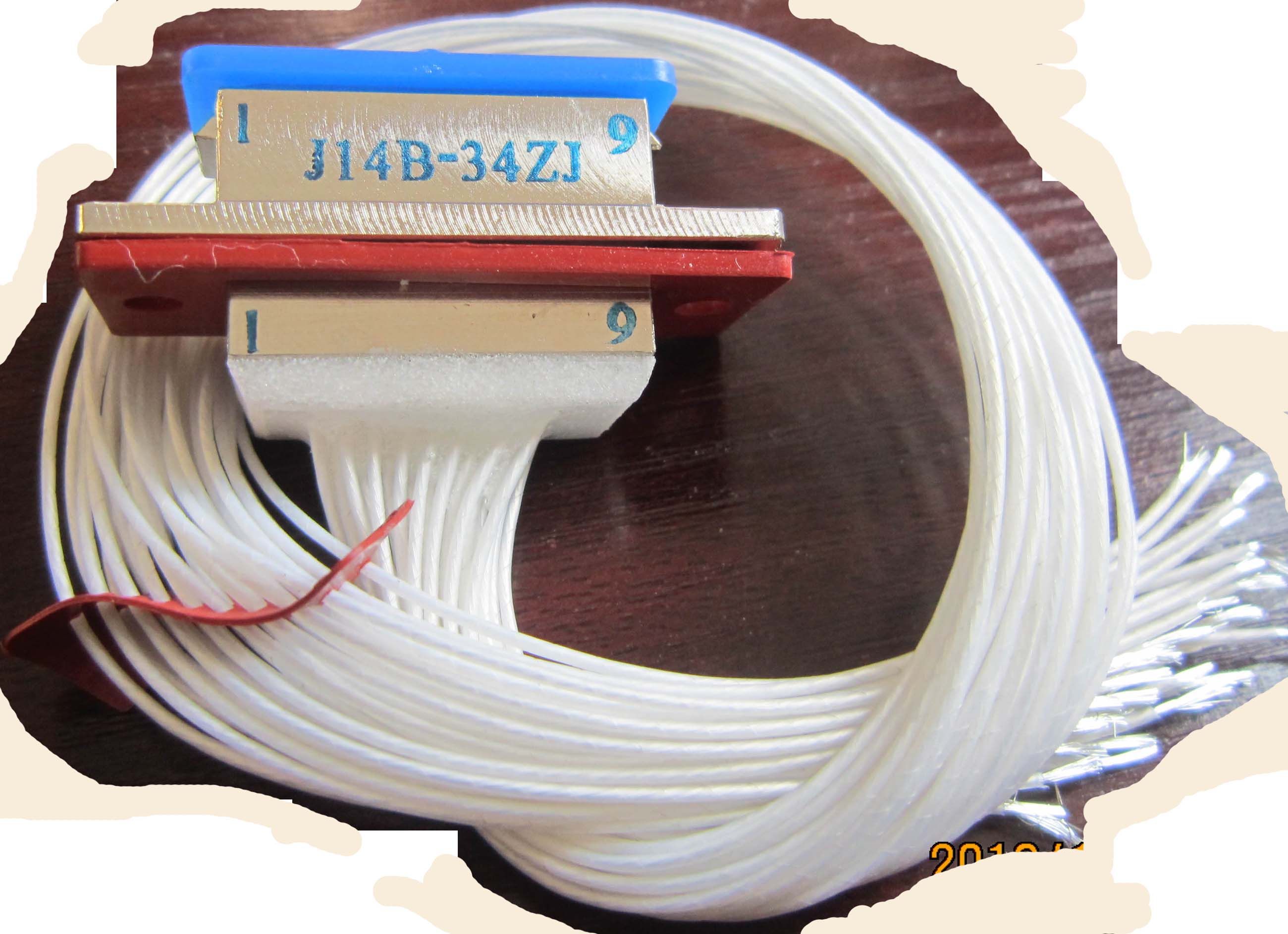

Prod Model:	J14B-34ZJ+0.2m wires
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	J14
Type:	Dual Hole Terminals
Material:	Aluminum
Application:	Transmission of Electrical Signals
Certification:	RoHS
Brand:	Kaipu

Product Description

J14 series of products for the low-frequency electrical connectors, J14M to low magnetic type, with GJB142A-94 standard, double-locking structure insurance, fillet Prevention Chap design, termination of welding, is small in size, light weight characteristics, widely used in strategic weapons systems, NASA satellite systems,

elctronic instruments, meters and the connecting cables.
1, Mainly technical performance
1, Mechanical properties
Shell: High strength aluminum alloy,
Insulator: Heat-resistant thermo plastic materials
Shell plating: Electrolee nickel
Contacts: Copper alloy, gold plated
Rubber pieces: Silicone rubber materials
Mechanical life: 500 cycles.

Introduce:

Type		Number of contact	L	A	B	C	D	E	d	Mount height	weight(g)		Current rating
Type		Number of contact	L	A	B	C	D	E	d	Mount height	Pin	Hole	Current rating
J14A-n	TK TJ ZKB ZKL ZJL ZJB	9	22	6.6	15.2	12	28	17	3	42	11.7	4.3	3A
		15	28	6.6	21.2	12	34	23	3		13	5.3	3A
		26	34	10	25	16	41	28.2	3.5		24	10	3A
		38	42	10	33	16	49	36.2	3.5		28	14.6	3A
		51	52	10	43	16	59	46.1	3.5		31	15	3A
		62	58	10	49	16	65	52.2	3.5		34	15.6	3A
		74	54	12	45	18	61	47.4	3.5		35.7	17	3A
J14C-n		26	42	10	33	16	49	36.2	3.5		27	13	5A
J14D-n		15	34	10	25	16	41	28.2	3.5		22	10.5	2: 10A 13: 3A
J14G-n		8	34	10	25	16	41	28.2	3.5		20	9.5	4: 10A 4: 3A

Notes : 'n' is the contact number

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
