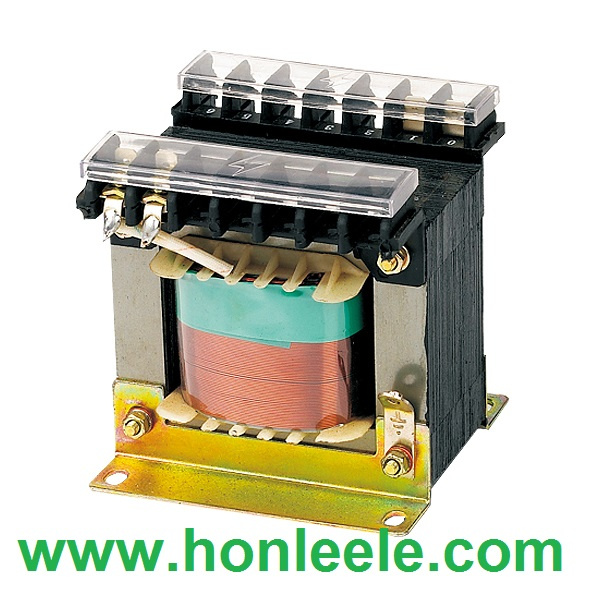

Jbk3-40 Series Machine Tools Control Panel Power Transformer

Name: Jbk3-40 Series Machine Tools Control Panel Power Transformer
Brand: all-electronics-online.com
SKU: 813405705
Availability: InStock
Rating: 4.5 (142 reviews)

Price:	US $ 9.8-13.8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JBK3, BK
Delivery:	15days After Received Deposit
Application:	Lighting
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Certification:	Ce
Usage:	Power Supply
Frequency Characteristics:	Industrial Frequency
Brand:	Honle

Product Description

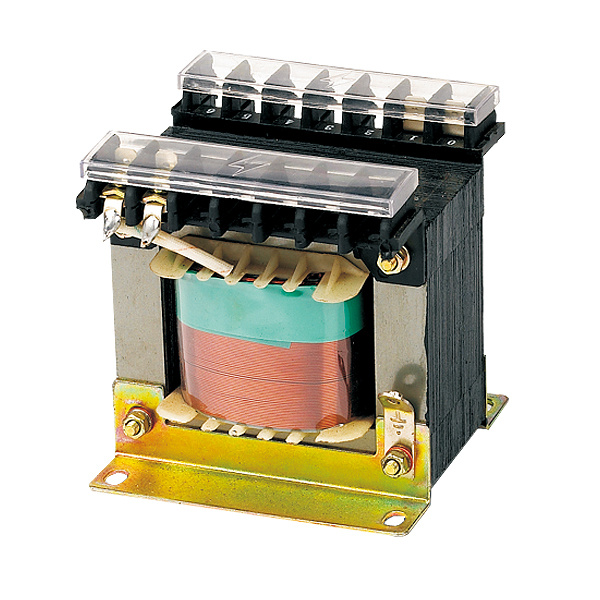

JBK Machine Control Transformer

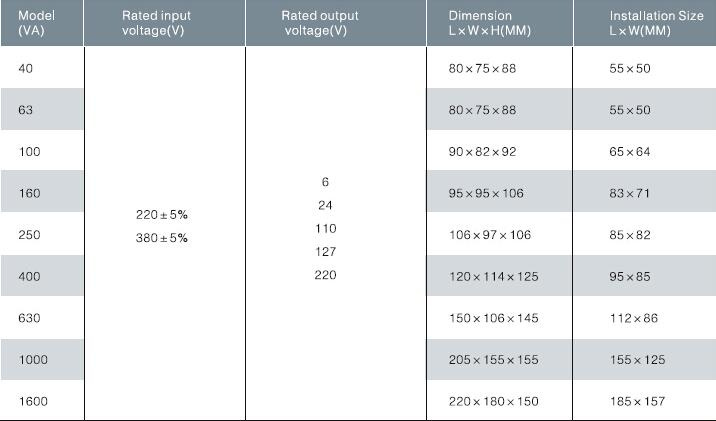

TECHNICAL INDEX

Type	Rated power (VA)	Rated input voltage(V)		Rated output voltage(V)
JBK3-40	40	Rated input voltage(V)		Control		illumination		indication
JBK3-63	63	400/380±5%		220/110(127)		24(36)		6(12)
JBK3-100	100
JBK3-160	160
JBK3-250	250
JBK3-400	400
JBK3-630	630
JBK3-800	800
JBK3-1000	1000
JBK3-1600	1600			Distribution of capacity for different windings
JBK3-2500	2500			should be according to the users requirements

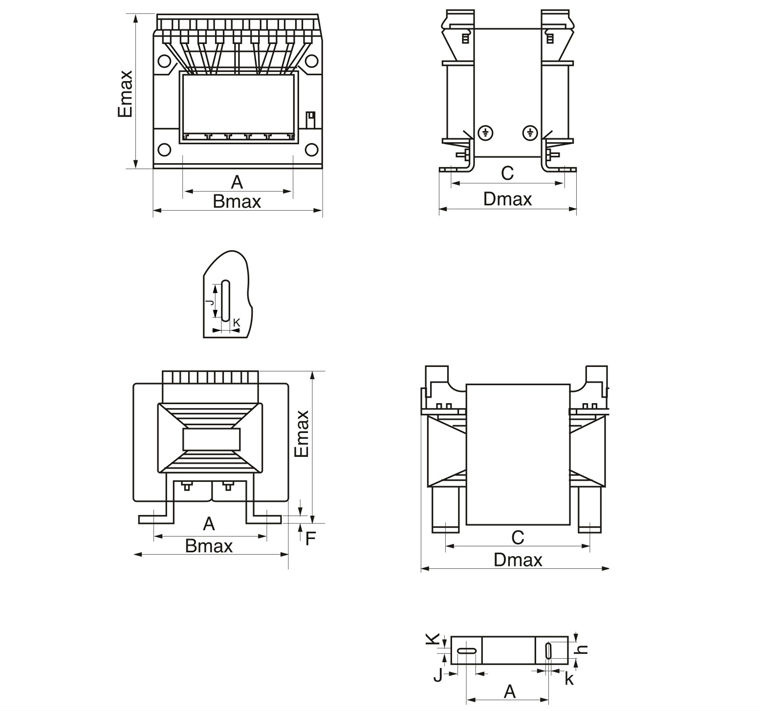

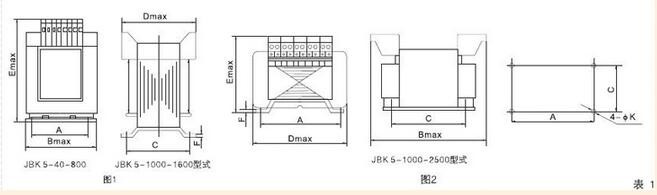

Type	Rated power (VA)	Installing dimensions		Outline dimensions				Cavity
Type	Rated power (VA)	A	C	B	D	E	F	K or K×J
JBK3-40	40	56±0.5	51±2	78	70	86	2	4.8×9
JBK3-63	63	56±0.5	51±2	78	70	86	2	4.8×9
JBK3-100	100	64±0.5	67±2	85	85	93	2	4.8×9
JBK3-160	160	84±0.5	74±2	96	90	103	2	5.8×11
JBK3-250	250	84±0.5	88±2	96	105	103	2	5.8×11
JBK3-300	300	84±0.5	96±2	96	115	103	2	5.8×11
JBK3-400	400	90±0.5	90±2	120	113	123	2.5	7×13
JBK3-630	630	122±0.5	86±2	150	118	145	2.5	7×13
JBK3-800	800	122±0.5	100±2	150	128	145	2.5	7×13
JBK3-1000	1000	127.5±2	152±2	155	205	145	3	7×12
JBK3-1600	1600	140±2	176±2	180	230	160	3	7×12
JBK3-2500	2500	173±2	200±2	205	260	175	4	7×12

FAQ

Q1:Would you accept to use our logo ?
A1: If you have good quantity,it's absolutely no problem to do OEM.

Q2: Can your product be customized?
A2: No problem. We have 5 senior engineers in our R&D Dept. and can design the product according to your special requirements.

Q3: How about the quality of your product?
A3: All the product have passed CE certification and ISO9001 quality management system certification. The professional technical ability, high quality components and strict testing procedure can ensure the quality of the product.
