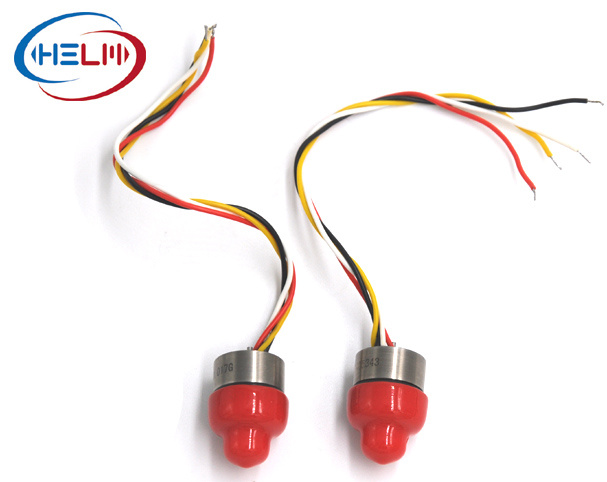

Product Description

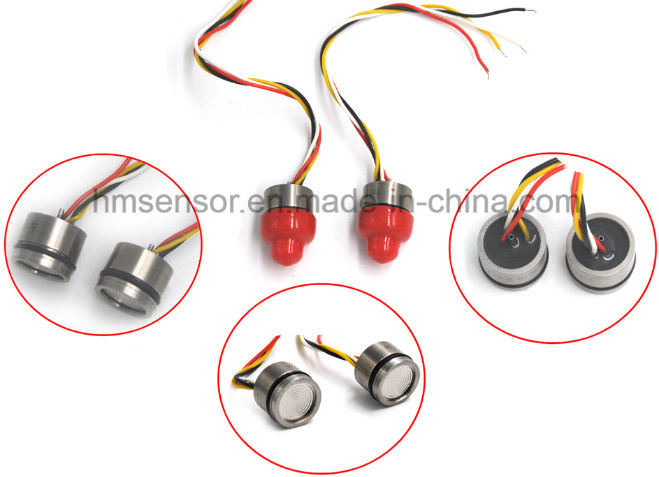

Description JC-CG01 series piezoresistive pressure sensors adopt high-sensitivity piezoresistive silicon chip inside for pressure sensing. The chip is protected against ambient influences by a stainless steel housing sealed with a concerntrically corrugated diaphragm. The housing is filled with silicone oil for the transfer of the pressure from the diaphragm to the sensing component, exchanging the pressure into mV electrical output signal.
Features and ApplicationFeature Application*Pressure range (-0.1~60)Mpa; * Industrial process control
*Pressure type: Gauge, absolute and sealed gauge; * level measurement
*Diameter 19mm; * Gas, liquid pressure measurement
*316L stainless steel material; * Pressure meter
*Constant current power supply; * Pressure calibrator
*Isolated construction to measure various media; * Liquid pressure system & switch
*OEM pressure element * Refrigeration equipment & air conditioner
*Perfect long term stability. * Aviation and navigation inspectionSpecification| Parameters | MIN. | TYP. | MAX. |
| Linearity %FS, BFSL | | ±0.15 | ±0.25 |
| Repeatability %FS | | ±01 | |
| Hysteresis %FS | | ±0.05 | ±0.1 |
| Zero output mV DC | | ±2 | |
| FS Output mV DC | 50 | | |
| Zero thermal error %FS/ºC | ±0.02 | | |
| FS Thermal error %FS/ºC | ±0.03 | ±0.75 | 1.5 |
| Compensated temperature ºC | | -10~70 | |
| Storage temperature ºC | | -20ºC~65ºC | |
| Stability %FS | | ±0.2 | ±0.3 |
| Electric Performance | Power supply | 1.5mA (typ) |
| Electric connection | Kovar pin or 100mm silicon rubber flexible wires |
| Input impedance | 2kΩ~6kΩ |
| Output impedance | 2kΩ~6kΩ |
| Insulation resistor | 250MΩ/250VDC |
| Overpressure | <6MPa,2times FS;(6~60)Mpa,1.5times FS;Differential pressure or Low pressure range,1.3times FS |
| Pressure type | G: Gauge; A: Absolute; S: Sealed gauge |
| Media compatibility | The gas or liquid which is compatible with construction material and Viton |
| Impact | 100g(11ms) |
| Position | Deviate 90° from any orientation, zero change ≤0.05%FS |
| Construction | Diaphragm | stainless steel 316L |
| Housing | stainless steel 316L |
| Pin | Kovar |
| O-ring | Viton |
| Net weight | 30g (general type);50g(flush diaphragm);150g(assembled type) |
Remark| 1. Best fit straight line. |
| 2. Measured at vacuum for absolute (A), ambient for gage (G). |
| 3. Maximum temperature range for product with standard cable is -20°C to +105°C. |
| 4. Over the compensated temperature range with respect to 25°C. |
| 5. Load resistance to reduce measurement errors due to output loading. |
| 6. Between case and sensing element. |

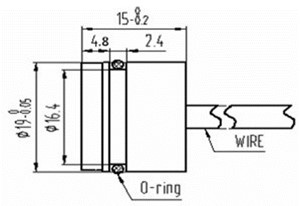

Dimensions(mm)
Ordering information| JC-CG01 Piezoresistive OEM Pressure Sensor |
| Model | Descrption |
| JC-CG01 | Dia. Φ19mm |
| | Code | Pressure range | Pressure type |
| | 17K | 17KPa | G |
| | 35K | 35KPa | G |
| | 70K | 70KPa | G |
| | 100K | 100KPa | G,A |
| | 200K | 200KPa | G,A |
| | 350K | 350KPa | G,A |
| | 700K | 700KPa | G,A |
| | 1.4M | 1.4MPa | G,A,S |
| | 2.1M | 2.1MPa | G,A,S |
| | 3.5M | 3.5MPa | A,S |
| | 7M | 7MPa | A,S |
| | 17M | 17MPa | A,S |
| | 35M | 35MPa | A,S |
| | 60M | 60MPa | A,S |
| | | Code | Power supply |
| | | C | 1.5mA |
| | | V | 5V(TYP.),Other(OEM) |
| | | | Code | Temperature compensated type |
| | | | R | Compensated by resistors |
| | | | | Code | Electric connection |
| | | | | 2 | silicon rubber flexible wires |
Note:1,It is recommended that the transducers should be installed as Suspended Mode to avoid face tight press and avoid affecting transducers stability.
2,Please pay attention to protect the diaphragm to prevent any damage or bad performance.
3,If the working temperature of viton rubber exceeds the temperature of the rubber specification or be applied in critical environment, please contact us.
4,The material of measuring medium should be compatible with the stainless steel. If it is corrosive, please specify its material in detail.
