Jc-CT02 Diffusion Silicon Sensor, High-Accuracy Piezoresistive Pressure Transmitter, Hydraulic Controls, Fresh & Waste Water Measurements
| Price: |
US $ 55-150/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
JC-CT02 |
| Measuring Medium: |
Gas Liquid |
Product Description

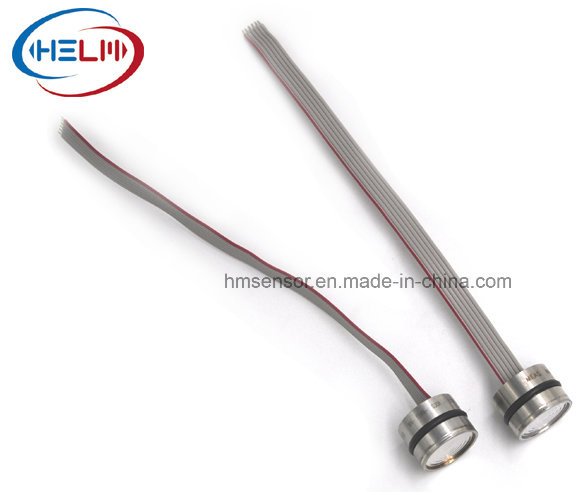

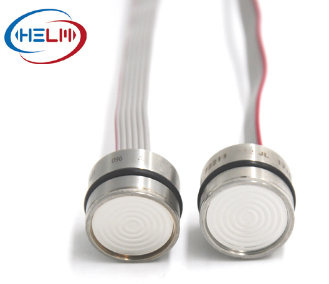

Product overview JC-CT02 compensated is a 19 mm small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The JC-CT02 compensated isdesigned for o-ring mounting and OEM applications where
compatibility with corrosive media is required. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction. An additional laser-trimmed resistor is included which can be used to adjust an external differential amplifier and provide span interchangeability to within ±1%
Features and ApplicationProduct Features Product application
* Dia.19mm * Medical Instruments
* 0~100Mv output * Process Control
* Gauge, absolute, vacuum *Fresh & Waste Water Measurements
* Temperature compensated * Refrigeration/Compressors
* Pressure Transmitters
*Hydraulic Controls
Technical Parameters
Excitation current 1.5mA, Ambient Temperature 25ºC
| Parameter | ≤5PSI | ≥15PSI |
| MIN | TYP | MAX | MIN | TYP | MAX |
| Span mV | 50 | 100 | 150 | 75 | 100 | 150 |
| Zero pressure output mV | -2.0 | 0 | 2 | -1.0 | 0 | 1 |
| Non-linearity %Span | Absolute/Gage | 1psi: -0.30 to 0.30
5psi: -0.20 to 0.20 | -0.10 | | 0.1 |
| Vacuum Gage | | | | -0.2 | | 0.2 |
| Hysteresis %Span | -0.10 | ±0.02 | 0.1 | -0.05 | ±0.02 | 0.05 |
| Repeatability %Span | | ±0.02 | | | ±0.02 | |
| Input Resistance KΩ | 2 | 3.5 | 6.5 | 2 | 3.5 | 5.8 |
| Output Resistance KΩ | 4 | | 7 | 4 | | 6 |
| Temperature Error-Span %Span | -1.0 | | 1 | -0.75 | | 0.75 |
| Temperature Error-Offset %Span | -1.0 | | 1 | 15psi: -0.75 to 0.75;>15psi: -0.50 to 0.50 |
| Thermal Hysteresis-Span %Span | -0.25 | ±0.05 | 0.25 | -0.25 | ±0.05 | 0.25 |
| Thermal Hysteresis-Offset %Span | -0.25 | ±0.05 | 0.25 | -0.25 | ±0.05 | 0.25 |
| Long-term stability-Span %Span/year | | ±0.1 | | | ±0.1 | |
| Long-term stability-Offset %Span/year | Absolute and Gage | | ±0.25 | | | ±0.25 | |
| Vacuum Gage | | | | | ±0.1 | |
| Supply Current mA | 0.5 | 1.5 | 2 | 0.5 | 1.5 | 2 |
| Output Load Resistance MΩ | 5 | | | 5 | | |
| Insulation Resistance MΩ(50VDC) | 50 | | | 50 | | |
| Output Noise uV p-p (10Hz to 1KHz) | | 1 | | | 1 | |
| Response Time ms (10% to 90%) | | 0.1 | | | 0.1 | |
| Pressure Overload Rated | 1psi: 10X max; 5psi: 3X max | | | 3X |
| Pressure Burst Rated | 1psi: 12X max; 5psi: 4X max | | | 4X |
| Compensated temperature °C | 1psi: 0 to 50; 5psi: 0 to 70 | -20 | | +85 |
| Operating temperature °C | -20 | 70 | -40 | | | +125 |
| Storage Temperature °C | -50 | 125 | -50 | | | +125 |
| Media - Pressure Port | Liquids and Gases compatible with 316/316L Stainless Steel |
| Media - Reference Port | Compatible with Silicon, Pyrex, Gold, Fluorosilicone Rubber, and 316/316L Stainless Steel |

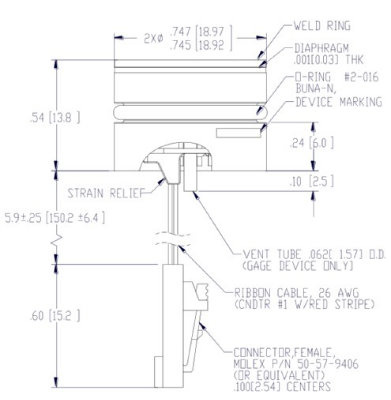

DIMENSIONS
| Pin | Function |
| 1 | +OUT |
| 2 | -EX |
| 3 | +EX |
| 4 | -OUT |
| 5 | GAIN |
| 6 |

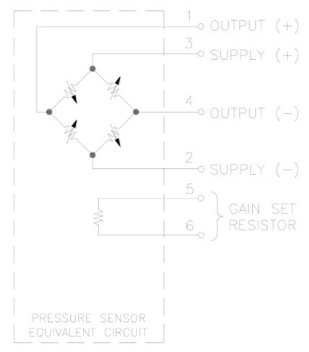

Connections

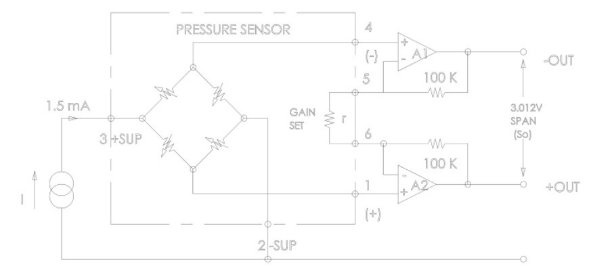

Application Schematic
Ordering information
| JC-CT02 Pressure Sensor |
| Model | Description |
| JC-CT02 | Dia. 19mm |
| | Code | Power Supply |
| | V | Constant Voltage |
| | C | Constant current |
| | | Code | Pressure Range | Negative | Gauge | Absolute |
| | | 6 | 0~6KPa | | * | |
| | | 30 | 0~30KPa | | * | * |
| | | 100 | 0~100KPa | * | * | * |
| | | 200 | 0-200Kpa | * | * | * |
| | | 350 | 0-350Kpa | * | * | * |
| | | 700 | 0~700Kpa | * | * | * |
| | | 2K | 0-2Mpa | * | * | * |
| | | 5K | 0-5.5Mpa | * | * | * |
| | | XX | Customized |
| | | | | Code | Wire system |
| | | | | W1 | Pin |
| | | | | W2 | Flat cable 90mm |
| | | | | X | Customized |
