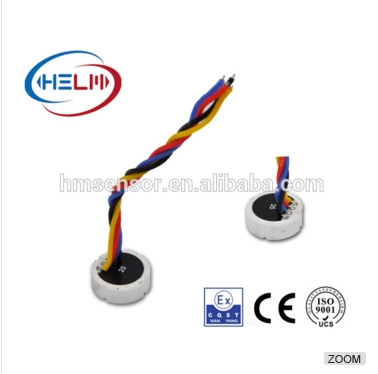

Jc-CZ05 Ceramic Pressure Sensor, 0~25bar Temperature Compensation Pressure Transmitter, Low Cost

Name: Jc-CZ05 Ceramic Pressure Sensor, 0~25bar Temperature Compensation Pressure Transmitter, Low Cost
Brand: all-electronics-online.com
SKU: 836327935
Availability: InStock
Rating: 4.4 (106 reviews)

Price:	US $ 4-10/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JC-CZ05
Output Signal Type:	Mv
Thread Type:	Customized
Measuring Medium:	Gas and Liquid
Certification:	Ce ISO9001

Product Description

Product overview
JC-CZ05 temperature compensation ceramic pressure sensors adpot the advanced technology of manufacturing and grant patents on its"perfect design". Excellent performance, high quality and be used widely in auto industry,industrial automation,air condition, hydraulic/pneumatic equipment, compressor,water pump,Petroleum and chemical industry,etc.

Technical Paramenters

Pressure range	0~10bar,0~20bar,0~25bar (0~1MPa, 0~2MPa, 0~2.5MPa)
Sensitivity	2-4mv/v
Zero temperature drift	≤±0.3%FS
Non-linear	<±0.3%FS
Zero ouput	±0.5%mV
Excitation voltage	5….30VDC
Operating temperature	-20…120ºC(Compensation-10…70ºC)
Safety Overload	150%FS
Limit Overload	300%FS (2-50bar) 250%FS (100-250bar)
Accuracy (non-linear+Hysteresis)	≤±0.3%FS
Repeability	≤±0.2%FS

Ordering Guide

JC-CZ05 Ceramic Pressure Sensor
Model	Descrption
JC-CZ05	Dia Ø18mm
	Code	Power Supply
	V	constand voltage
	XXX	constand current(customized)
		Code	Pressure range
		1M	0~1MPa
		2M	0~2MPa
		2.5M	0~2.5MPa
		XX	Customized
			Code	Pressure Type
			G	Gague Pressure
			SG	Seal Gague Pressure
				Code	Electrical
				1	connector pin
				2	Ribbon Cable(90mm as default)
				X	customized

Tips for Type Selection:
1. The medium to be measured shall be compatible with the material contacting with the product.
2. For other special requirements, please discuss with us and clearly indicate them in the order.

Certifications

Packaging & Shipping

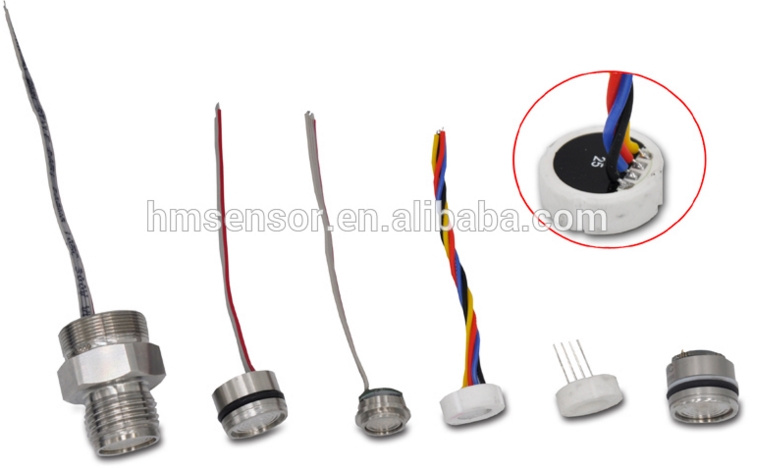

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
