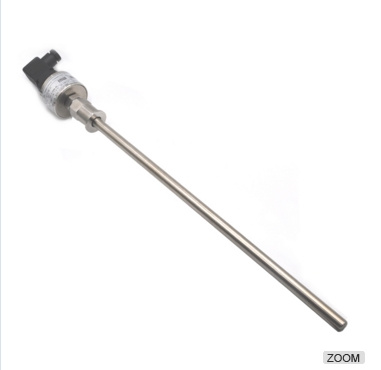

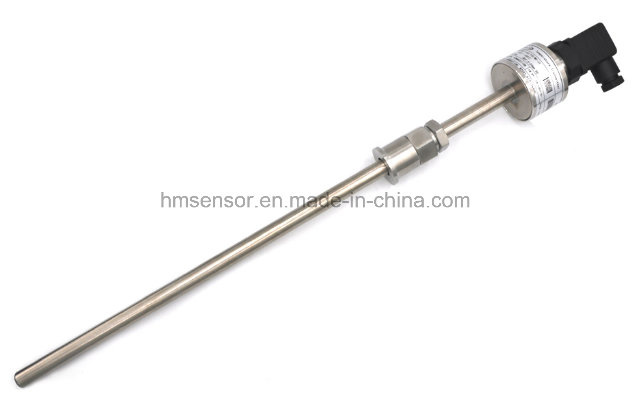

Jc6100 (02) Integrated Temperature Sensor, PT100 Temperature Transducer, 4~20mA Hart Temperature Transmitter
| Price: |
US $ 45-199/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
JC6100(02) |
| Thread Type: |
Customized |
| Measuring Medium: |
Liquid ,Gas, Steam |
Product Description
Product Overview JC6100 series of industrial thermal resistor, as a temperature measurement sensor, is usually used together with temperature transducer, regulator and display instrument to form a process control system for direct measurement or control of the temperature of liquid, vapor and gas media as well as solid surface within -200ºC~500ºC in various production processes. The thermal resistor measures temperature by using the characteristic that the resistance itself changes with the change of temperature of substance. When temperature gradient exists in the measured medium, the temperature measured is the average temperature of the medium where temperature-sensing element is located. Although the appearance of all thermal resistors varies widely, their basic structure is roughly similar, generally including such major components as temperature-sensing element, insulation casing, protective tube and junction box.
Working Principle Thermal resistor measures temperature by using the characteristic that the resistance itself changes with the change of temperature of substance. When the resistance changes, the bridge passing through the temperature transducer will produce an unbalanced signal, which is converted into 4-20mA DC signal after being amplified, and then the working instrument will show the corresponding temperature value. Performance Parameters| Measuring range | -200ºC~500ºC |
| Measured medium | Gas or liquid compatible with 304 or 316 L stainless steel |
| Output | Sensor (PT100); transducer (two-wire system 4-20mA+HART protocol) |
| Power supply | 10~36V DC |
| Overall accuracy | ±0.5%FS ; ±0.25%FS ; ±0.1%FS |
| Allowable error | Graduation PT100: Grade A (±0.15+0.002 ltl); Grade B (±0.30+0.005 ltl) |
| Withstand voltage | Typical: 40bar (Max:300bar) |
| Long-term stability | ±0.1%FS/ year |
| Response time | T=50ºC 2.3s ; T=90ºC 5.4s |
| Electrical protection | Reverse polarity protection and optional surge voltage protection |
| Ambient temperature | -40~+85ºC |
| Storage temperature | -40~+125ºC |
| Installation mode | Plug-in (insertion depth: beyond 50mm thread; can be customized) |
| Probe dimensions | Φ12, Φ8, Φ6 (mm), others |
| Liquid-contacting material | 304 stainless steel, 316 stainless steel, 316L stainless steel lined PTFE |
| Damping | Adjustable 0-32 seconds |
| Protection degree | IP65 ; IP67 |
| Resistance to mechanical vibration | 10~60HZ, 0.21mm sine wave |
| ARFI | IEC61000-4-3, 20V/M,80~1000MHZ |
| Executive standard | IEC584 ;IEC1515;GB/T16839-199;JB/T5582-91 |
Ordering Guide| JC6100 | Integrated Intelligent Temperature Transducer |
| | Code | Type: Transducer (4-20mA)-B (may not be indicated as default); sensor (PT100) -P |
| | Range | Measuring Range: 0~ X ºC, e.g.: 0~100ºC |
| | | Code | Overall accuracy |
| | 1 | 0.5%FS (PT100-Grade B) |
| | 2 | 0.25% (PT100- Grade A) |
| | 3 | 0.1% (PT100- Grade A) |
| | Code | Output Mode |
| | V1 | PT100 |
| | A1 | Two-wire system 4-20mA |
| | S1 | Two-wire system 4-20mA overlapped with HART protocol intelligence |
| | Code | Pressure interface |
| | F1 | M20x1.5 external thread |
| | F2 | G1/4 external thread |
| | F0 | Custom (including flange, special thread) |
| | Code | Electrical connection mode |
| | W1 | Cable type (2m shielded wire) |
| | W2 | HSM Socket |
| | W3 | Air plug to 2m shielded wire |
| | | | | | | | Code | Outer protective pipe diameter (insertion depth mm) |
| | | | | | | | J1 | Φ12 outer protective pipe (insertion depth) |
| | | | | | | | J2 | Φ8 outer protective pipe (insertion depth) |
| | | | | | | | J3 | Φ6 outer protective pipe (insertion depth) |
| | | | | | | | J4 | Other outer protective pipes (insertion depth) |
| | Code | Additional selections |
| X | 304 steel pipe (may not be indicated) |
| Y | 316L steel pipe |
| F | 316L stainless steel + lined PTFE |
| E | Intrinsically safe explosion - proof Ex iaIICT6 |
| JC6100B(0~100ºC)-1 -S1 -F1-W3-J1(50mm)-Y Intelligent Digital Temperature Transducer |
