Jchm24t Low Cost Pressure Sensor,Cheap Pressure Transducer ,Silicon Pressure Transmitter, Pump Sensor,Compressor Pressure Transmitter,Hydraulic Pressure System
| Price: |
US $ 40-78/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
JCHM24T |
| Measuring Medium: |
Gas Liquid |
Product Description

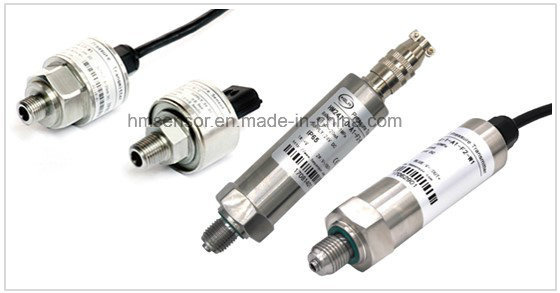

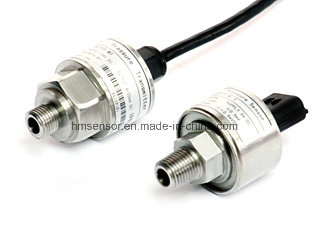

Product Overview JCHM24 Economical Pressure Sensor and Transducer is a civil and industrial product with large consumption and low costs, for which a new standard of cost performance has been established. This series of products is widely used for pneumatic and hydraulic detection even in very harsh medium environment such as sewage, vapor, slight corrosive liquid and gas. JCHM24 series is designed with foreign advanced micro-machined silicon pressure-sensitive resistance metal membranes. Micro-melting technology is adopted to solidify the high-temperature glass on the stainless steel isolating membrane. Glass cementation avoids the influence of temperature, humidity, mechanical fatigue and medium on the adhesive and material, thus enhancing long-term stability of the sensor in industrial environment. Meanwhile, the effect of P - N junction in a conventional micromechanical sensor can also be avoided.
Feature/Applicantion Product Features Product Applicantions • Leakage protection • Refrigeration equipment --- Freon or ammonia • Low-cost OEM • Energy and water treatment system• Free of O-ring, silicone oil, and welding seam • Hydraulic and pneumatic system• Single-piece integrated structure made of stainless steel • Automatic detection system• Millivolt or standard signal output • Agricultural equipment • High cost performance • Wide range of operating temperature • Pump and compressor Specification
| Measuring range | 0~100KPa...70MPa |
| Pressure type | Gauge pressure or absolute pressure |
| Permissible overpressure | Two times of full-scale pressure |
| Measuring media | The gas or liquid compatible with 316 stainless steel |
| Power supply | 5V DC | 12~36 VDC (generally 24V DC) |
| Signal output | ≥70mV DC | 4-20mA, 1-5 V, 0~5 V, 0.5-4.5 V |
| Accuracy(nonlinearity + hysteresis + repeatability) | ±0.5%FS(typical value) |
| Long-term stability | ±0.25%FS/year |
| Range of operating temperature | -20~+85ºC |
| Range of compensation temperature | -10~+50ºC |
| Temperature performance | Zero temperature coefficient:±0.04%FS/ºC(typical);±0.06%FS/ºC(maximum) |
| Sensitivity temperature coefficient:±0.04%FS/ºC(typical) ;±0.06%FS/ºC(maximum) |
| Thermal hysteresis | ±0.1%FS(typical) |
| Electrical connection | PG7cable connection | Connector DIN43650 |
| Enclosure protection class | IP67(cable type) | IP65(socket type) |
| Response time(10%~90%) | ≤3ms |
| Load resistance | ≤(U-12)/0.02 Ω |
| Insulation resistance | 100MΩ,500VDC |
| Safety and explosion protection | Ex ia II CT6 |
| Vibration error | ≤±0.01%FS(Axes X,Y,Z,200Hz/g) |
| Weight | Approx. 250g |
Ordering information
| JCHM24 | Economical Pressure Sensor and Transducer |
| | Code | Product type |
| T | Pressure transducer |
| S | Pressure sensor |
| | Pressure type | Gauge pressure (G may not be indicated);absolute pressure(A) |
| | Range | (0~ X KPa or MPa)Measuring range |
| | Code | Overall accuracy (linearity + repeatability + hysteresis) |
| | 0 | ±1%FS |
| 1 | ±0.5%FS |
| | Code | Signal output |
| A1 | 4~20mA |
| V1 | 1~5V DC |
| V2 | 0~5V DC |
| V3 | 0.5~4.5V DC |
| V4 | ≥70 mv DC (pressure sensor) |
| | Code | Additional functions |
| F1 | M20x1.5 external thread |
| F2 | G1/4 external thread |
| F0 | Special |
| W1 | Cable type(IP67,2m) |
| W3 | Aerial socket type(IP65) |
| E | Intrinsically safe explosion-proof type Ex iaIICT6 |
| JCHM24 T (0~1.6MPa) -1 -A1 -F1 - W3 Economical Pressure Sensor and Transducer |
Tips for Type Selection:
1. The medium to be measured shall be compatible with the material contacting with the product.
2. As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type ExiaIICT6 denotes that power source must be supplied via safety barrier
3. For other special requirements, please discuss with us and clearly indicate them in the order.

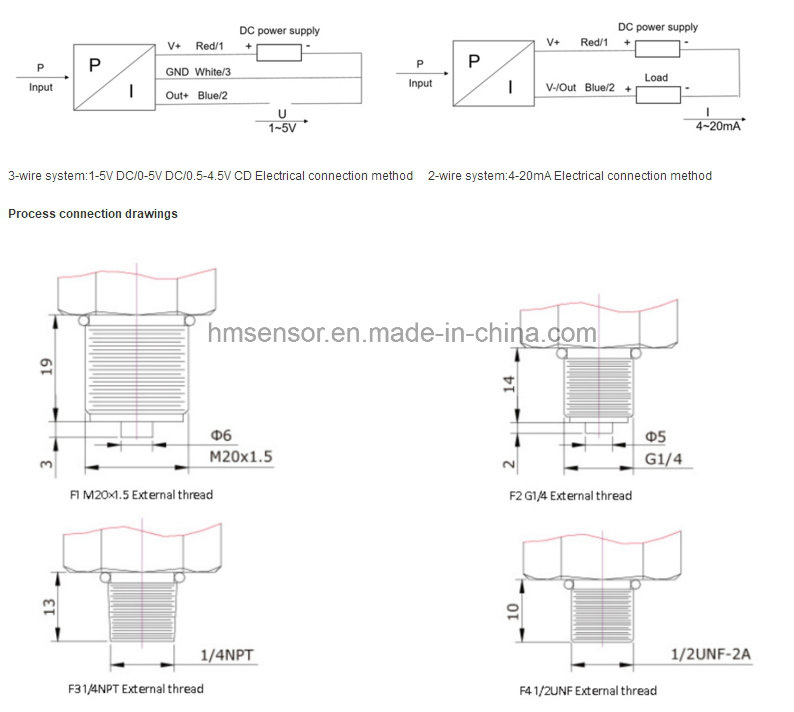

Electric Connection
| Plug | Cable | 4-20mA | 1-5V/0~5V/0.5-4.5V DC |
| 1 | Red | Positive power supply: +V | Positive power supply: +V |
| 2 | Blue | Signal output / negative power supply: OUT/-V | Positive signal output: +OUT |
| 3 | White | Idle | Common port / power source end: GND/-V |
| 4(⊥) | Yellow | Grounded in case of strong disturbance | Reliably grounded in case of strong disturbance |
