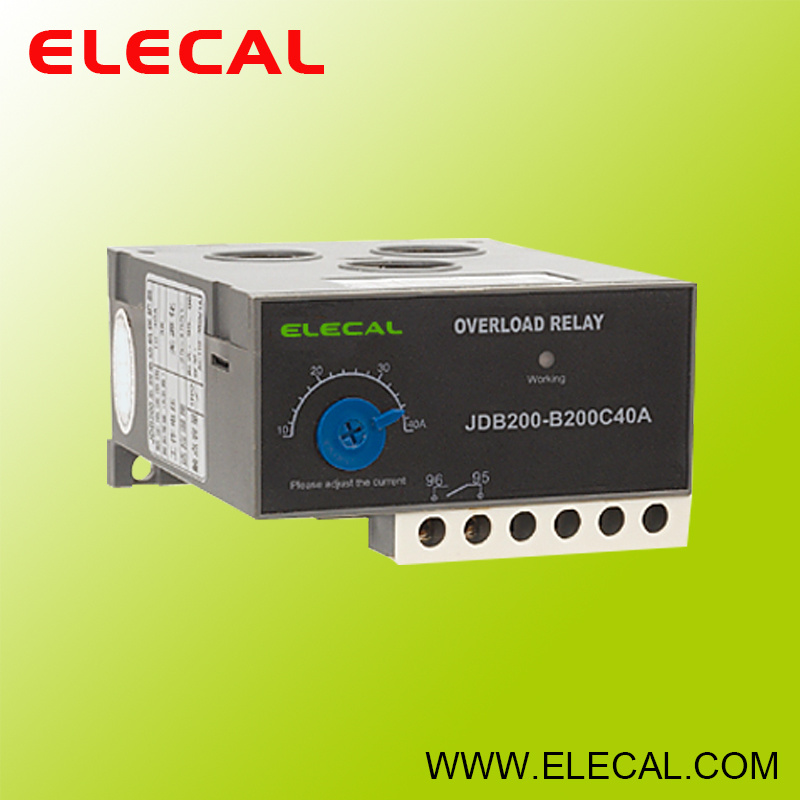

Jdb200-B Series Solid State Overload Relay

Name: Jdb200-B Series Solid State Overload Relay
Brand: all-electronics-online.com
SKU: 765856935
Availability: InStock
Rating: 4.7 (150 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDB200-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
The JDB200-B series solid state overload relay is suitable for protection of phase-failurre and overload of AC motor of AC50/60Hz, rated voltage up to 690V, rated current up to 600A. The features are reliable, lower energy comsumption and broad adjusting current. The product confirms to IEC60947-4-1 standard.

2.Specification

Type	Number	Rated current(A)	Setting current range(A)
JDB200-B20J	1.2A	20	0.3~1.2
4A	1~4
12A	3~12
20A	5~20
JDB200-B60C	8A	60	2~8
20A	5~20
60A	15~60
JDB200-B200C	40A	200	10~40
120A	30~120
200A	50~200
JDB200-B600C	200A	600	50~200
600A	150~600	600

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
