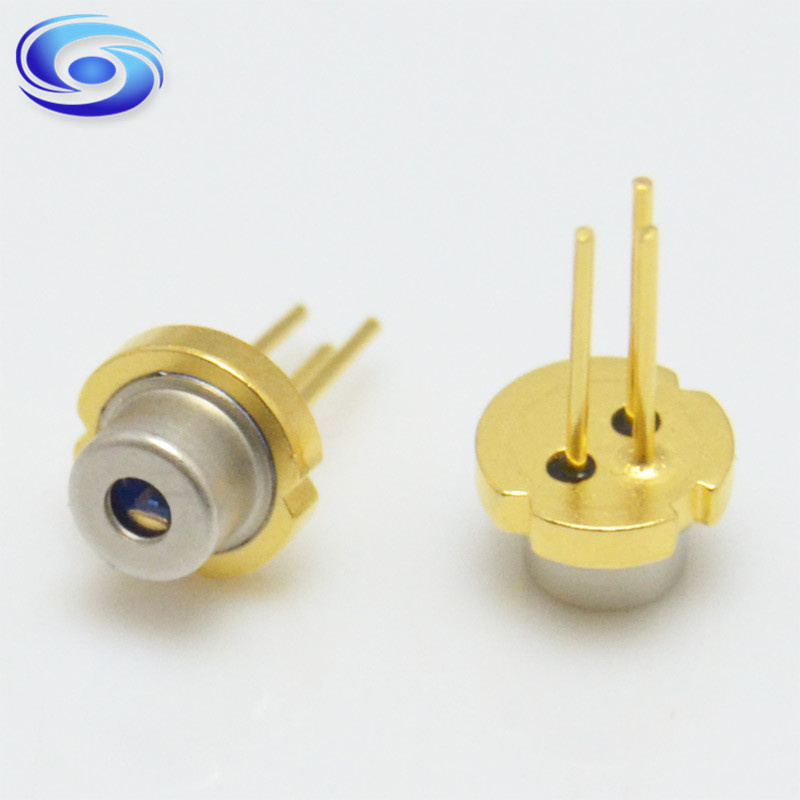

Jdsu 850nm 200MW Infrared 850MW 5.6mm Laser Diode

Jdsu 850nm 200MW Infrared 850MW 5.6mm Laser Diode
Price: US $ 5.5-6.5/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: JLD8550ZB-JDSU
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wavelength: 850nm
Output Power: 200MW
Color: Infrared
Operation Current: 350mA
Operation Voltage: 2V
Storage Temperature: -40 to +80 Degree
Operation Temperature: -10 to + 40 Degree
Quality: Brand New
Lifetime: 10, 000hours
Price: Lower Price

Product Description


Specification:
Wavelength: 850nm
Output Power(CW): 200mw
Can Type: 5.6mm Floating Mounted


Absolute Maximum Ratings (Tc=25ºC)

Parameter
SymbolValues  Unit
Min.Max.
Operating CurrentIf350450mA
Reverse VoltageVr-2V
Operating Case TemperatureTc-10+40ºC
Storage TemperatureTstg-40+80ºC



Electrical and Optical Characteristics (Tc=25ºC)

Parameter
SymbolMin.Typ.Max.Unit
Optical Output PowerPo-200

mw
Emission Wavelengthλp830850870nm
Threshold CurrentIth-100140mA
Operating CurrentIr-350450mA
Operating VoltageVop-2.0

V
Modulation Frequencyf->100-MHz


2.Packing and Delivery for 850nm 200mw laser diode
Packing:
1.100 pieces/box, 10 boxes /carton.
2. Plastic box package ,TO18-5.6mm package.
3. It based on the laser diode kind, each kind has different size.


Delivery for 850nm 200mw laser diode:
delivery time:1~3 days
delivery way:DHL,Fedex,UPS or other way as your demand.

3.Appliceation for 850nm 200mw laser diode:
Laser Module
Industrial Use
Lase Pointer
Laser light
Laser sight

4. FAQ for 850nm 200mw laser diode:
1)Q: Where is your company located? How can I visit there?
  A:Our company is located in Dongguan, China. All our clients, from home or
abroad, are warmly welcome to visit us!

2)Q: Can I order samples of 850nm 200mw laser diode first to test the qualty?
  A: Yes, samples ae in stock for you.

3)Q: How to pay for 850nm 200mw laser diode?
  A: We accept T/T, Paypal, Western union, Moneygram, If you use other
payment terms, please feel free to contact us!

4)Q: Have you other laser diode?
   A: We offer 405nm, 450nm, 515nm, 520nm, 532nm, 635nm, 650nm, 780nm, 808nm, 830nm, 850nm, 980nm laser diode and laser module.
