Shentong Technology Co., Ltd. >> Jdz (J) -3, 6, 10q 10kv PT Potential Transformer Voltage Transformer

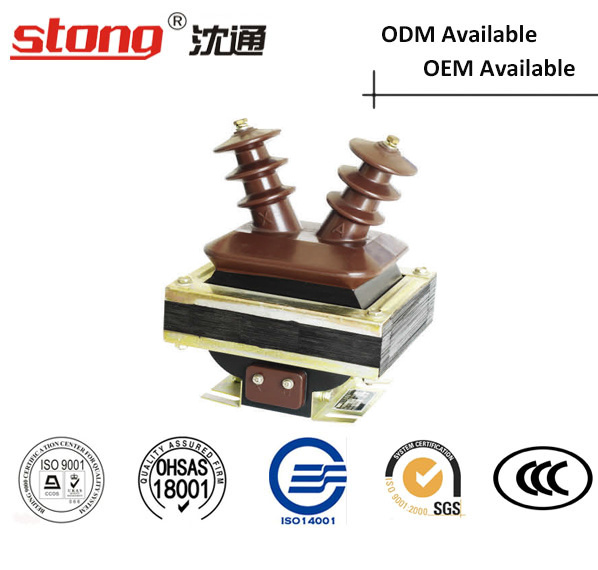

Jdz (J) -3, 6, 10q 10kv PT Potential Transformer Voltage Transformer

Jdz (J) -3, 6, 10q 10kv PT Potential Transformer Voltage Transformer
Price: US $ 130/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: JDZ(J)-3, 6, 10Q
Application: Instrument
Type: Voltage Transformer
Phase: Three

Product Description

Advantages:
                     1.Our Company Has Great Reputation In Domestic Market.
                           2.Good Quality Guaranteed With Reasonable Price.
                           3.OEM, ODM Are Welcomed.
                           4.Goods Will Be Delivered On Time.

                           5.Factory Selling Directly

10 kv PT china manufacturer

Key Specifications/Special Features:

  • Available models: JDZ10-3, JDZ10-6 and JDZ10-10
  • Rated voltage: 10kV
  • Casting insulation
  • Rated voltage ratio: 10/0.1kV
  • Single-phase
  • Rated voltage: 10kV
  • Two separated secondary winding
  • Indoor type and semi-closed structure with epoxy resin casted
  • Applicable for using of measurement of voltage, electronic energy and relay protection in power system with rated frequency of 50Hz and rated voltage of 10kV or below
  • Epoxy resin casted for semi-closed structure
  • Core adapts high grade piece
  • Small size, lightweight and small space for installation

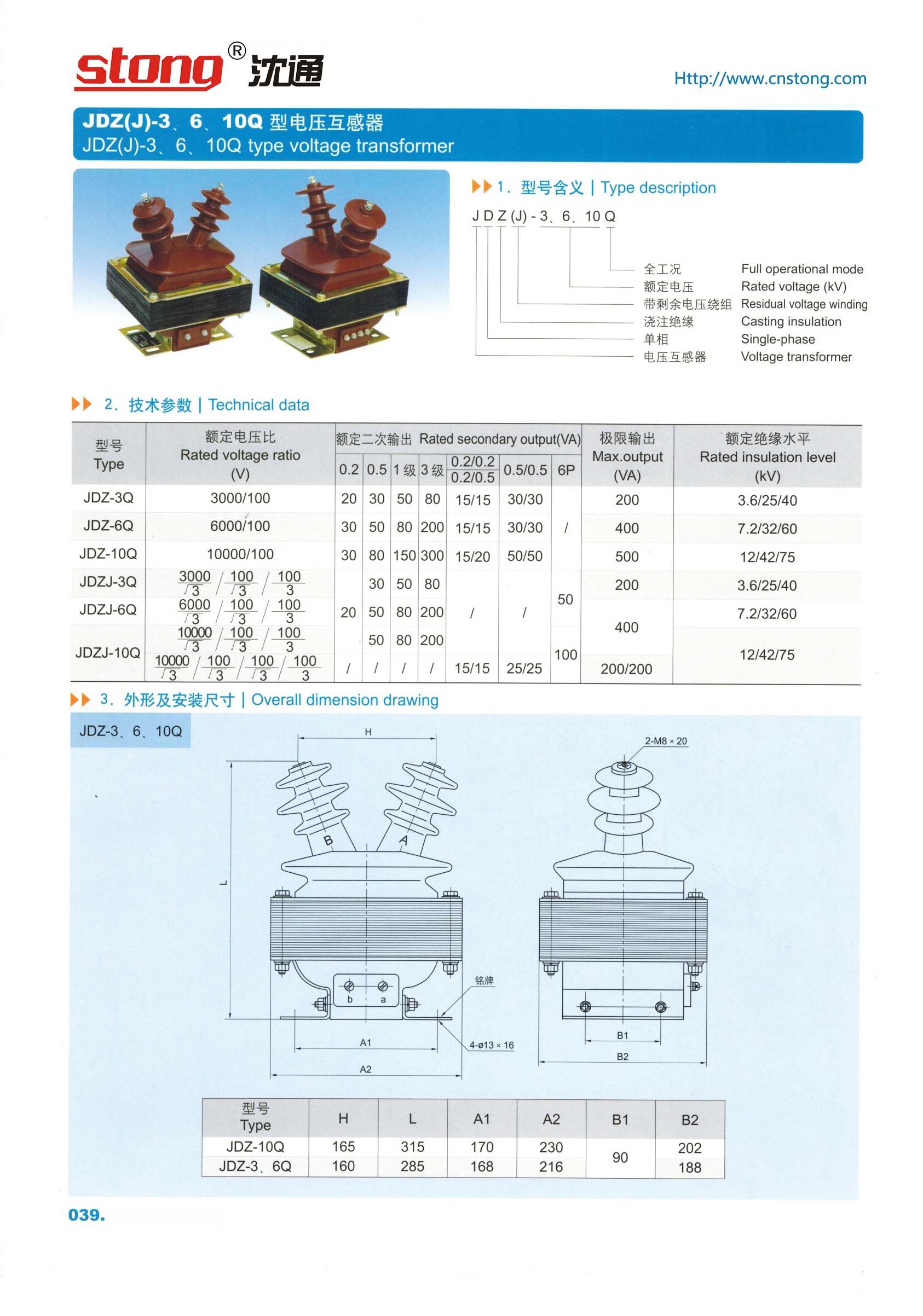

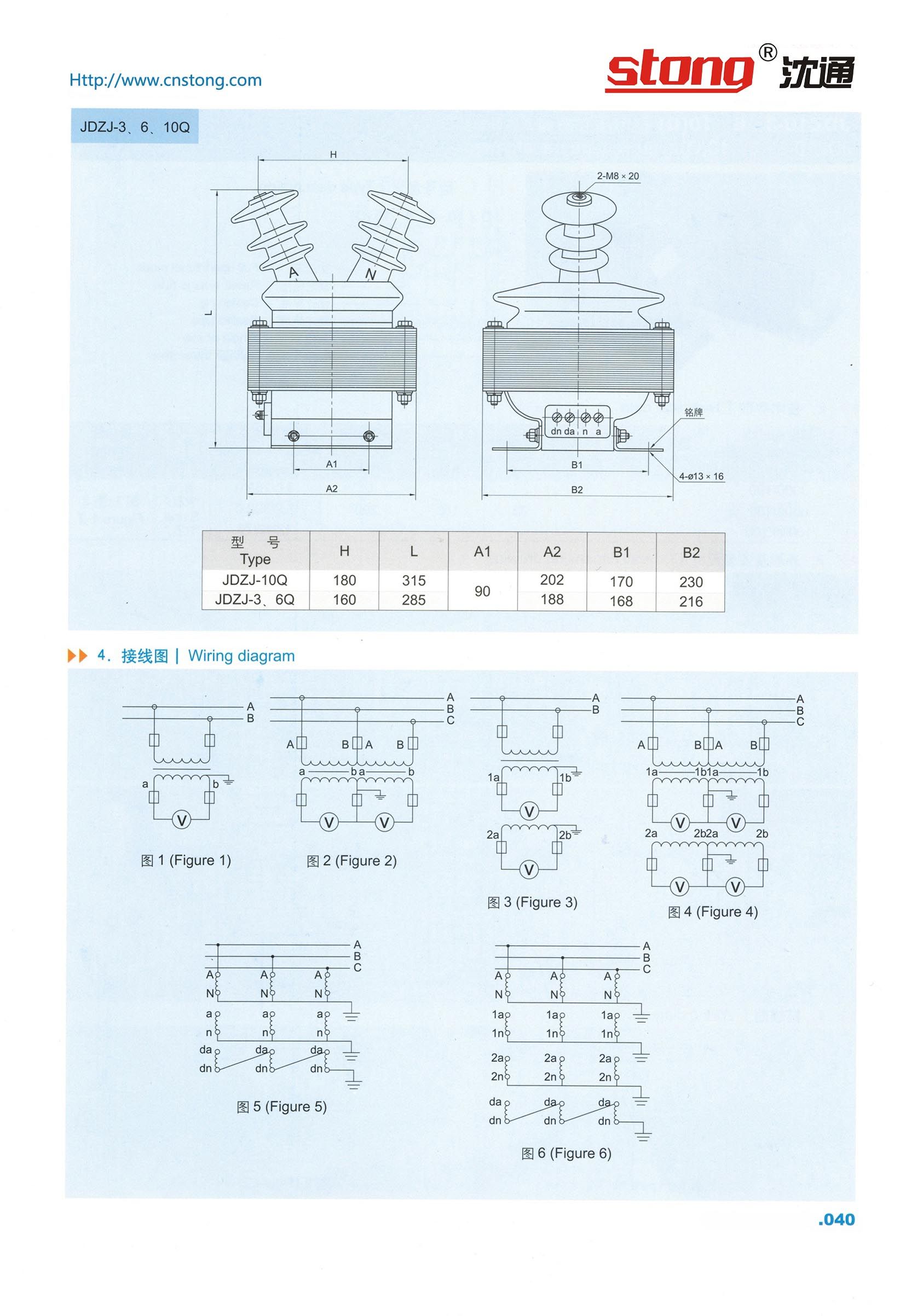

Main Technical Parameters
Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture

Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.

We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.

Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
