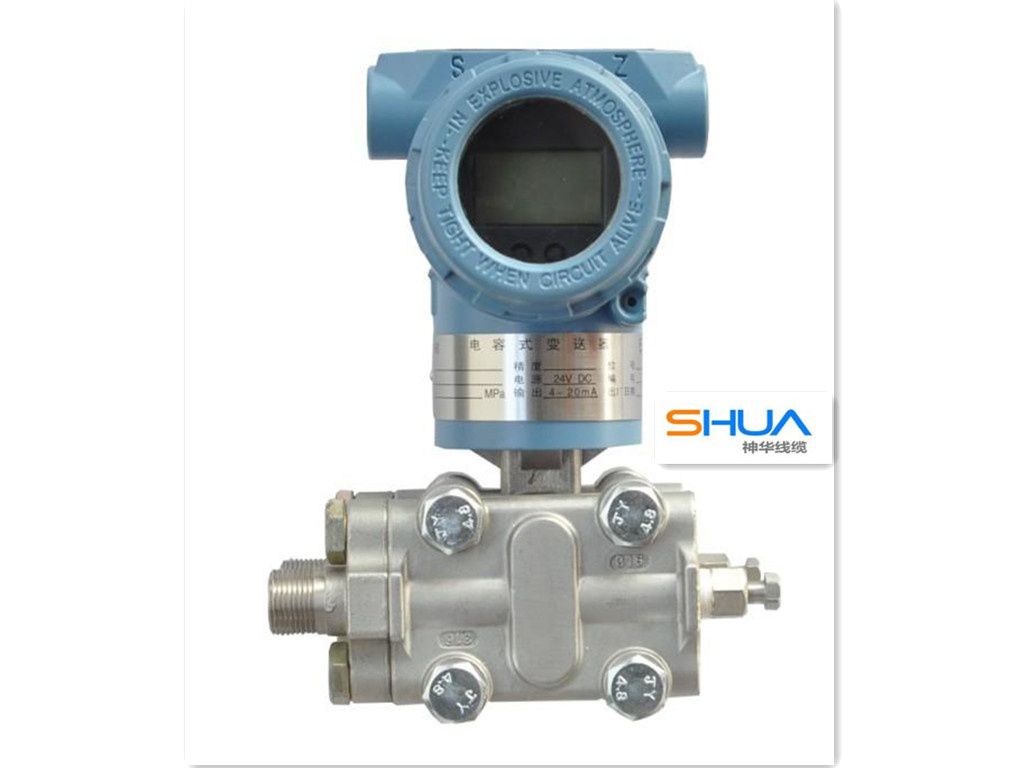

Jf3351series\1151series Capacitive Pressure (DP) Transmitter

Prod Model:	3351/1151Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Your Requirements
Wiring Type:	Two-Wire or Four-Wire

Product Description

Application

JF 3351 \ 1151 miniaturized capacitor series capacitance transmitter is our introduction of foreign advanced technology and equipment, the key raw materials, components and parts are imported, the whole assembly and rigorous testing. Because of the appearance of the models fully integrated into the present through the inner most popular two transmitters (Rosemount 3051 and Yokogawa EJA) and widely used, fresh feeling to the user. Simultaneously with the traditional 1151, CECC and other products are compatible and can be easily installed in a direct replacement, so it is an alternative to some of the old products and update products, and launched with HART fieldbus protocol intelligent features

Feature

The key parts imports, stable performance, reliable quality, and low prices
High accuracy: 0.2%, 0.25%, 0.5% choose
Full specifications: Range from 0-125PA minimum to maximum 0-41.37MPA arbitrary choice
Variety: DP-type differential pressure, differential pressure DR, high static pressure HP type, traffic type DP, GP-type pressure, absolute pressure AP type, level LT model and remote flange (either capillary length 1.5-7.51M optional)
Migration can be positive or negative: positive transfer: 500%, negative transfer: 600%
σOutput signal:two-wire 24VDC power supply, 4-20MADC output (also available for four-wire 220VAC power supply, 0-10MADC output)
Explosion-proof: intrinsically safe iaIICT6, flameproof dIIBT4
Good pressure resistance: general pressure 14MPA, high hydrostatic pressure 32MPA
Corrosion: available 316L, corrosion-resistant transmitter Monel, Hastelloy C, tantalum and other materials

With live instruction sheet:
1,4 1/2 digit LCD display
2, linear or square root instruction pointer 0-100%
Flange standard: ANDI3 ", 4" 150Ib-600Ib
Woks
Process pressure by both sides or one side of the diaphragm, the center spread σ fill fluid chamber measuring diaphragm. The center of the diaphragm is a tensioned elastic member, he rode for the pressure acting on both sides to produce a corresponding deformation of the displacement difference, which is proportional to the displacement and the differential pressure, the maximum shift of approximately 0.1MM, such displacement into capacitor plates stroke differential capacitance, by electronic circuit converts the differential capacitance of 4-20MADC wire output models
