Jg Silicone Insulated Cable 120.0mm2 with Dw20

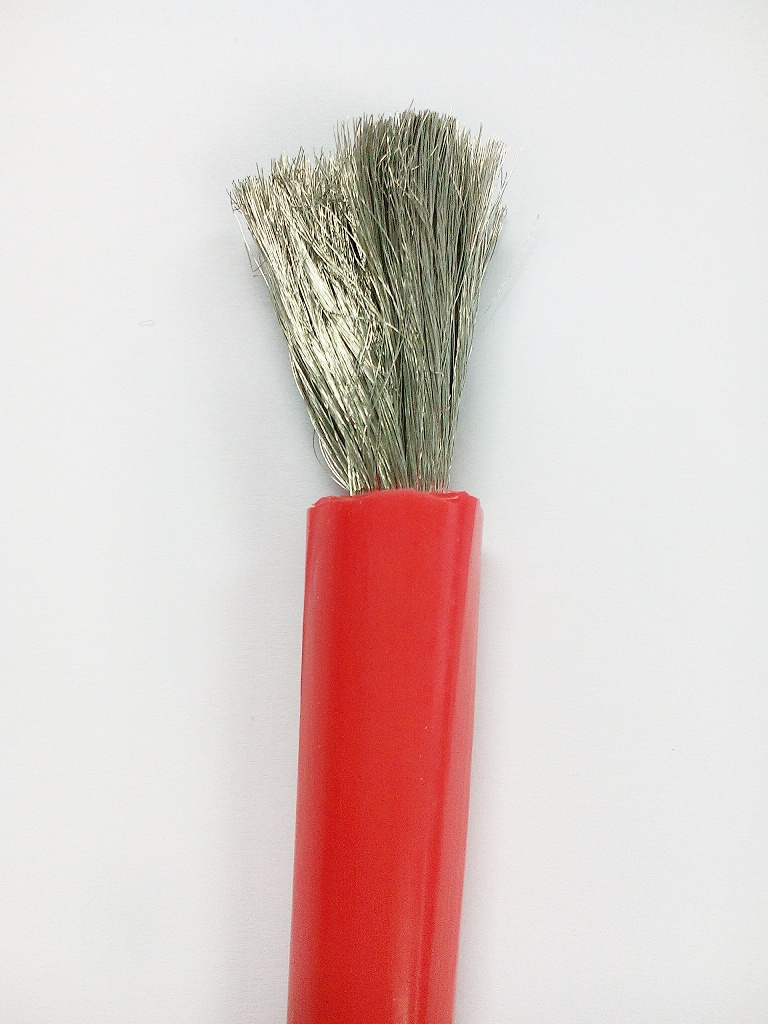

Name: Jg Silicone Insulated Cable 120.0mm2 with Dw20
Brand: all-electronics-online.com
SKU: 813856565
Availability: InStock
Rating: 4.6 (128 reviews)

Price:	US $ 1.568-9.26/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	120.0mm2
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	VDE
Brand:	Dewei Wire

Product Description

JGsilicone insulated cable 120.0MM2 with DW20
Rated voltage:500v/1000v
temperature range:-60~+180
conductor:tinned,nickeled,silver plated,bared copper
insulation:silicone rubber
section:120.0mm2
construction of conductor:608/0.50

section mm2	conductor construction No.*mm	insulation thickness mm		OD MM		MAX. OD MM		Packing m/roll
section mm2	conductor construction No.*mm	500v	1000v	500V	1000V	500v	1000v	Packing m/roll
0.12	7/0.15	0.6	0.8	1.65	2.05	1.9	2.36	300
0.2	12/0.15	0.6	0.8	1.80	2.20	2.07	2.53	300
0.3	16/0.15	0.6	0.8	1.90	2.30	2.19	2.65	300
0.4	23/0.15	0.8	1.0	2.40	2.80	2.76	3.22	300
0.5	16/0.2	0.8	1.0	2.53	2.93	2.91	3.37	300
0.75	24/0.2	1.0	1.2	3.14	3.54	3.60	4.07	200
1.0	32/0.2	1.0	1.2	3.32	3.72	3.80	4.28	200
1.5	30/0.25	1.0	1.2	3.60	4.00	4.14	4.60	200
2.0	40/0.25	1.0	1.2	3.84	4.24	4.42	4.87	200
2.5	49/0.25	1.0	1.2	4.00	4.40	4.60	5.06	200
4.0	56/0.3	1.2	1.4	5.00	5.40	5.74	6.20	200
6.0	84/0.3	1.2	1.4	6.00	6.40	6.90	7.36	200
10.0	84/0.4	1.4	1.6	7.40	7.80	8.50	8.97	100
16.0	126/0.4	1.4	1.6	8.50	8.90	9.78	10.23	100
25.0	196/0.4	1.6	1.8	10.30	10.7	11.84	12.31	100
35.0	276/0.4	1.8	2.0	12.10	12.5	13.92	14.38	50
50.0	396/0.4	2.0	2.2	14.30	14.7	16.44	16.91	50
70.0	360/0.5	2.0	2.2	16.40	16.8	18.86	19.32	50
95.0	475/0.5	2.2	2.4	18.90	19.3	21.74	22.2	50
120.0	608/0.5	2.2	2.4	20.40	20.8	23.46	23.92	50

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
