Jg1000V Soft Lead Cable with Silicone Rubber Insulation

Name: Jg1000V Soft Lead Cable with Silicone Rubber Insulation
Brand: all-electronics-online.com
SKU: 815228575
Availability: InStock
Rating: 4.6 (108 reviews)

Price:	Negotiable/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JG1000
Nominal Voltage:	1000V
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Insulation Material:	Silicone Rubber
Certification:	CSA
Conductor Material:	Tinned Copper
Range Of Application:	Lead Wire for Winding of Electrical Machinery
Brand:	Yuanda

Product Description

Jiangyin Yuanda Electrical Material Co., Ltd. is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and ROHS Environmental Protection Instruction of European Union.

JG1000V Soft Lead Cable with Silicone Rubber Insulation:

Technical Data:

Nominal Voltage: 1000V
Temperature Range: -40ºC~+180ºC
Testing Voltage: 6KV
Conductor: Tinned Copper
Insulator: Silicone Rubber
Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Use: Lead wire for winding of electrical machinery.
Executive Standard: JB/T 6213.4-2006

Specification:

Conductor			Insulation			Max resistance at 20ºC Ω/km
Conductor			1000V			Max resistance at 20ºC Ω/km
Section mm²	Conductor Construction No./D(mm)	Diameter (mm)	Thickness (mm)	Nominal outer diameter (mm)	Max outer diameter (mm)	Cu core	Tinned-Cu core
0.5	28/0.15	0.93	1.4	3.73	4.2	39.0	40.1
0.75	24/0.20	1.14	1.4	3.94	4.4	26.0	26.7
1	32/0.20	1.32	1.4	4.12	4.6	19.5	20.0
1.5	30/0.25	1.6	1.4	4.4	5.0	13.3	13.7
2.5	49/0.25	2.0	1.4	4.8	5.3	7.98	8.21
4	56/0.30	2.7	1.4	5.5	6.0	4.95	5.09
6	84/0.40	3.4	1.5	6.4	7.1	3.30	3.39
10	84/0.40	4.2	1.5	7.2	8.0	1.91	1.95
16	126/0.40	5.7	1.5	8.7	9.3	1.21	1.24
25	196/0.40	7.1	1.6	10.3	11.0	0.780	0.795
35	276/0.40	8.5	1.6	11.7	12.5	0.554	0.565
50	396/0.40	10.3	1.7	13.7	14.5	0.386	0.393
70	560/0.40	12.2	1.8	15.8	16.8	0.272	0.277
95	760/0.40	14.2	2.0	18.2	19.2	0.206	0.210
120	955/0.40	16.2	2.2	20.6	21.6	0.161	0.164
150	1194/0.40	18.0	2.3	22.6	23.6	0.129	0.132
185	1443/0.40	20.0	2.4	24.8	25.8	0.106	0.108
240	1924/0.40	23.0	2.4	27.8	28.2	0.0801	0.0817

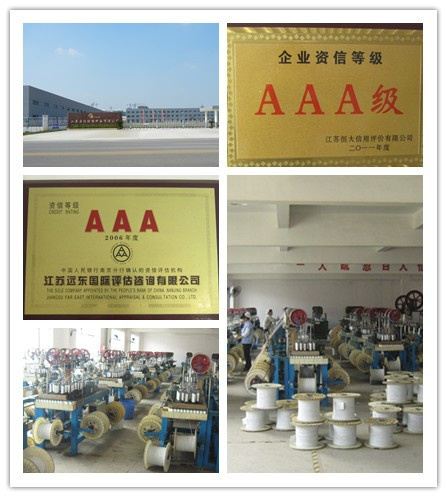

Jiangyin Yuanda Electrical Material Co. Ltd. (Wuxi yuanda Electrical Materical Co. Ltd) is locked in Jiangyin, the most developed city in China, Jiangsu Province. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique advantages and convenient transportation could be your ideal business choice.

Our main products include:

1. Heat-resistant silicone rubber wires which are widely used in household appliances and electronic instruments such as UL3122, UL3135, UL3512 and VDE HO5S-K, VDE HO5SJ-K, CCC245IEC, H3Cable and teflon wires such as UL1330, UL1332, UL10362 and so on.

2. Steel industry heat-resistant cables applicable to aviation, navigation and such as YG, H05SS-F.

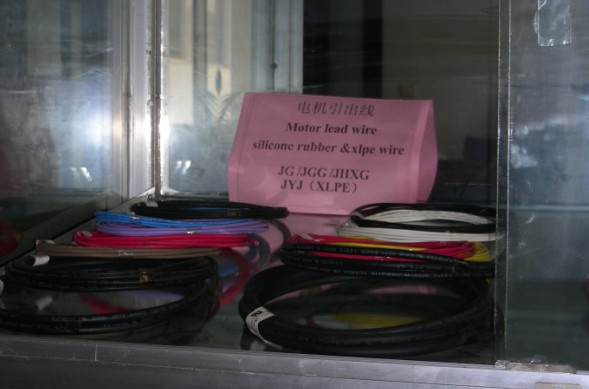

3. JG and JYJ cables applicable to electric machines metallurgy, engines, transformers and nuclear Powers.

4. Wires such as GXL, AEX and SGR used in automobiles.

5. Coaxial cables such as RG and RF series used for communications in cell phones, computers 3G and military industry.

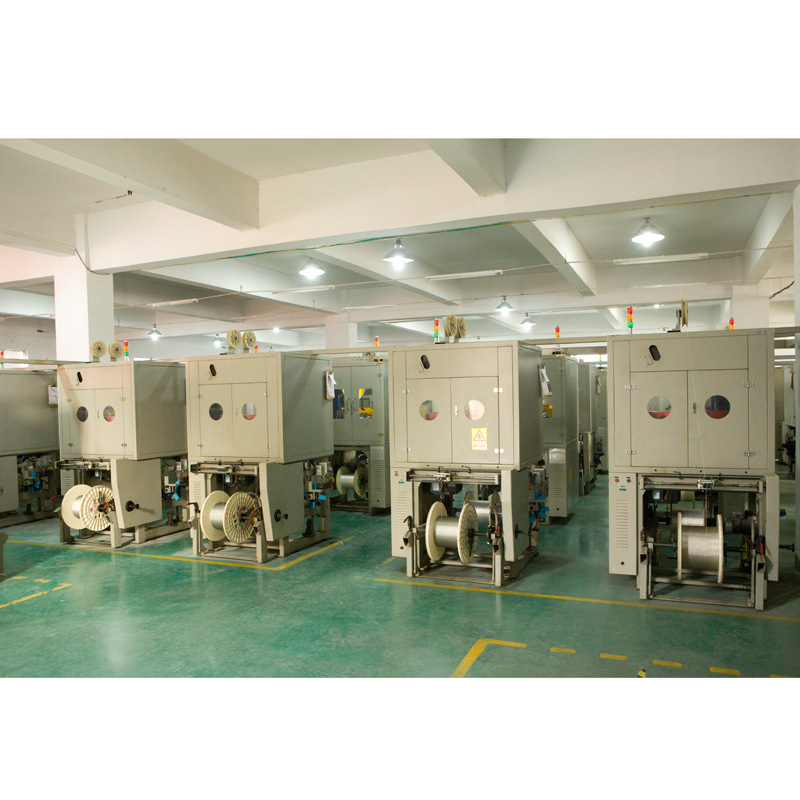

We have abundant technical strength, advanced equipments, functional testing facilities and good quality-ensuring systems and have acquired the certificates of ISO9001-2000 and ISO/TS16949: 2009 for Automotive wires and tubes. Our main products, silicone rubber insulated wires and cables Teflon sires, silicone glass fiber pipers, rubber-inside and fiber-outside pipes are certified by UL, VDE, CSA and CCC and all our products can meet the requirements of RoHS.

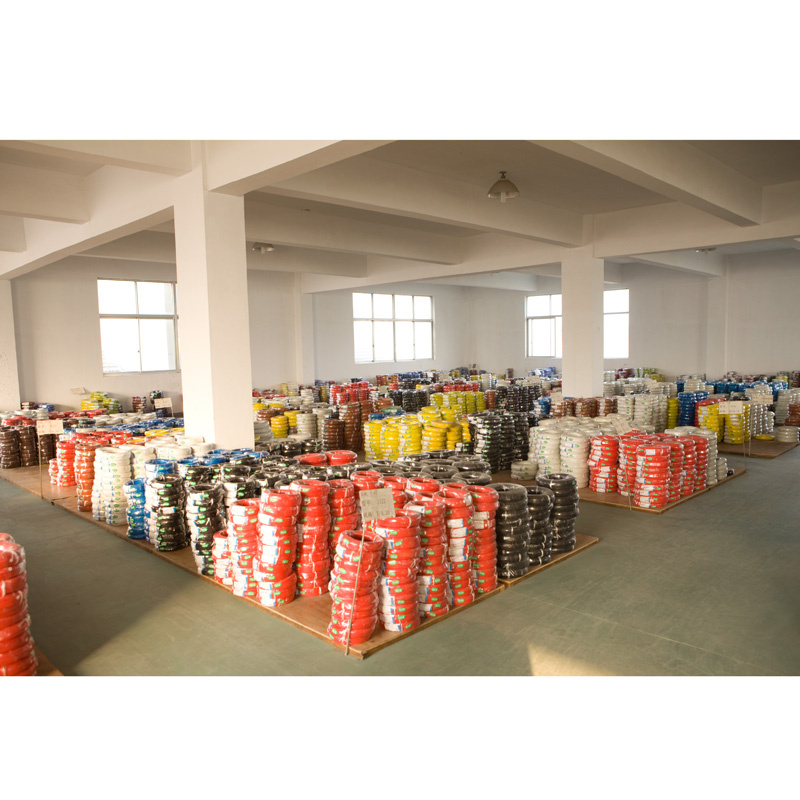

Our annual output of heat resistant sleeve is 120, 000Km, all kinds of high temperature cable is 8, 600, 000Km, RF coaxial cable is 150, 000Km, and we can process all kinds of nonstandard cable according to the requirement of clients. With the excellent products, punctual delivery, we'll be your ideal partner.

With high qualify products, reasonable price and perfect after-sales service, we believe that we can achieve win-win situation with you. Looking forward to your cooperation!
