Jgk Series Tinned Copper Cable Lug/Copper Electrical Cable Lug/Terminal Lug

Name: Jgk Series Tinned Copper Cable Lug/Copper Electrical Cable Lug/Terminal Lug
Brand: all-electronics-online.com
SKU: 834311585
Availability: InStock
Rating: 5 (133 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JGK series
Application:	Transmission of Electrical Signals
Material:	See Description
Brand:	Crop

Product Description

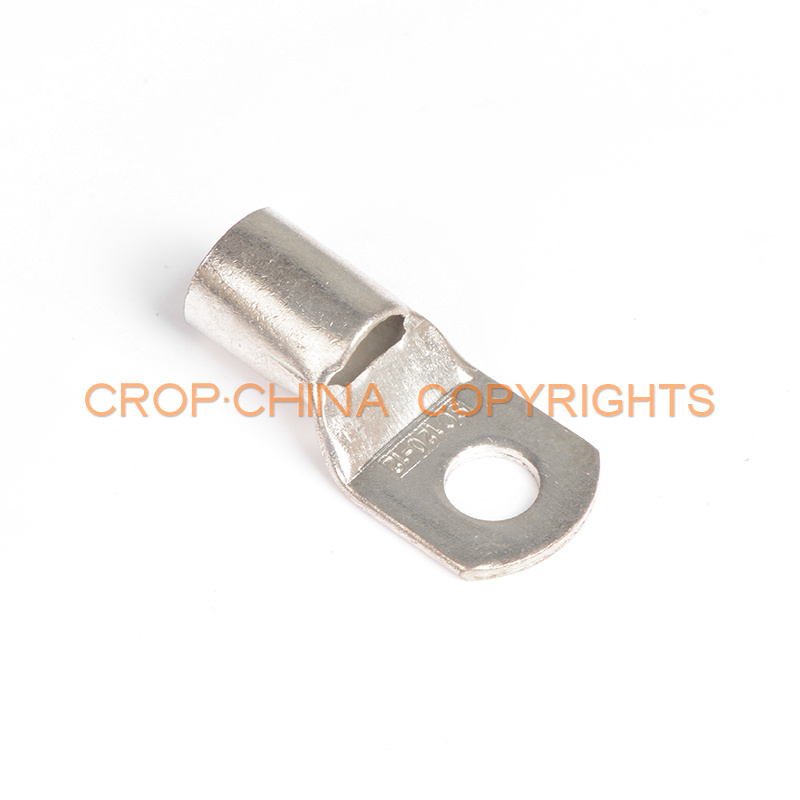

CABLE LUG (JGK/SC)

Description
Working temperature: -55°C ~ 150°C.

Material
Copper Tinned: 99.9% pure copper tube T2 and with Tinned coating.

Model	Ø	D(mm)	d(mm)	L(mm)
JGK(SC)-1.5	Ø4.2 Ø5.5	3.5	2.1	18
JGK(SC)-2.5	Ø4.2 Ø5.2 Ø6.2	4	2.6	19
JGK(SC)-4	Ø5.2 Ø6.2	4.8	3.4	21
JGK(SC)-6	Ø5.2 Ø6.2 Ø8.2	6	4.3	24
JGK(SC)-10	Ø6.2 Ø8.2 Ø10.5	6.8	5.2	25.5
JGK(SC)-16	Ø6.2 Ø8.2 Ø10.5	8	6.5	30.5
JGK(SC)-25	Ø6.2 Ø8.2 Ø10.5	9	7.5	34
JGK(SC)-35	Ø6.2 Ø8.2 Ø10.5 Ø12.5	10.5	8.2	38
JGK(SC)-50	Ø8.2 Ø10.5 Ø12.5	12.5	10	45
JGK(SC)-70	Ø8.2 Ø10.5 Ø12.5	14.5	12	50
JGK(SC)-95	Ø8.2 Ø10.5 Ø12.5	17	14	55.5
JGK(SC)-120	Ø10.5 Ø12.5 Ø14.5 Ø16.5	19	15	63
JGK(SC)-150	Ø10.5 Ø12.5 Ø14.5 Ø16.5	21	17	71
JGK(SC)-185	Ø12.5 Ø14.5 Ø16.5	23	19	78
JGK(SC)-240	Ø12.5 Ø14.5 Ø16.5	26	21	92
JGK(SC)-300	Ø16.5 Ø20.5	30	24	102
JGK(SC)-400	Ø16.5 Ø20.5	34	27	113
JGK(SC)-500	Ø16.5 Ø20.5	38	30	123
JGK(SC)-630	Ø20.5	45	35	135

CROP is a leading China company offering innovative technological solutions, services and products, primarily in the fields of telecommunications, electrical protection and energy. We combine with most profession team and technology. We insist that convenient, responsibility, oppertunity, profession can help our customer much more easy to find nice product in China.

CROP is a big family, we have our own laboratory, R&D department, international trade department, management department. There are 7 factories under our control, there are the real factory which only speciality factory.

Our business units include:

> Cable distribution cabinet

>Electrical safety and security device

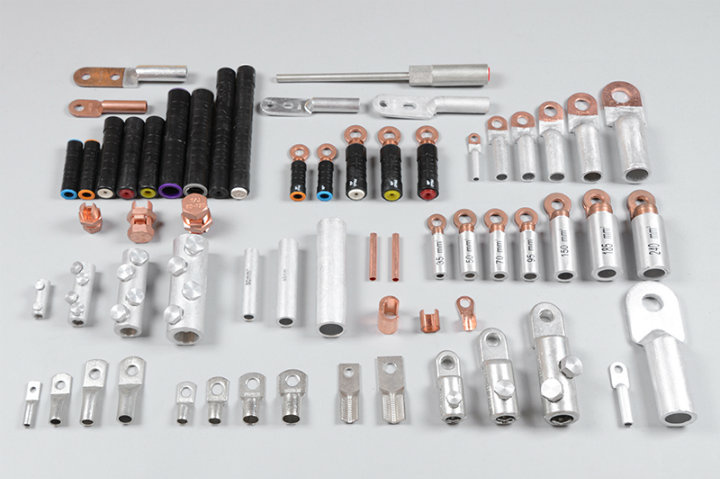

>Cable and cable accessories (ABC & ABC accessories)

>Transmission line

>Pole line hardware

>Heliformed line fittings

>Underground network

>Power transformer and current transformer

>Low voltage equipment

>Energy resources equipment

We have experience in those lines for more than ten years. All of our products are export to USA, Europe, Middle East. We have fully experience for exporting and we have CE, IEC and other referance certificate for each line products.

Crop is brand of hi-end product's without any compromises. With top quality product we offer of course same grade of services, support for tenders and help to find technological solutions for new markets.
