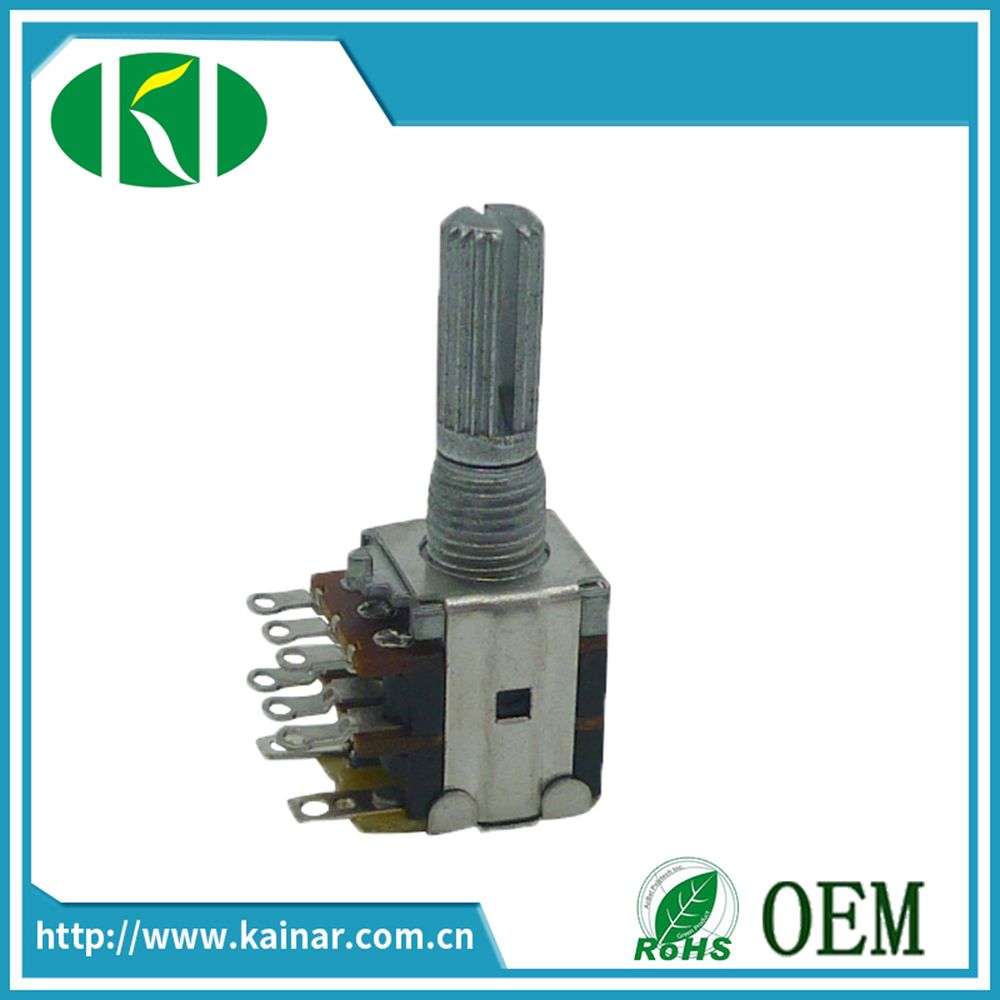

Jiangsu 12mm Dual Gang Rotary Volume Control 10k Linear Potentiometer

Name: Jiangsu 12mm Dual Gang Rotary Volume Control 10k Linear Potentiometer
Brand: all-electronics-online.com
SKU: 820106825
Availability: InStock
Rating: 4.4 (45 reviews)

Price:	US $ 0.35/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WH12-2-K2-2-18T
Tolerance Of Resistance:	±20%
Power Rating:	0.05W
Rated Volatge:	50V AC/DC 20V
Package Type:	Carton

Product Description

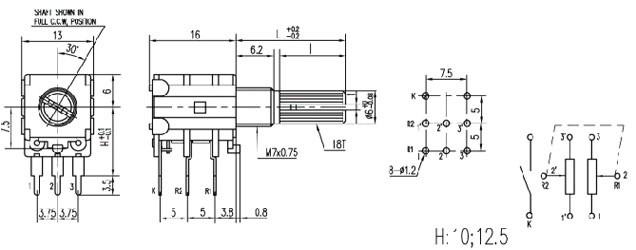

OUTLINE DRAWING

ELECTRICAL CHARACTERISTICS

Item	Item	Specification
1.1	Resistance value and tolerance of resistance	K ±20%
1.2	Load power	0.05 W
1.3	Rotational noise	47mV max
1.4	Insulation Resistance	>100MΩ At 300V DC
1.5	Withstanding Voltage	>1Minute At 250V AC
1.6	Max rated voltage	50V AC
1.7	Tracking error	0~-40 dB±3 dB
1.8	Residual resistance	R1,2<10Ω; R2,3<10Ω
1.9	Switch contact resistance	0.05mΩ
1.10	Switch power	12V1A

MECHANICAL CHARACTERISTICS

2.1	Dimensions	Refer to the separate product drawing
2.2	Total rotation angle	300±5°
2.3	Rotational Torque	20~200gf.cm
2.4	Switch working angle	30±5°
2.5	Switch torque	50~300gf.cm
2.6	Shaft Push& Pull Strength	≥6kgf
2.7	Click slip-out force
2.8	Shaft Wobble (mm p-p)	≤0.3mm
2.9	Shaft Stop Strength	>5kg.cm

DURABILITY CHARACTERISTICS

3.1	Rotating life	10,000 cycles
3.2	Storage Temperature Range	-30ºC~+80ºC
3.3	Operation Temperature Range	-20ºC~+70ºC
3.4	Soldering Heat Characteristic	260°C/2.5±0.5S

Keywords FAQ
What is your MOQ?
500pcs.
Where is your loading port?
Shanghai port or other port in China.
What is the lead time of this rotary encoder ?
Normally 10~15 days.
What is your company's available production capacity of this rotary encoder ?
500Kpcs/month
Could you provide sample of this rotary encoder ?
Of course,we are glad to provide free sample to you.

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
