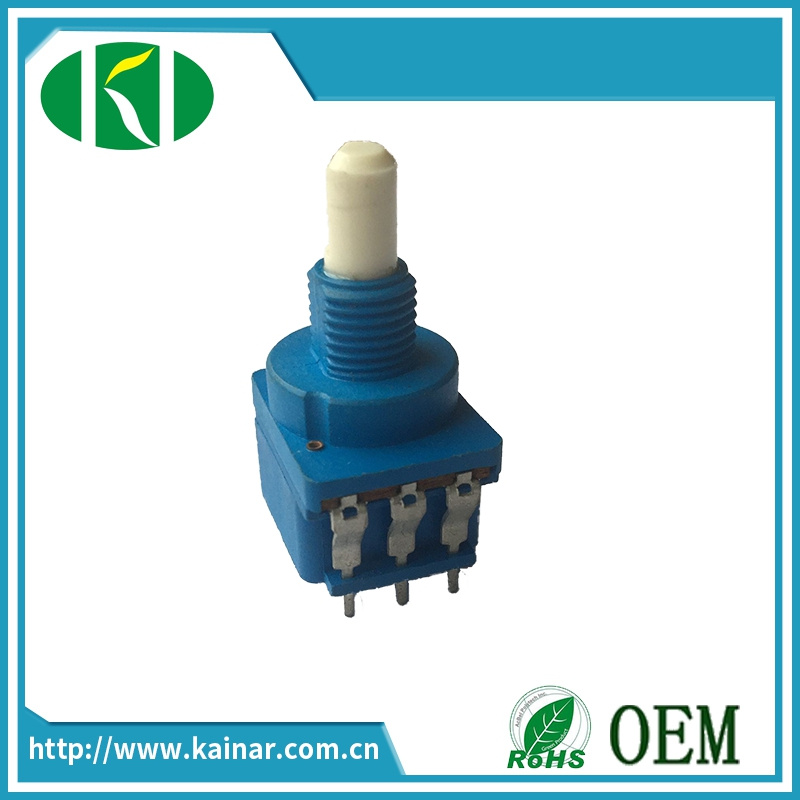

Jiangsu 17mm Rotary B10k Sealed Potentiometer with Switch for Dimmer

Jiangsu 17mm Rotary B10k Sealed Potentiometer with Switch for Dimmer
Price: US $ 0.55/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: WH16AK-1
Tolerance Of Resistance: ±20%
Power Rating: 0.2W
Rotational Noise: ≤47mv
Withstand Voltage: AC750V 1minute
Shaft Stopper Strength: 4kgf.Cm Min
Resistance: Variable Resistor
Installation: SMD Resistor
Material: Carbon Film Resistor
Type: Rotary Potentiometer
Function For Resistance: Variable Potentiometer
Package Type: Carton
Quantity: 50, 0000PCS
Shape: Picture
Brand: Kainar

Product Description

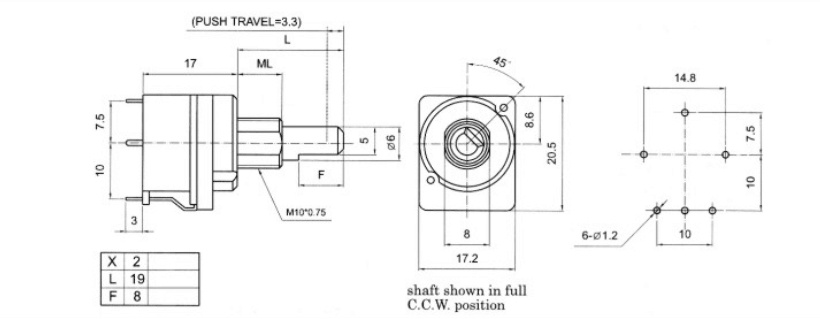

OUTLINE DRAWING
Mechanical specifications:
Total rotation angle:270°±5°
Rotation torque:2~20mN.m(20~200gf.cm)
Shaft stop strength:6Kgf.cm
Push pull strength:60N
Switch rated power:AC 250V 10A
Switch operating torque:50-300gf.cm

Electrical specifications:
Total resistance:1KΩ~500KΩ
Resistance taper:A,B,C
Resistance tolerance:±20% or ±10%
Rotational noise:≤47mV
Residual resistance:R≥250KΩ 0.1% max.of totalresistance
250KΩ>R>10KΩ 20Ω max.
10KΩ≥R 10Ω max.
Rotary toque:30-200gf.cm
Rated wattage:Curve B:0.125W
Other than B:0.063W
Switch action:80-250gf.cm
Dielectric:AC500V,1 minute
Insulation resistance:≥100MΩ at DC500V
Operating Temperature: -10 ~ 60ºC
Durability:
Rotary life:10,000cycles

Related Products










Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
