Changzhou Kainar Electronic Co., Ltd. >> Jiangsu Rotary Linear Potentiometer with Push Switch Wh116ak-1

Jiangsu Rotary Linear Potentiometer with Push Switch Wh116ak-1

Jiangsu Rotary Linear Potentiometer with Push Switch Wh116ak-1
Price: US $ 0.55/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: WH116AK-1
Total Rotation Angle: 270º
Operating Force: 20-200GF.Cm
Shaft Stopper Strength: 3kgf.Cm/Min
Rated Voltage: 200V 150V
Power Rating: 0.125W 0.06W
Color: Black
Resistance: Variable Resistor
Package Type: Carton
Brand: Kn

Product Description

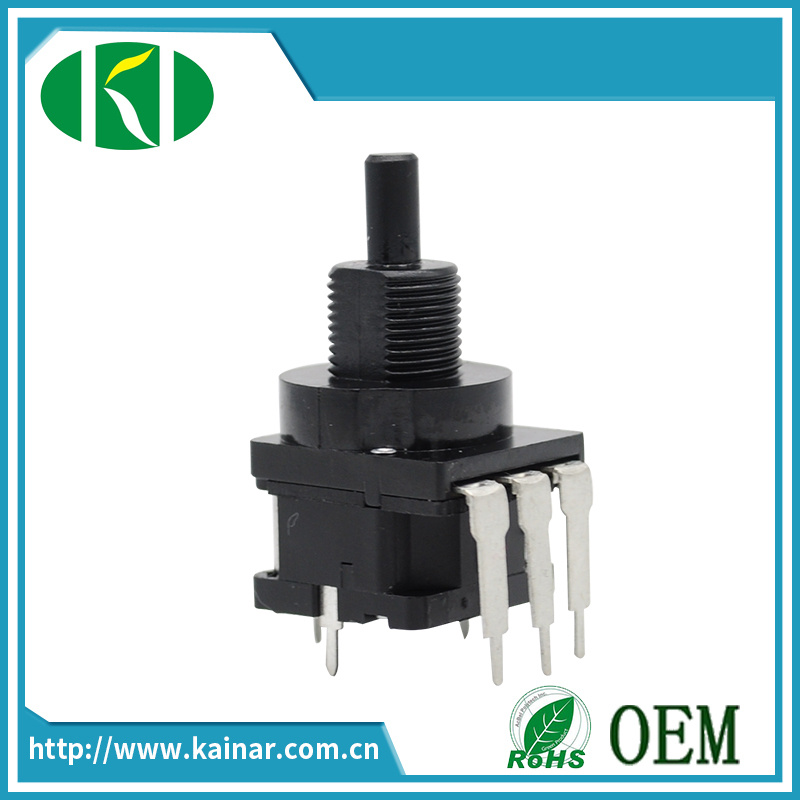

 jiangsu rotary linear potentiometer with push switch WH116AK-1

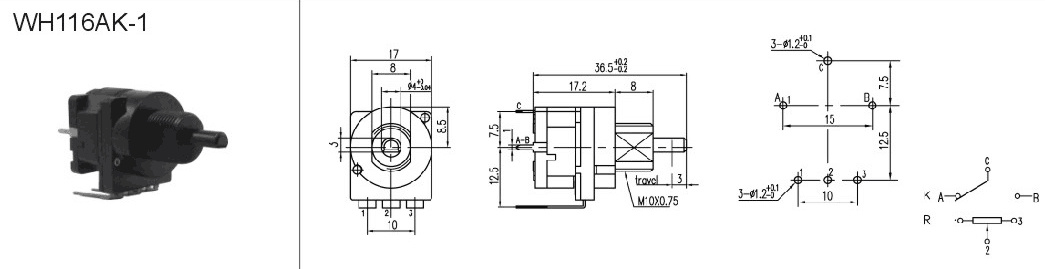

OUTLINE DRAWING


ELECTRICAL CHARACTERISTICS
ItemItem Specification
1.1Resistance value and tolerance of resistance     K ±20%
1.2Load power0.1 W
1.3Rotational noise47mV max
1.4Insulation Resistance>100MΩ  At  500V  DC
1.5Withstanding Voltage>1Minute   At  100V  AC
1.6Max rated voltage 100V AC
1.7Tracking error
1.8Residual resistance                  R1,2<10Ω; R2,3<10Ω
1.9Switch contact resistance0.05Ω
1.10Switch power250V  2.5A
MECHANICAL CHARACTERISTICS
2.1Dimensions Refer to the separate product drawing
2.2Total rotation angle270±5°
2.3Rotational Torque 20~200gf.cm
2.4Switch working angle3mm
2.5Switch torque50~300gf.cm
2.6Shaft Push& Pull Strength ≥5kgf
2.7Click slip-out force
2.8Shaft Wobble (mm p-p)≤0.3mm
2.9Shaft Stop Strength >3kg.cm
DURABILITY CHARACTERISTICS
3.1Rotating life10,000 cycles
3.2Storage Temperature Range-30ºC~+80ºC
3.3Operation Temperature Range-20ºC~+70ºC
3.4Soldering Heat Characteristic260°C/2.5±0.5S




























Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
