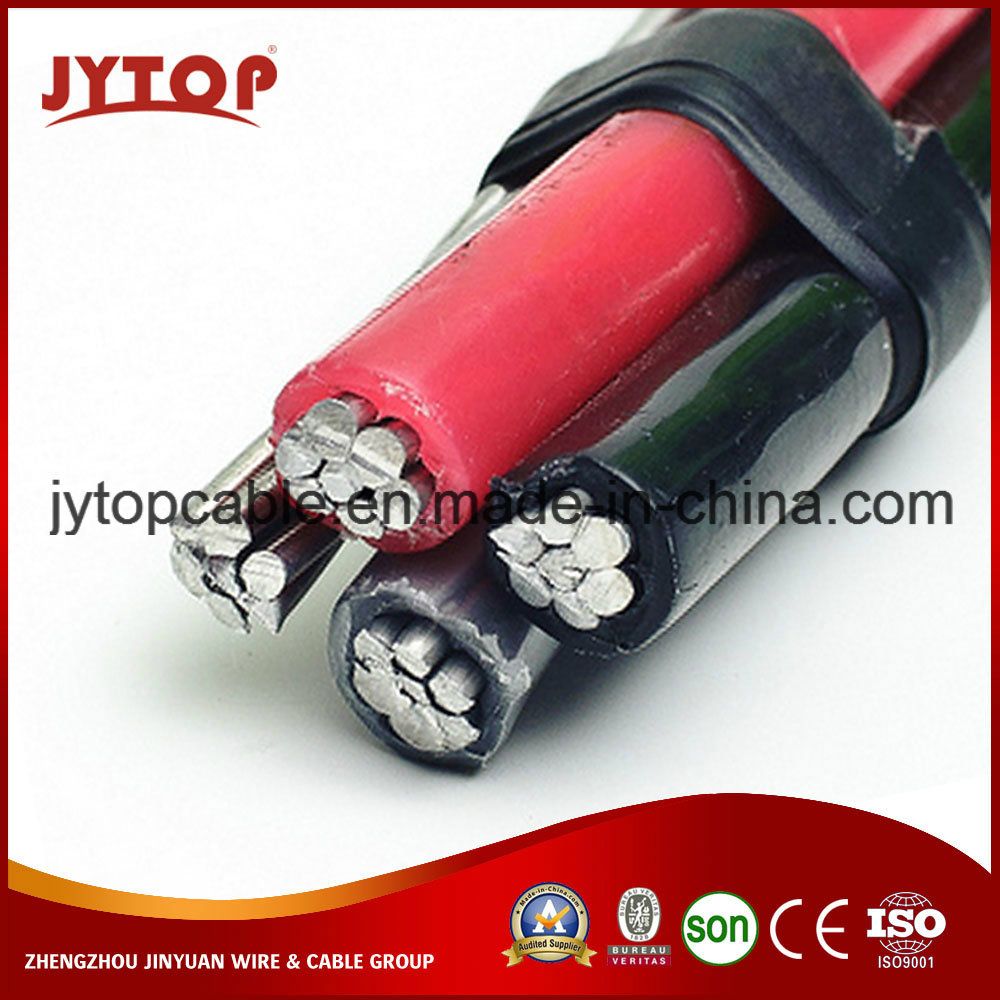

Jinyuan Cable Group Aluminum Drop Wire
| Price: |
US $ 0.34-0.36/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
ABC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| None: |
None |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Certification: |
CE |
| Sheath Material: |
None |
| Insulation Material: |
XLPE or PE |
| Range Of Application: |
Overhead |
| Brand: |
Jinyuan |
Product Description
jinyuan cable group aluminum drop wire:
Construction
Conductors are aluminum alloy 6201-T81, 1350-H19, or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density(HD) polyethylene or crosslinked polyethylene (XLP).
Standards
ASTM B-230, B-231, B-232 and B-399 & ICEA S-61-402 and S-66-524
NOTE:
If you want to know more details about this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
Code
Name | Size
AWG
or
MCM | Strand | Insulation
thickness
(mls) | Outside
diameter
(inches) | Rated
strength
(lbs) | Weight | *Ampacity
(Amps)
XLP |
| XLP | Poly |
| AAC |
| Apple | 6 | Solid | 30 | .222 | 445 | 33.0 | 32.0 | 105 |
| Pear | 4 | Solid | 30 | .264 | 675 | 48.5 | 47.3 | 135 |
| Apricot | 4 | 7/w | 30 | .285 | 790 | 51.5 | 50.8 | 140 |
| Peach | 2 | 7/w | 45 | .373 | 1220 | 87.1 | 84.0 | 180 |
| Quince | 1/0 | 7/w | 60 | .477 | 1790 | 140.7 | 135.6 | 240 |
| Orange | 2/0 | 7/w | 60 | .522 | 2260 | 171.9 | 166.2 | 280 |
| Fig | 3/0 | 7/w | 60 | .570 | 2740 | 210.5 | 204.0 | 320 |
| Olive | 4/0 | 7/w | 60 | .626 | 3450 | 258.7 | 251.4 | 370 |
| Pomegranate | 4/0 | 19/w | 60 | .632 | 3620 | 254.8 | 247.9 | 370 |
| Mulberry | 266.8 | 19/w | 60 | .692 | 4470 | 313.5 | 305.8 | 430 |
| Anona | 336.4 | 19/w | 60 | .766 | 5535 | 387.6 | 378.8 | 495 |
| Molles | 397.5 | 19/w | 75 | .852 | 6400 | 469.2 | 457.4 | 545 |
| Huckleberry | 477.0 | 37/w | 75 | .921 | 7820 | 550.0 | 537.5 | 610 |
| Paw Paw | 556.5 | 37/w | 75 | .982 | 8950 | 633.0 | 619.4 | 670 |
| Breadfruit | 636.0 | 61/w | 95 | 1.080 | 10510 | 742.6 | 724.7 | 720 |
| Persimmon | 795.0 | 61/w | 95 | 1.187 | 12900 | 910.0 | 890.0 | 825 |
| Grapefruit | 1033.5 | 61/w | 95 | 1.327 | 16500 | 1156.7 | 1133.8 | 970 |
Code
Name | Size
AWG
or
MCM | Strand | Insulation
thickness
(mls) | Outside
diameter
(inches) | Rated
strength
(lbs) | Weight | *Ampacity
(Amps)
|
| XLP | Poly |
| ACSR |
| Walnut | 6 | 6/1 | 30 | .258 | 1131 | 49 | 47 | 105 |
| Butternut | 4 | 6/1 | 30 | .303 | 1170 | 71.8 | 70.0 | 135 |
| Hickory | 4 | 7/1 | 30 | .309 | 2240 | 81.6 | 79.8 | 135 |
| Pignut | 2 | 6/1 | 45 | .397 | 2710 | 118.1 | 114.8 | 180 |
| Beech | 2 | 7/1 | 45 | .405 | 3460 | 134.1 | 130.7 | 180 |
| Chestnut | 1 | 6/1 | 45 | .434 | 3370 | 145.5 | 141.8 | 210 |
| Almond | 1/0 | 6/1 | 60 | .506 | 4160 | 190.4 | 184.9 | 235 |
| Pecan | 2/0 | 6/1 | 60 | .554 | 5040 | 234.2 | 227.9 | 270 |
| Filbert | 3/0 | 6/1 | 60 | .607 | 6290 | 288.5 | 281.4 | 305 |
| Buckeye | 4/0 | 6/1 | 60 | .666 | 7930 | 356.5 | 348.5 | 345 |
| Hackberry | 266.8 | 18/1 | 60 | .711 | 6540 | 354.8 | 346.8 | 435 |
| ALLOY 6201-T81 |
| Hornbeam | 4 | 7/w | 30 | .310 | 1480 | 62.1 | 60.1 | 145 |
| Linden | 2 | 7/w | 45 | .406 | 2520 | 96.1 | 93.3 | 190 |
| Oilnut | 1/0 | 7/w | 60 | .518 | 4010 | 166.1 | 160.0 | 250 |
| Waterash | 2/0 | 7/w | 60 | .567 | 4850 | 203.3 | 196.4 | 290 |
| Shellbark | 3/0 | 7/w | 60 | .622 | 6110 | 249.4 | 241.4 | 335 |
| Planetree | 4/0 | 7/w | 60 | .683 | 7700 | 307.3 | 298.1 | 385 |
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
