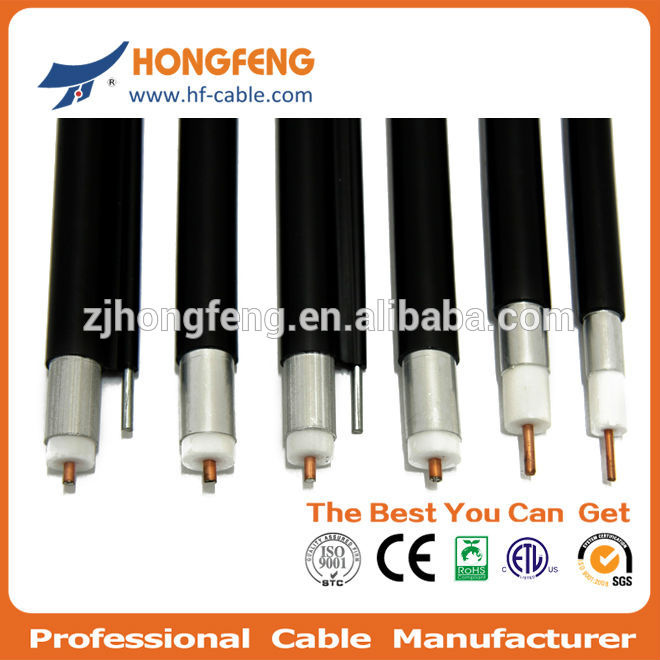

JIS Qr625 CATV Trunk Coaxial Cable

Name: JIS Qr625 CATV Trunk Coaxial Cable
Brand: all-electronics-online.com
SKU: 759110575
Availability: InStock
Rating: 4.8 (29 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QR625 cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	CCA
Braiding:	30%~95%
Shield:	Aluminum Tube
Apd:	Optional
Jacket:	PE
Colour:	Black
Application:	RF Cable
Cover Material:	PE
Certification:	ETL
Type:	Coaxial Cable
Conductor Material:	CCA

Product Description

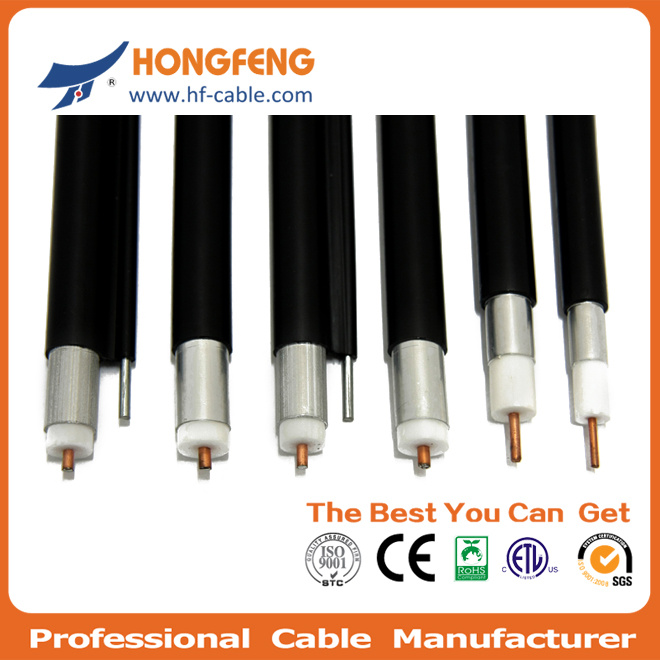

Trunk cable Product Description

Wire Specification:
A. 2.77mm ± 0.03 CCA + Foamed PE + 11.43mm ± 0.3 Al Tube + 14.22mm ± 0.3 PE
B. 2.77mm ± 0.03 CCA + Foamed PE + 11.43mm ± 0.3 Al Tube + 14.22mm ± 0.3 PE +2.77mmSteel Messenger
C. 2.77mm ± 0.03 CCA + Foamed PE + 11.43mm ± 0.3 Al Tube + Flooding Compound + 14.22mm ± 0.3 PE
D. Customers' specifications are welcomed
-Other mode: QR412 and QR540 trunk cable are also available

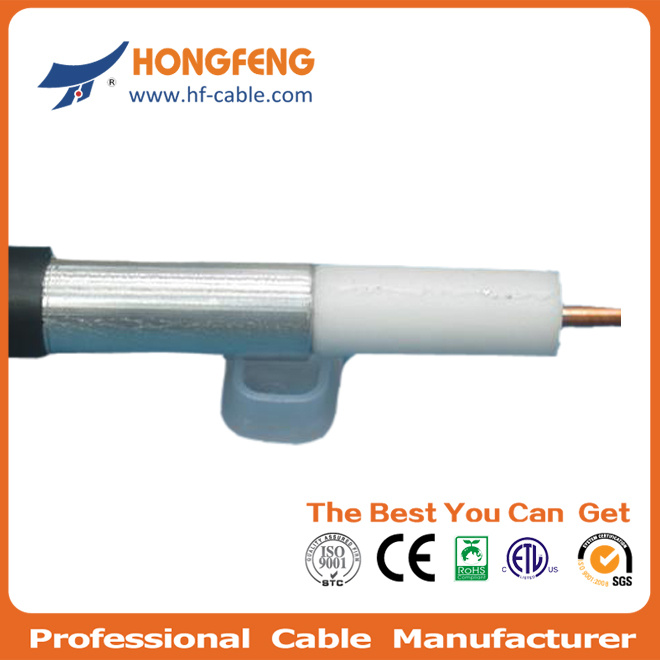

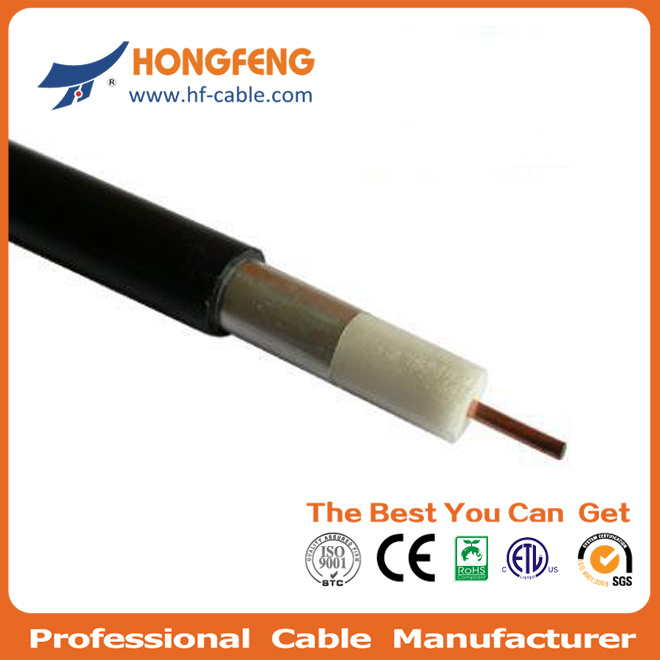

Construction:

Center Conductor:	3.48mm Copper Clad Aluminum
Dielectric:	14.35mm Micro-cellular Foam PE
Shield:	0.76mm Solid Aluminum Tube
Jacket:	17.40mm PE Jacket
Messenger	2.77mm Steel Wire

Mechanical characteristics:
Minimum bend radius: Standard 6.0 inches (15.2cm)
Minimum bend radius: Bonded 3.5 inches (8.9cm)
Maximum pulling tension: 300lbs (136kgf)

Electrical characteristics:
Capacitance: 15.3 ± 1.0pf/ft (50 ± 3.0nf/km)
Impedance: 75 ± 2Ω
Propagation velocity: 87% nominal
Nominal DC loop resistance at 68° F: 1.72Ω/1, 000ft (5.64Ω/km)

Impedance:	75.0 +/- 3.0 Ohms
Capacitance:	50.0+/-3.0 nF/km
Velocity of propagation:	87.0% Nominal

Packing:
Packing lengths: 500, 700, 900, and 1, 000m wooden reel or more available
Other packing available according to client's request

Application: Cable for TV, CATV, SAT TV networks.

Attenuation: @ 68 ºF (20 ºC)

Frequency (MHz)	Max value (db/100m)	Max value (db/100ft)
5	0.43	0.13
55	1.51	0.46
83	1.87	0.57
211	3.02	0.92
250	3.28	1.00
300	3.54	1.08
350	3.87	1.18
400	4.17	1.27
450	4.43	1.35
500	4.69	1.43
550	4.92	1.50
600	5.18	1.58
750	5.84	1.78
865	6.33	1.93
1000	6.79	2.07

Coaxial Cables:
1) Mil-C-17 Standard Cable: RG6AU, RG59BU, RG11AU, RG58AU, RG58CU, RG174AU, RG213U, RG214U;
2) RG Type 50OHM Coaxial Cable: RG8, RG58, RG142, RG174, RG213, RG214, etc.
3) RG Type 75OHM Coaxial Cable: RG59, RG6, RG7, RG11, etc
4) Trunk Cable: QR320. QR540, P3.412, P3.500, P3.565, etc.
5) RF Coaxial Cable LMR: LMR195, LMR200, LMR300, LMR400, LMR500, LMR600
5) RF Coaxial Cable D-FB: 3D-FB, 5D-FB, 7D-FB, 8D-FB, 10D-FB, 12D-FB, etc.
6) Combined Cable: RG59+2C, RG6+2C, RG6+CAT5e, 2RG6+2CAT5e
7) Network Cable, LAN Cable: CAT3, CAT5, CAT5e, CAT6, Multi Pairs,
8) JIS Standard Cable: 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, etc.
9) French Standard Cable: 11VAtc/PAtC, 17VAtc/PAtC, 19VAtc/PAtC, 21VAtc/PAtC, KX6/A, KX8, etc.
10) British Standard Cable: BT3002, BT3002*8, BT3002*16, CT100, CT125, CT165, CT167, URM57, URM67, etc
