| Prod Model: |
Jiukai High Quality UL 1 Core Tinned Copper Wire |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
32-16AWG Solid/Stardard Bare Copper/Tinned Cooper |
| Insulation: |
PVC |
| Color: |
Any |
| Voltage Rating: |
300V |
| Test Voltage: |
2000V |
| Temperature: |
80c |
| Flame Test: |
Pass UL VW-1 & CSA FT1 Vertical Flammability |
| Application Standard: |
UL 758, UL 1581 & CSA C22.2 No.210.2 |
| Name: |
UL Certification Tinned Copper Wire |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Jiukai or OEM |
Product Description

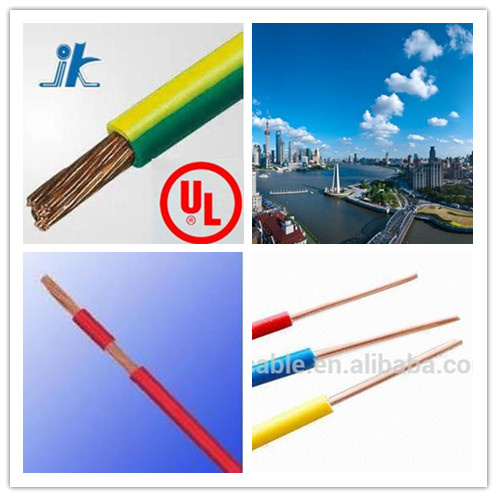

Jiukai High Quality Wire Manufacturer UL Certification Tinned Copper Wire
Product Description & Parameters
For general purpose internal wiring of electronic and electrical equipment, Max temperature 60C/80C
The oil resistance type cable is available
Uniform thickness of wire to ensure easy stripping and cutting. Oil-resistance to acid and alkali, moisture proof, mould proof, environmental etc.
Part-N0 | Conductor | Insulation | Insulation | Standard length | Conductor Resistance |
| AWG | No./mm | Thickness(mm) | Diameter(mm) | FT/coil | M/coil | at 20C MAX(Ω/km) |
| 003101001 | 30 | 7/0.1 | 0.41 | 1.1 | 4000 | 1220 | 381 |
| 003101002 | 28 | 7/0.127 | 0.41 | 1.2 | 4000 | 1220 | 239 |
| 003101003 | 26 | 7/0.160 | 0.41 | 1.3 | 4000 | 610 | 150 |
| 003101004 | 24 | 11/0.160 | 0.41 | 1.4 | 2000 | 610 | 94.2 |
| 003101005 | 22 | 17/0.160 | 0.41 | 1.6 | 2000 | 610 | 55.4 |
| 003101006 | 20 | 26/0.160 | 0.41 | 1.8 | 2000 | 610 | 36.7 |
| 003101007 | 18 | 41/0.160 | 0.41 | 2 | 2000 | 610 | 23.2 |
| 003101008 | 16 | 26/0.254 | 0.41 | 2.3 | 2000 | 610 | 14.6 |
| 003101009 | 26 | 7/0.160 | 0.41 | 1.3 | 4000 | 1220 | 140 |
| 003101010 | 24 | 7/0.200 | 0.41 | 1.4 | 2000 | 610 | 87.51 |
| 003101011 | 22 | 7/0.254 | 0.41 | 1.6 | 2000 | 610 | 55.27 |
| 003101012 | 20 | 7/0.318 | 0.41 | 1.8 | 2000 | 610 | 34.53 |
| 003101013 | 18 | 7/0.391 | 0.41 | 2.1 | 2000 | 610 | 21.76 |
| 003101014 | 16 | 7/0.491 | 0.41 | 2.3 | 2000 | 610 | 13.72 |
| 003101015 | 26 | 1/0.404 | 0.41 | 1.25 | 4000 | 1220 | 143 |
| 003101016 | 24 | 1/0.511 | 0.41 | 1.35 | 4000 | 1220 | 89.3 |
| 003101017 | 22 | 1/0.643 | 0.41 | 1.5 | 2000 | 610 | 56.4 |
| 003101018 | 20 | 1/0.813 | 0.41 | 1.65 | 2000 | 610 | 35.2 |
| 003101018 | 18 | 1/0.020 | 0.41 | 1.85 | 2000 | 610 | 22.2 |
| 003101020 | 16 | 1/1.290 | 0.41 | 2.15 | 2000 | 610 | 14 |
Packaging & Shipping
Packaging Details:Delivery Detail:
Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requiremet. |
| 7-15 days |
Certification
We passed UL, CCC,CE,VED etc. UL-E342399
