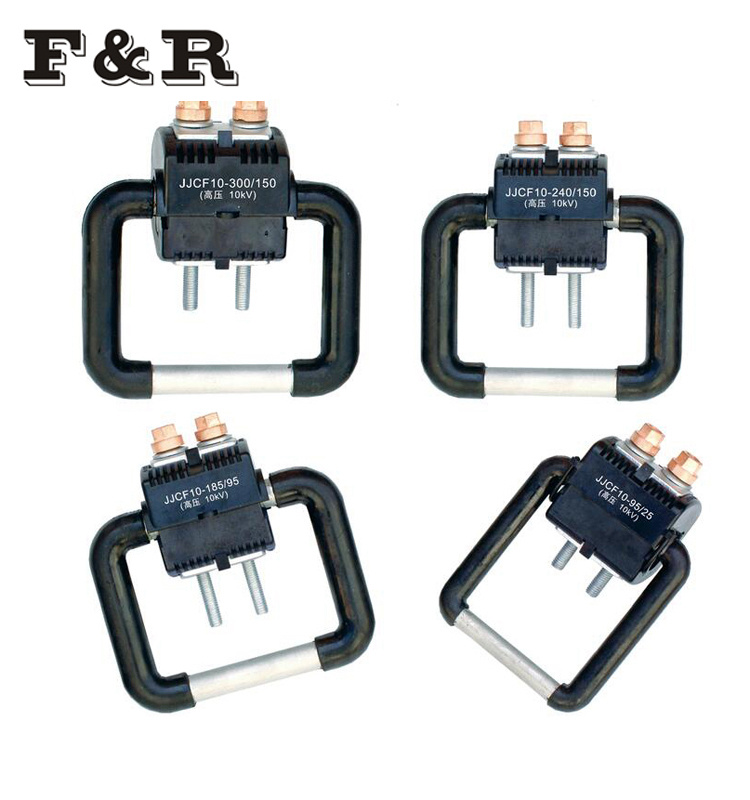

Jjcf 10 Piercing Granding Protection

Name: Jjcf 10 Piercing Granding Protection
Brand: all-electronics-online.com
SKU: 734373502
Availability: InStock
Rating: 4.3 (104 reviews)

Price:	US $ 3-6/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JJCF 10
Type:	Socket Terminals
Material:	Copper Galvanized
Application:	Conduct Electricity
Brand:	F & R

Product Description

General of insulation piercing connrctor (IPC):

1. Piercing connector, simple installation , need not strip the cable coat

2. Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead.

3. Self-seam frame,wetproof,waterproof,and anti-corrosion,extend the using life of insulated lead and connector.

4. Adopted special connecting tablet, apply to joint of Cu(AI) and Cu(AI) or Cu and AI.

5. Small electric connecting resistance, connecting resistance less than 2.5 times of the resistance

of branch conductor with the same length . in accordance with the standard DL/T765.1-2001

6. Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12kV.

7. Arc surface design , apply to connection with the same (differnet) diameter, wide connection scope (0.75mm2-400mm2/td)

Fivefine power Established in 1998, which is the national non-regional corporation that have the advantages of install-ing simply, using conveniently, beautiful apprearance, high reliability, easy to whole loyout, simply outline design, shorten the R & Dperiodes, etc, We are going in for the development, production and sale of the electric connection protection system products of industrial automated equipment.

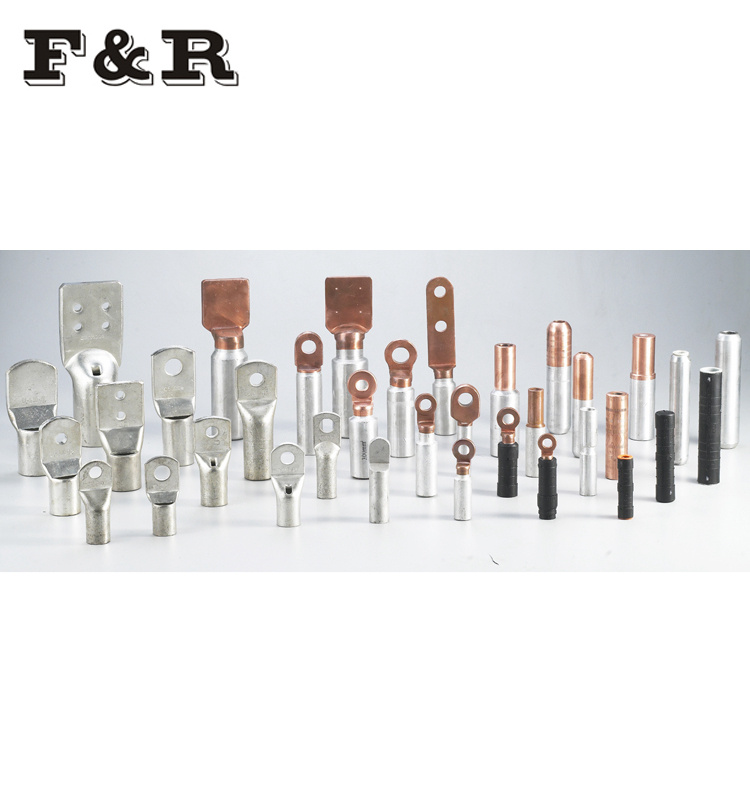

Business items: Kind of machine tool energy chains, various rectifiers, diodes, thyristor, power semiconductor modules, and cable accessories & power fitting, such as cable lugs, clamps, connector, heat shrinkable tube, cable tie, egg incubator. etc.

The corporation has been certified to ISO9001: 2000 and ISO 14000. The products have owned production license and manufactured according to international standard. All products have passed test by center of Quality inspection of electric power of nation electric power corporation, China electric Power research Institute and Xian high-voltage Research Institute. etc.
