Jjw/Jsw Series Precision Purifying Single-Phase AC Voltage Stabilizer
| Price: |
US $ 10.5-117.53PIECE |
| Min Order: |
10PIECE |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
JJW-D1000VA |
| Suitable Inpuut Range: |
160~280V |
| Output Voltage: |
220V±0.5% |
| Power Source Voltage Effect: |
|
| Load Effect: |
|
| Wave-Form Distortion: |
|
| Response Time: |
|
| Efficency: |
>/= 92%(Full Load) |
| Over Voltage Alarm Protection: |
246+/- 4V(Output) |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
Jjw |
| Frequency: |
50Hz+/- 5% |
| Brand: |
Honle |
Product Description

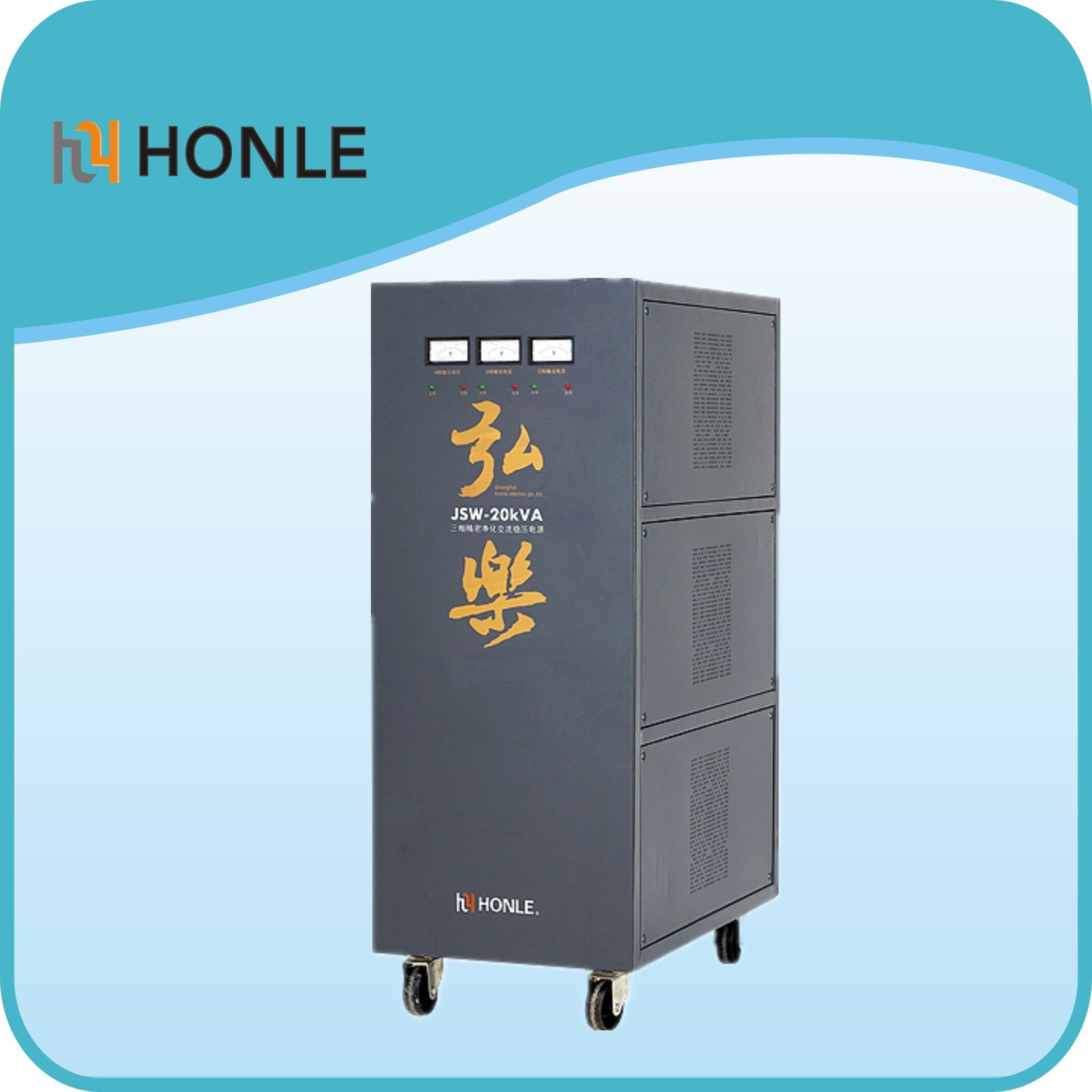

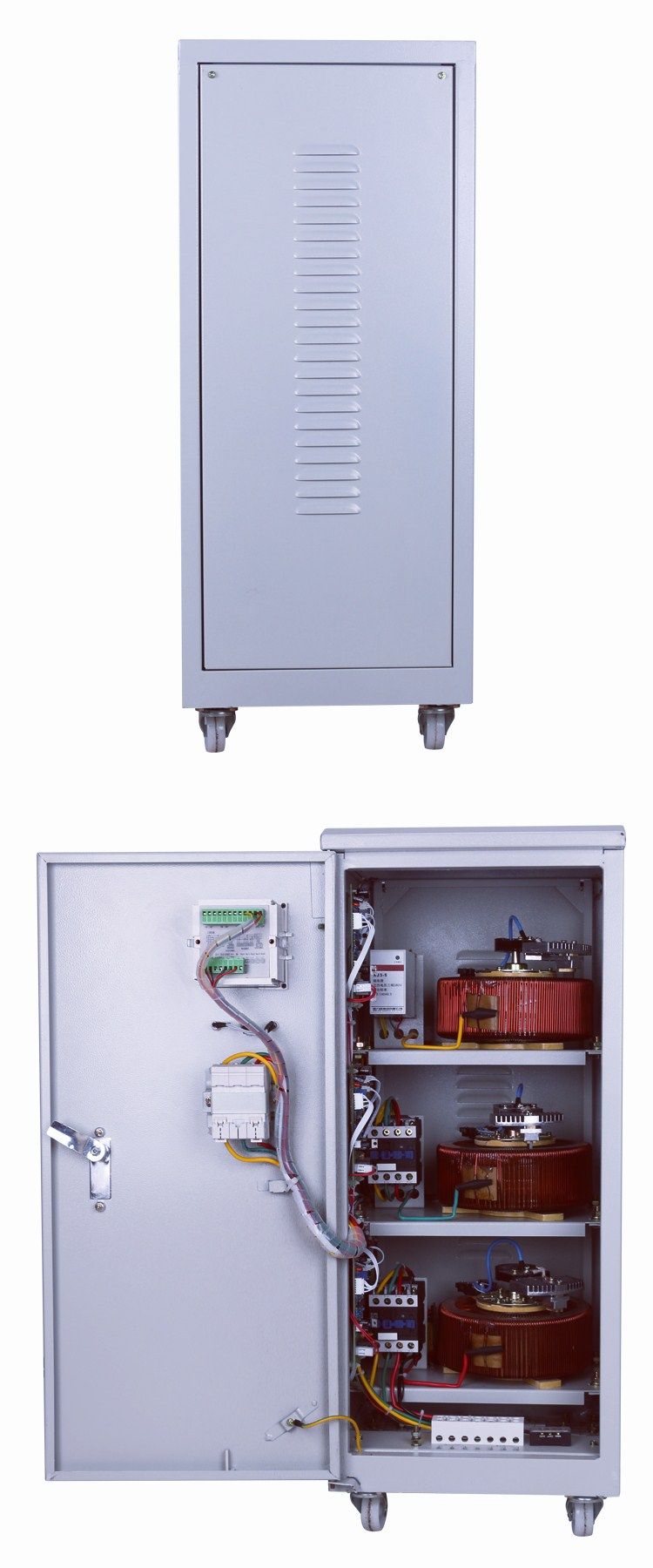

JJW/JSW Series Precision Purifying Single-phase AC Voltage StabilizerMain Advantage
A. Wide regulation range: Single-phase185V~255V, three-phase320V~440V;
B. High regulation accuracy: <± 1%;
C. Strong anti-interference ability: Can restrain various noises and peak voltage in the electric network;
D. Short response time: <0.1s;
E. High efficiency: >90%;
F. Test functions of the output and input voltage are clear and visual.
Main Technical Parameter | lnput voltage | Single-phase 185V-250V Three-phase 320-430V | Efficiency | >90% |
| Waveform distortion | ≤0.5% |
| Output voltage | Single-phase 220,accuracy1% Three-phase 220,accuracy1% | Response time | 200ms-100ms≤5V |
| Spike voltage absorption | lnput 500v13 μSOutput |
| Frequency | 50Hz±2Hz | Environment temp | -10--+40 |
| Over voltage protection value | Single-phase 246±4V three-phase426 ±7V | Temperature rise | <60 |
| Dielectric strength | 1500V/min |
| Load feeect | ≤±0.5% | lnsulation resistance | Single-phase>5MΩThree-phase>2MΩ |
FAQ
Q 1. what's the payment terms?
A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS,Son cap

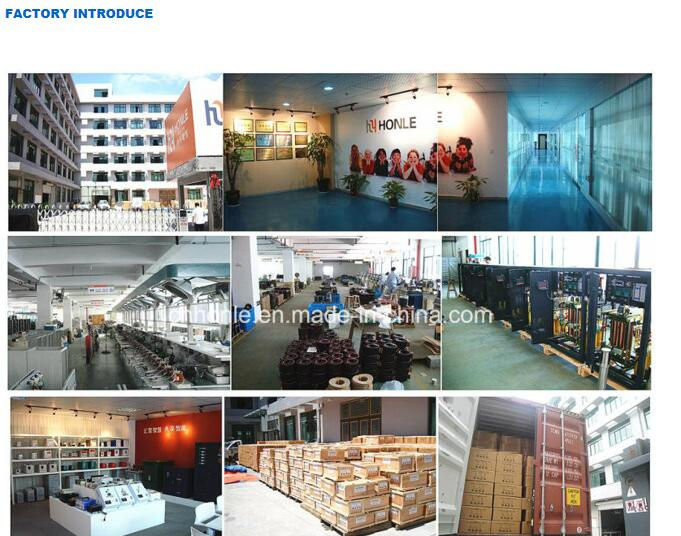

Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.
Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.
The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
