Jk42bls02 52W 24V 4000rpm 42mm Brushless DC Motor for CNC Machine

Name: Jk42bls02 52W 24V 4000rpm 42mm Brushless DC Motor for CNC Machine
Brand: all-electronics-online.com
SKU: 837792965
Availability: InStock
Rating: 4.3 (20 reviews)

Price:	US $ 14.5-23/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Jk42bls02
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brushless
Function:	Run
Certification:	Ce, RoHS
Brand:	Jkong Motor

Product Description

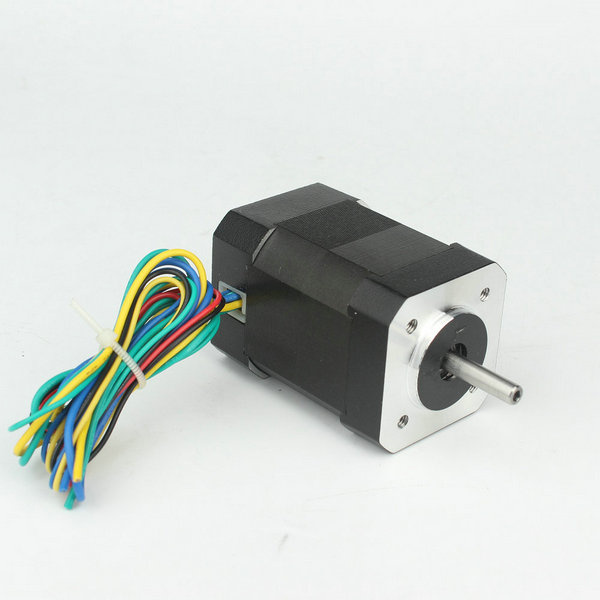

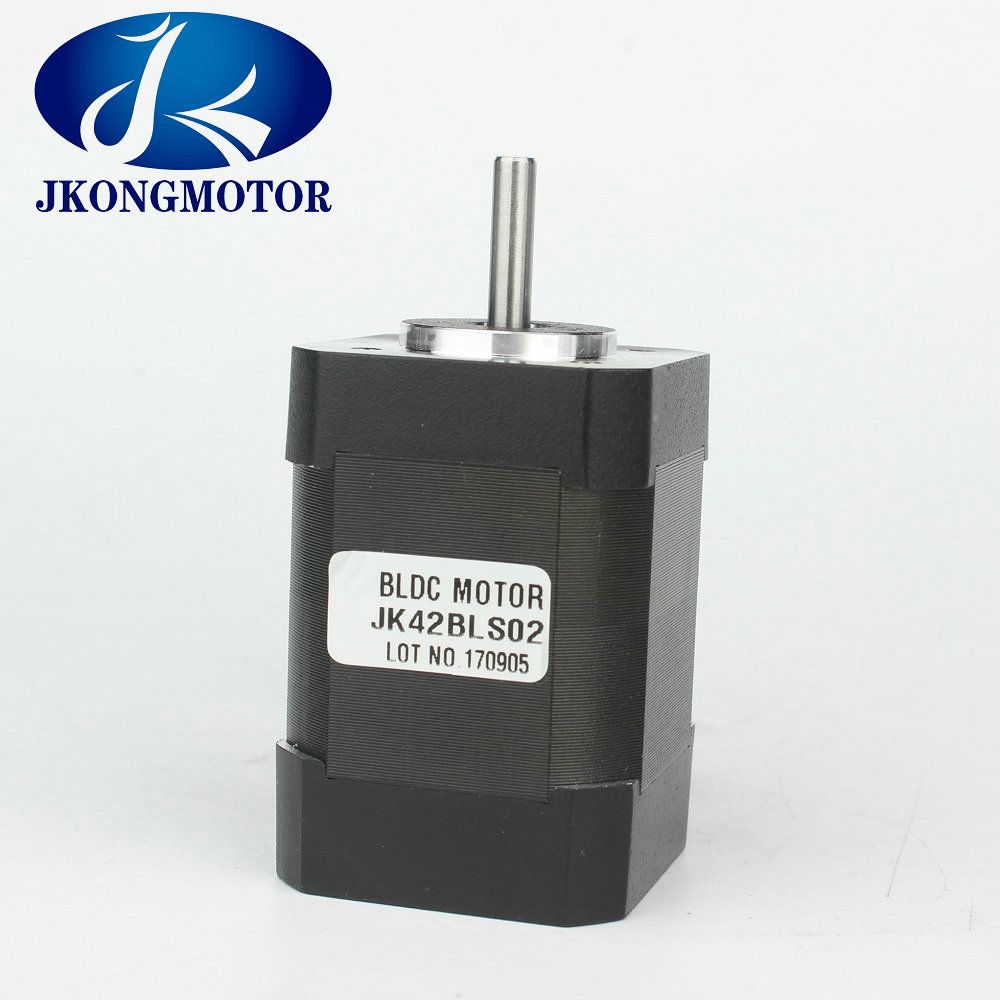

JK42BLS02 52W 24V 4000RPM 42mm Brushless Dc Motor

Product Description:

Electrical Specification:
		Model
Specification	Unit	JK42BLS01	JK42BLS02	JK42BLS03	JK42BLS04
Number Of Phase	Phase	3
Number Of Poles	Poles	8
Rated Voltage	VDC	24
Rated Speed	Rpm	4000
Rated Torque	N.m	0.0625	0.125	0.185	0.25
Rated Current	Amps	1.8	3.3	4.8	6.3
Rated Power	W	26	52.5	77.5	105
Peak Torque	N.m	0.19	0.38	0.56	0.75
Peak Current	Amps	5.4	10.6	15.5	20
Back E.M.F	V/Krpm	4.1	4.2	4.3	4.3
Torque Constant	N.m/A	0.039	0.04	0.041	0.041
Rotor Inertia	g.cm^2	24	48	72	96
Body Length	mm	41	61	81	100
Weight	Kg	0.3	0.45	0.65	0.8
Sensor	Honeywell
Insulation Class	B
Degree of Protection	IP30
Storage Temperature	-25~+70ºC
Operating Temperature	-15~+50ºC
Working Humidity	85% or under 85% RH(non condensing)
Working Environment	outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust
Altitude	1000m or under 1000m

General Specification
Item	Specification
Winding type	Delta
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	28N @20mm form the flange
Max.axial force	10N
Insulation class	Class B
Dielectric strength	500VDC for one minute
Insulation resistance	100MΩ Min.,500VDC

Products of special request can be made according to the customer request !

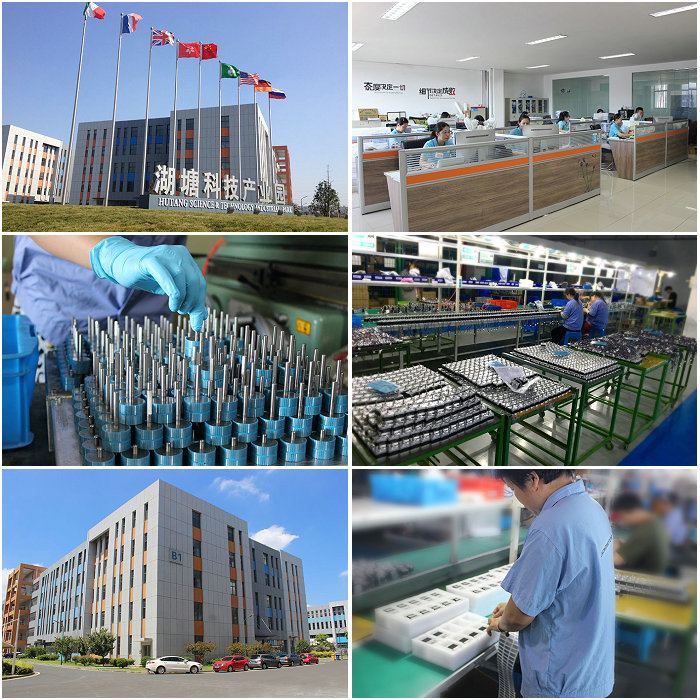

company information:

our certification:

Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
