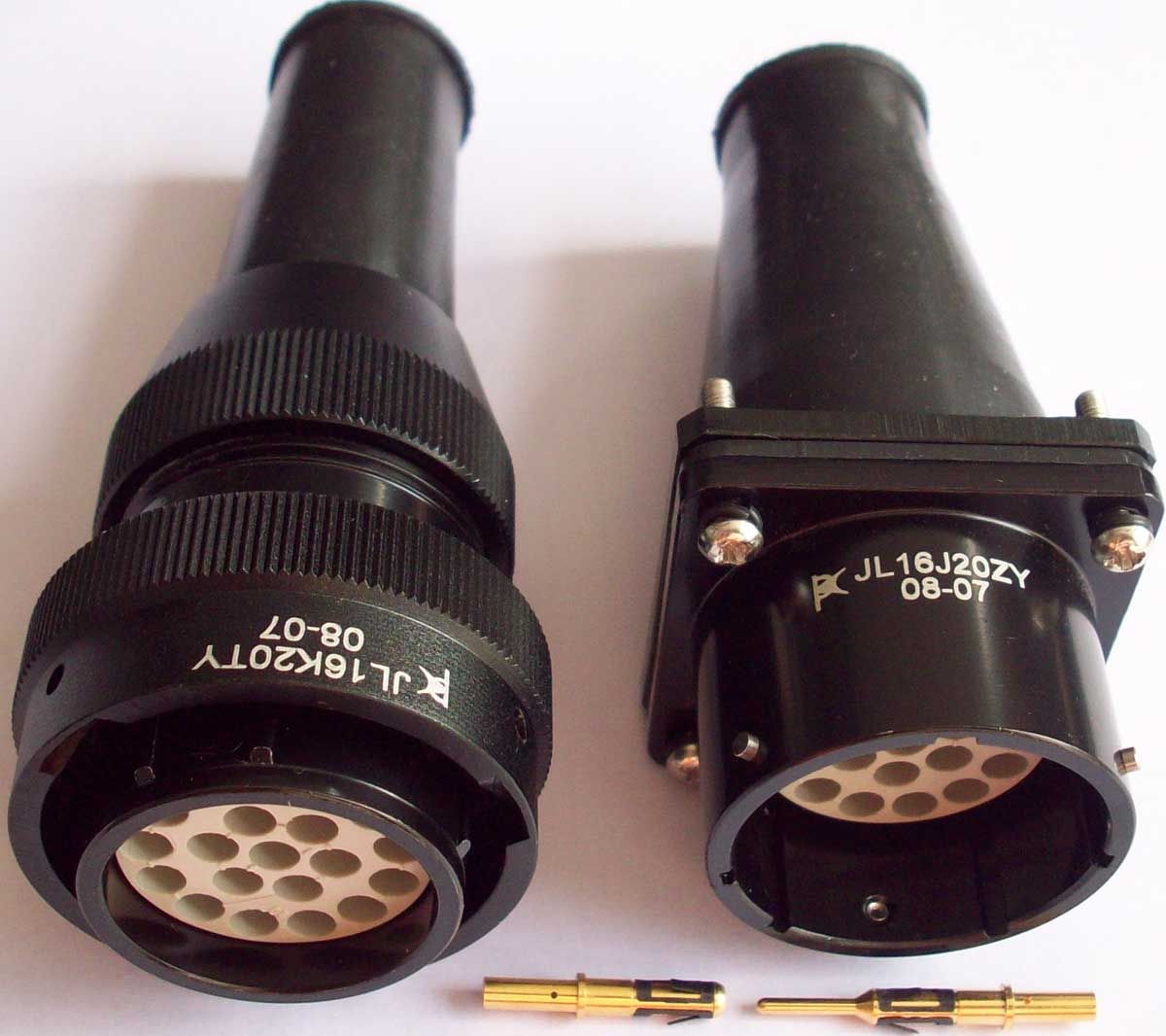

Jl16 Series Bayonet Connecting Circular Connectors

Name: Jl16 Series Bayonet Connecting Circular Connectors
Brand: all-electronics-online.com
SKU: 648921505
Availability: InStock
Rating: 4.4 (133 reviews)

Price:	US $ 29.5/Set
Trade Terms:	3 WEEKS
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JL16 Series

Product Description

JL16 series circular connectors use the high reliable hyperboloid socket as the contacts. This connector has the features of low contact resistance, soft force of mating and unmating, anti-vibration, shock-proof, high reliability, etc. The main technical characteristics is in accordance with Ministry of Railway standard TB/T2761. The type of connection between socket and plug is bayonet coupling. This product is widely used for the connection between electrical and electronic equipments for the railway, electricity, etc. Both plug and receptacle may be mounted with pins or sockets.

Product Ordering
JL16 J 20 Z Y
1 2 3 4 5
1. Name of series: JL16
2. J_Pin, K_Socket
3. Number of contacts: 4,5,10, 12, 14, 20
4. T_Plug, Z_Receptacle
5. Y_Crimp

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
