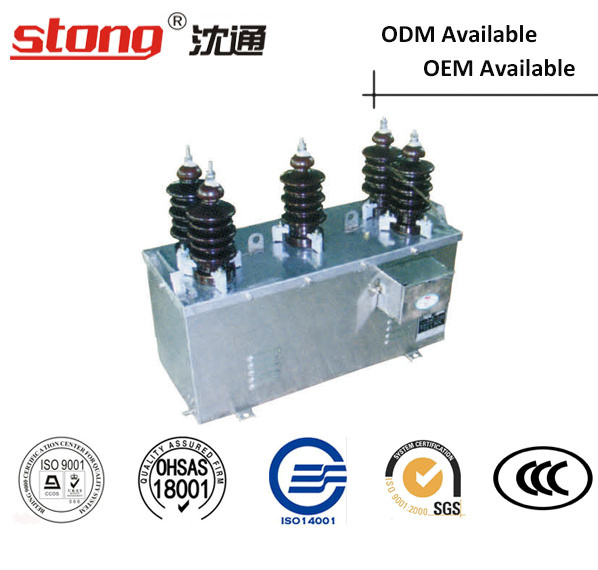

Jlszw-6, 10 Outdoor Combined Transformer Power Metering Box
| Price: |
US $ 500/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JLSZW-6, 10 |
| Application: |
Instrument |
| Type: |
Voltage Transformer |
| Phase: |
Three |
Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling DirectlyItem No. | Picture | Description |
JLSZW-6/12 Combination Instrument Transformer | Summary | The JLSZW-6/12 are fitted with voltage and current instrument transformers. The product is used in three-phase systems of rated frequency of 50/60Hz and rated voltage of 12kV. The product is alternative to JLSJW-12 oil-immersed combination transformer. The products are used in metering electric energy, voltage controlling and relay protection applications. The products are suitable for outdoor transformer substations in rural areas, as well as for industrial services. It is alternative to JLS-12 oil immersed combination transformer. |
| Structure feature | This model transformer (also called dosimeter) is fitted with voltage and current transformers. The transformer is outdoor cast in epoxy resin, fully enclosed and in supporting type structure. For its special casting technique, the product is excellent in electricity-arc and UV ray resistance, long life expectancy, reliable and cost- efficient. T he units a re composed of two single-phase and fully insulated voltage mutual inductors, which are shaped in 'V'. Two current mutual inductors are respectively connected to phase A or C. and the secondary windings of CT units are tapped for varying current ratios. The outlet terminal of secondary windings is covered with a protective cover. It is convenient, safe and reliable for connecting, and efficient in prevention of stealing electricity. Four screws are located on the base plate for fixing purpose. |
Technical specification Arrester is required to be installed, for protection purpose, within 1 meter of the transformer. Type | Rated voltage ratio (A) | Accuracy classes | Rated output (VA) | Limit output | Rated insulation level (Kv) | JLSZW-6/12 | 3000/100 | 02 0.5 | 15 30 | 300 | 3.6/25/40 | 6000/100 | 7.2/32/60 | 10000/100 | 12/42/75 |
|
Main Technical Parameters
Please Contact us to get.Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switch Console, Column intelligent vacuum circuit breaker, indoor vacuum switch, HV/LV current/voltage transformers, High voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
