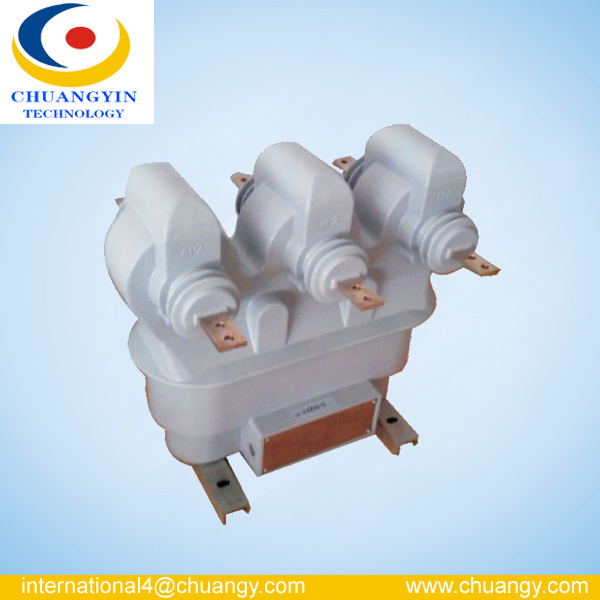

Jlszx8-17.5W Three-Phase Outdoor Cycloaliphatic Epoxy Resin Casting Combined Transformer

Name: Jlszx8-17.5W Three-Phase Outdoor Cycloaliphatic Epoxy Resin Casting Combined Transformer
Brand: all-electronics-online.com
SKU: 788647555
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 420-440/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Jlszx8-17.5W
Current Transformer:	CT
Epoxy Resin:	17.5¬24
24kv:	Outdoor
12kv:	25-20k Hz 45-600Hz
China:	Factory
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

JLSZX8-12W, JLSZX8-17.5W HT METERING UNIT SET

Description

JLSZX8-12W three-phase outdoor cycloaliphatic epoxy resin casting combined transformer (also called HT Metering Unit ), is made up of made up of three single phase semi insulating PTs(Y0-Y0 connection ) and three CTs ( cascade at A, B and C) ; is widely used outdoor for measuring current and electric energy in the electric system with the frequency 50Hz or 60 Hz and highest voltage for equipment 12kV(GB)or 17.5kV(IEC). The product has the feature of high precision, low temperature rise, fireproofing, explosion protection, electricity theft prevention and good dynamic hot stability etc.

Main technical parameter

Voltage transformer
1. Power factor: COSΦ=0.8(lagging)
2. Creepage Distance:515mm
3. Type
4. Weight: 152kg
5. Main parameter pls see as follow:

Model	Rated voltage ratio (V)	Phase	Accuracy class Rated output (VA)	Limit output(VA)	Rated Insulation level (kV)
JLSZX8-12W JLSZX8-17.5W	10000/√3/100/√3 11000/√3/110/√3 15000/√3/110/√3	Three phase	0.2---3× 15 0.5---3× 30 1---3× 60	3× 300	12/42/75(GB) 17.5/38/95(IEC)

Current transformer
1. Rated secondary current: 5A,1A
2. Can be single ratio or multi ratio.
3. Main parameter pls see as follow:

Rated primary current(A)		Rated short-time thermal current (Ith)(kA/1S)	Rated dynamic current(kA Peak)	Accuracy class Rated output(VA)
Double ratio	Single ratio	Rated short-time thermal current (Ith)(kA/1S)	Rated dynamic current(kA Peak)	Accuracy class Rated output(VA)
7.5-15	7.5	1.0	2.5	0.2(S)---15 0.5S---15 0.5----10 0.5---15
10-20	10,15	1.5	3.75
20-40	20,25	3.0	7.5
30-50	30	4.0	10
50-100	50,75	7.5	18.5
100-150	100	12.5	31.5
150-200	150	17.5	43.5
200-300	200,300	25	63
400-600	400,500,600	50	80
500-700	700	60	80
600-800	800	70	80
800-1000	1000	80	100

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

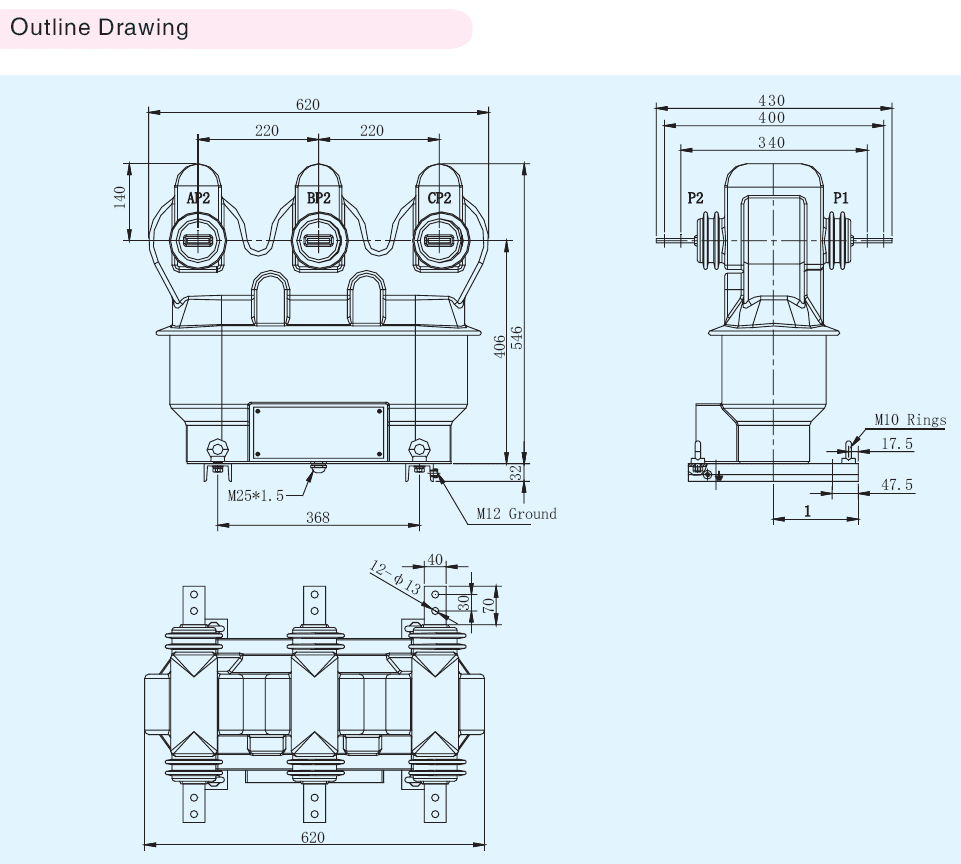

Outline Drawing
