| Prod Model: |
JLT-1000L/UL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Water Flow Rate: |
1000m3/H |
| Frame Members: |
C.S + HDG |
| Shell Body: |
FRP |
| Cold Water Basin: |
FRP |
| Filling/Eliminator/Louver: |
PVC |
| Rotator: |
ABS |
| Ladder: |
C.S + HDG |
| Structural Connectors: |
C.S + HDG |
| Bolts,Nuts, And Washers: |
C.S + HDG |
| Fan Blade And Hub Material: |
ABS |
| Usage: |
Refrigerator |
| Certification: |
ISO |
| Control Type: |
Mechanical |
| Type: |
Refrigeration Compressor |
| Material: |
FRP and HDG and Others |
| Cooling Purpose: |
Cooling Water Temperature |
| Brand: |
Jinling |
Product Description

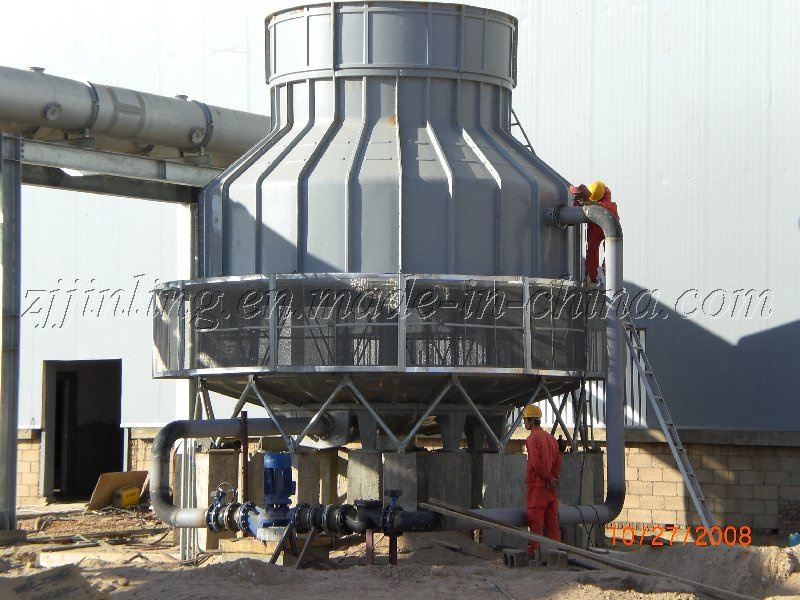

JLT Series Counter Flow Round Cooling Tower JLT-1000L/UL
Primary Competitive Advantages:
1. Brand-name Parts
2. Guarantee/Warranty
3. Competitive Price
4. Excellent Features
5. Superior Performance
6. Prompt Delivery
7. Quality Approvals
8. Well-deserved Reputation
9. High-Class Service
10. Small Orders Accepted
11. ISO9001 Quality System Certification
12. ISO14001 Environment System Certification
Skey Specifications/Special Feature:
1. Materials: FRP panels, HDG framework and PVC infill
2. With low noise model or super low noise
3. Used all over the world
JLT Series Customer Option
1. Automatic Oilling Device
2. Independent R&D Reducer
Delivery Details:
1. FOB Port: Ningbo or Shanghai
2. Lead Time: 20-35 days.
| Performance Index for JLT Series(3-1000L/UL) Counter Flow Round Cooling Tower |
| Model | Water Flow M3/H | Head Load Pressure-(X10000Pa) | Overall Dimensions(MM) | Pipe Connection(DN:mm) | Exhaulst Fan | Weight(KG) |
| Standard | Low-Noise | Super Low-Noise | Inlet Pipe | Outlet Pipe | Overflow Pipe | Drain Pipe | Make up Pipe | Diateter(MM) | KWXSets | Stand | Low-noise | Super Low-noise |
| JLT-3 | 3 | 1 | 700 | 1130 | 1040 | 1580 | 25 | 25 | / | 15 | 15 | 400 | 0.18 | 38 | 58 | 42 | 63 | 53 | 75 |
| JLT-6 | 6 | 1.2 | 920 | 1460 | 1245 | 2100 | 40 | 40 | 25 | 25 | 15 | 584 | 0.18 | 54 | 130 | 57 | 136 | 72 | 151 |
| JLT-8 | 8 | 1.3 | 920 | 1460 | 1245 | 2100 | 40 | 40 | 25 | 25 | 15 | 584 | 0.18 | 60 | 135 | 63 | 141 | 78 | 157 |
| JLT-10 | 10 | 1.4 | 1020 | 1705 | 1380 | 2345 | 50 | 50 | 25 | 25 | 15 | 584 | 0.18 | 75 | 195 | 78 | 202 | 97 | 217 |
| JLT-12 | 12 | 1.4 | 1380 | 1605 | 1710 | 2370 | 50 | 50 | 25 | 25 | 15 | 760 | 0.37 | 82 | 259 | 87 | 266 | 122 | 301 |
| JLT-16 | 16 | 1.6 | 1380 | 1825 | 1710 | 2520 | 50 | 50 | 25 | 25 | 15 | 760 | 0.37 | 94 | 309 | 99 | 313 | 134 | 348 |
| JLT-20 | 20 | 1.7 | 1380 | 2050 | 1710 | 2745 | 50 | 50 | 25 | 25 | 15 | 760 | 0.37 | 113 | 327 | 120 | 334 | 155 | 369 |
| JLT-25 | 25 | 1.7 | 1600 | 1900 | 2035 | 2700 | 80 | 80 | 25 | 25 | 15 | 884 | 0.75 | 144 | 447 | 150 | 453 | 185 | 498 |
| JLT-30 | 30 | 1.7 | 1800 | 2075 | 2130 | 2875 | 80 | 80 | 25 | 25 | 15 | 884 | 0.75 | 185 | 666 | 198 | 680 | 243 | 725 |
| JLT-40 | 40 | 1.8 | 1800 | 2295 | 2130 | 3095 | 80 | 80 | 25 | 25 | 15 | 884 | 1.1 | 257 | 730 | 270 | 743 | 315 | 788 |
| JLT-50 | 50 | 1.8 | 2100 | 2260 | 2520 | 3275 | 100 | 100 | 40 | 40 | 20 | 1184 | 1.1 | 423 | 753 | 433 | 768 | 493 | 823 |
| JLT-60 | 60 | 1.9 | 2100 | 2490 | 2520 | 3505 | 100 | 100 | 40 | 40 | 20 | 1184 | 1.5 | 521 | 913 | 531 | 923 | 611 | 1003 |
| JLT-70 | 70 | 2.3 | 2600 | 3010 | 3040 | 4180 | 100 | 100 | 40 | 40 | 20 | 1470 | 2.2 | 567 | 983 | 578 | 994 | 658 | 1074 |
| JLT-80 | 80 | 2.4 | 2600 | 3250 | 3040 | 4420 | 100 | 100 | 40 | 40 | 20 | 1470 | 2.2 | 607 | 1023 | 618 | 1034 | 698 | 1114 |
| JLT-90 | 90 | 2.5 | 2890 | 3250 | 3290 | 4420 | 100 | 100 | 40 | 40 | 20 | 1470 | 2.2 | 660 | 1090 | 675 | 1095 | 755 | 1190 |
| JLT-100 | 100 | 2.6 | 2890 | 3490 | 3290 | 4650 | 100 | 100 | 40 | 40 | 20 | 1470 | 2.2 | 713 | 1148 | 724 | 1159 | 804 | 1239 |
| JLT-125 | 125 | 2.8 | 3300 | 3250 | 3770 | 4505 | 125 | 125 | 40 | 40 | 20 | 1780 | 4 | 908 | 1588 | 925 | 1605 | 1025 | 1705 |
| JLT-150 | 150 | 3 | 3300 | 3475 | 3770 | 4735 | 150 | 150 | 80 | 50 | 25 | 1780 | 4 | 1015 | 2035 | 1032 | 2052 | 1132 | 2152 |
| JLT-175 | 175 | 3 | 3960 | 3710 | 4630 | 4910 | 150 | 150 | 80 | 50 | 25 | 2370 | 5.5 | 1613 | 3317 | 1643 | 3338 | 1784 | 3488 |
| JLT-200 | 200 | 3.3 | 3960 | 3930 | 4630 | 5130 | 200 | 200 | 80 | 50 | 25 | 2370 | 5.5 | 1796 | 3465 | 1817 | 3486 | 1967 | 3636 |
| JLT-225 | 225 | 3.5 | 4400 | 4100 | 5100 | 5300 | 200 | 80 | 50 | 25 | 50 | 2400 | 5.5 | 1810 | 3514 | 1932 | 3636 | 2082 | 3786 |
| JLT-250 | 250 | 3.8 | 4400 | 4400 | 5100 | 5630 | 200 | 80 | 50 | 25 | 50 | 2400 | 7.5 | 2280 | 4082 | 2315 | 4117 | 2495 | 4297 |
| JLT-300 | 300 | 4 | 5320 | 4640 | 6200 | 6040 | 250 | 250 | 100 | 80 | 50 | 3000 | 7.5 | 2420 | 6101 | 2457 | 6138 | 2637 | 6318 |
| JLT-350 | 350 | 4.2 | 5320 | 4870 | 6200 | 6270 | 250 | 250 | 100 | 80 | 50 | 3000 | 11 | 2530 | 6475 | 2571 | 6516 | 2751 | 6696 |
| JLT-400 | 400 | 4.5 | 6000 | 5050 | 7000 | 6550 | 250 | 250 | 100 | 80 | 50 | 3400 | 11 | 3153 | 8185 | 3206 | 9238 | 3601 | 8633 |
| JLT-450 | 450 | 4.7 | 6000 | 5280 | 7000 | 6780 | 250 | 250 | 100 | 80 | 50 | 3400 | 15 | 3347 | 9332 | 3401 | 9386 | 3819 | 9904 |
| JLT-500 | 500 | 5 | 6840 | 5350 | 8040 | 6950 | 250 | 250 | 100 | 80 | 50 | 3700 | 15 | 3860 | 10970 | 3980 | 11090 | 4200 | 11300 |
| JLT-600 | 600 | 5.2 | 6840 | 5570 | 8040 | 7170 | 250 | 250 | 100 | 80 | 50 | 3700 | 18.5 | 4084 | 11670 | 4143 | 11786 | 4863 | 11958 |
| JLT-700 | 700 | 5.2 | 7960 | 5830 | 9160 | 7630 | 300 | 300 | 100 | 80 | 50 | 4200 | 22 | 5460 | 13250 | 5580 | 13376 | 5680 | 13676 |
| JLT-800 | 800 | 5.4 | 7960 | 6050 | 9160 | 7850 | 300 | 100 | 80 | 50 | 50 | 4200 | 22 | 5780 | 13570 | 5900 | 13696 | 6000 | 13796 |
| JLT-1000 | 1000 | 5.8 | 8880 | 6390 | 1000 | 8500 | 350 | 350 | 125 | 80 | 50 | 5000 | 30 | 7315 | 15110 | 7450 | 15245 | 7570 | 15365 |
| Design Conditions:Water Inlet Temp.-T1=37ºC,Water Out Temp.-T2=32ºC,-WBT=28ºC, RangeΔTS=5ºC Barometric-P=99400Pa. |
| Remark:The cooling tower can be made-to-measure according to customer`s design conditions and special requirements. |
| Explanation Model :JLT: Counter Flow Cooling Tower; L: low Niose; UL: Super Low Noise |
Since founded in 1983, Jinling Coolin Tower & Refrigeration Equipment has been providing the resolution and products with the most reliable quality and lowest cost for customers. Now Jinling coolin tower has become the market leader and been appraised as an enterprise with"AAA"grade outstanding credit for ten years.
With more than 20 years experiences in refrigeration equipment for cooling tower production, Jinling cooling tower has become a modern enterprise for cooling tower and refrigeration equipment specializing in research, manufacture, marketing and service. Jinling is awarded as high-tech enterprise in Zhejiang province, also becoming a leading researching center for cooling tower and refrigeration equipment in Zhejiang
JINLING 08A. PPS
Jinling cooling towers are honored for the high-level products development, well-trained staff, high-efficient organization, high-quality support system, good after-sale service and perfect service network. In 1997, Jinling passed ISO9001. In 2004, Jinling got ISO14001 environment system certificated. In 2005, Jinling passed CTI test and became one of the 14 CTI certified manufacturers around the world. Jinling JNC series cross flow closed type cooling tower successfully passed CTI test on 19TH, Sep. 2008, becoming the first one in China (the 5th manufacturers in the world) who has CTI certificate for closed type cooling tower.
With the design, manufacture and installation for more than 1000 projects in industrial and air-conditioning fields, and cooperation with the University of Shanghai for Science and Technology(USST), Jinling now has developed JLT series round counter flow, JFT series rectangular counter flow, and JNT series rectangular cross flow cooling tower which are high-leveled in China. Jinling has also expanded its manufacture and sales fields to many other fields, including closed cooling tower and air-conditioning equipments for industrial and special utilit.
