Joystick Crane Wireless Remote Control, Electric Wireless Remote Control

Name: Joystick Crane Wireless Remote Control, Electric Wireless Remote Control
Brand: all-electronics-online.com
SKU: 731414232
Availability: InStock
Rating: 4.8 (28 reviews)

Price:	US $ 940/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	F24-60
Application:	Special Equipment
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Battery Type:	AA Battery
Voltage:	18~65V AC/DC,65~440V
Material:	Glass Fiber Reinforced Nylon-6

Product Description

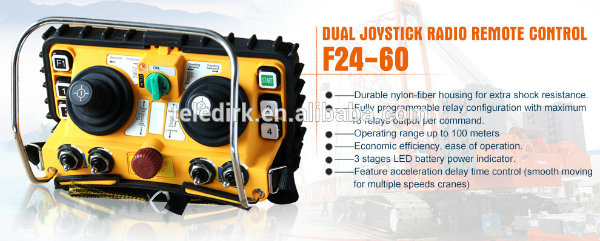

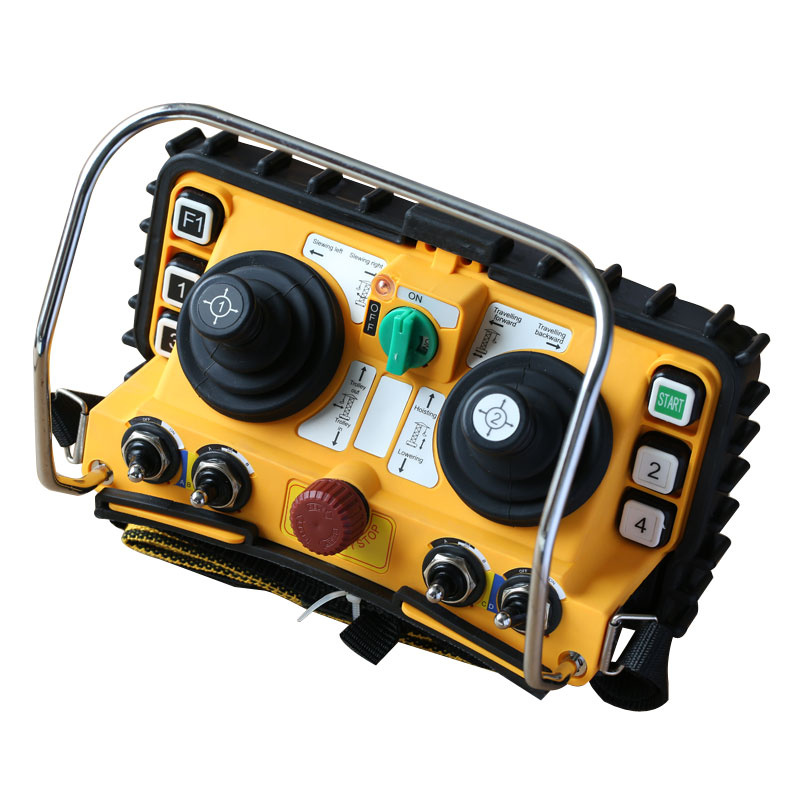

Joystick crane wireless remote control,electric wireless remote control

1 Product Description

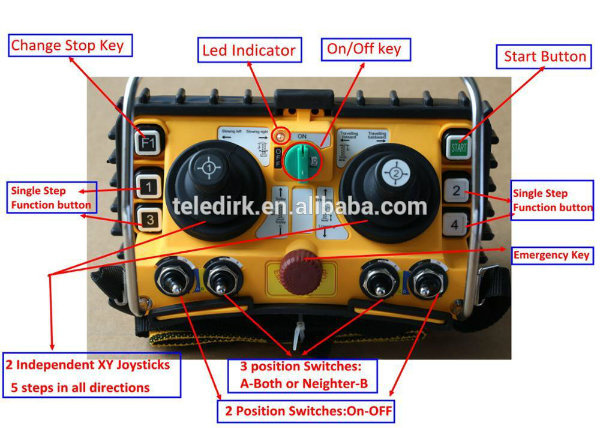

* 2 pieces 4 directions 5-step joystick, 6 spare push button, 4 toggle switches

* 100m control motions

* Shock-absorbing and waterproof, IP 65

* Total control motions can reach 40

* One year warranty

* Sample & OEM acceptable

* Receiver voltage: 12~440V (optional)

* Transmitter voltage: 6V (4 AA batteries)

2 Basic information:

Control distance	Up to 100m
Control point	40
Certificates	CE, FCC, ISO9001
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C___+80°C
Enclosure protection class	IP65
Transmitter power	DC 6V
Receiver power	AC 18-65v or 65-440v or AC/DC 12V
Output capacity	Full sealed relay output with 5 amperes
Frequency	VHF 312-331MHz. 425-446Mhz.
Radio output	0-10v

3 Standard configuration:
One transmitter ;
One receiver;
One 3m cable connect with receiver
One operation and maintain manual .

4 Packing information:
1 Set per carton,
Carton size: 55*30*26cm Weight: 6.25kg

5.Products Application:

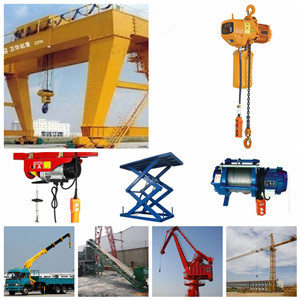

Widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.

7. Notes:

The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries

8.Company Advantage:

1. More than 10 years researching and exporting experience in Radio Remote Control industry.

2. More than 20 people R&D working team, have the ability to research and develop new product independently.

3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.

4. Well and high quality control, all working process according to ISO9001:2008.

5. CE, FCC & ISO certificates.

6. OEM acceptable

Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
