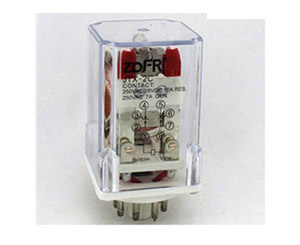

Jqx-10f 2z General Purpose Relay

Jqx-10f 2z General Purpose Relay
Price: US $ 1/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: JQX-10F 2Z

Product Description

10A switching capability (2Z/2C type)
8PIN configurations
Environmental friendly product (RoHS available)
Various socket available,and dust cover of limpidity
Silver alloy contact available
Exterior size: 40*40*60.5mm



Contact Form:

2Z (2C)

Contact Material:

Silver alloy  AgCdO

Initial Contact Resistance:

100m(1A 6VDC)

Contact Rating(Res. Load):

10A 250VAC/30VDC

Coil Voltage:

3VDC/5VDC/6VDC/9VDC/12VDC/

18VDC/24VDC/48VDC

Max. Switching Voltage:

250VAC/30VDC

Max. Switching Current:

10A

Max. Switching Power:

300W  2500VA

Mechanical life:

1×107 times

Electrical life:

1×105 times

Initial Insulation Resistance:

100m500VDC

Dielectric Strength:

Between coil contacts  1500VAC 1min.

Between open contacts  500VAC 1min.

Electric contact group  1500VAC 1min.

Operate Time (at nomi. Volt):

10ms

Release Time (at nomi. Volt):

5ms

Impact Resistance:

Stability  100m/s2 ; Intensity  1000m/s2

Vibration Resistance:

1mm 50~55Hz

Temperature:

-55º ~ +70º

Termination:

PCB and Plug type leading-out terminal

Coil power:DC:

1.5W    AC:2.5VA

Nominal Voltage:

5VDC/6VDC/12VDC/24VDC/48VDC/110VDC

6VAC/12VAC/24VAC/48VAC/120VAC/220VAC/240CAC

Action Voltage:

4.8VDC/9.6VDC/19.2VDC/38.4VDC/88VDC/176

4.8VAC/9.6VAC/19.2VAC/38.4VAC/96VAC/176

Drop-out Voltage:

7.2VDC/14.4VDC/28.8VDC/57.6VDC/120VDC/132VDC

7.2VDC/14.4VDC/28.8VDC/57.6VDC/132VDC/164VDC








ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
