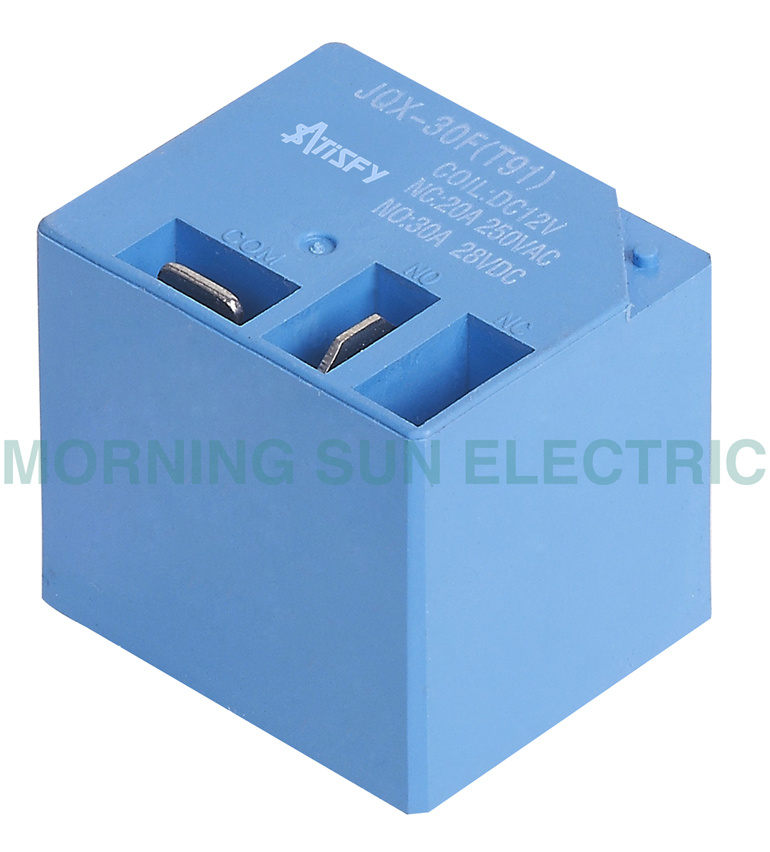

JQX-16F(T91) PCB Relay
1. Coil: 5V to 60VDC
2. Rated load: 20A 240VAC/28VDC; 30A 240VAC/28VDC
3. Small size, high power capacity

JQX-16F(T91) PCB Relay
1. Coil: 5V to 60VDC
2. Rated load: 20A 240VAC/28VDC; 30A 240VAC/28VDC
3. Small size, high power capacity

Specification
Contact	Contact form	1A, 1B, 1C		1A(Speciallymodel)
	Rated load	30A/250VAC, 30VDC	20A/250VAC, 30VDC	40A/250VAC, 30VDC
	Operating power(Resistive)	7500VA, 900W	5000VA, 600W	10000VA 1200W
	Contact resistance(Initial)	≤ 50mΩ
	Material	Ag alloy
	Electrical life(1S, 1S)	≥ 105 cycles (1800 Ops/h)
	Mechanical life(300/1)	≥ 107 cycles (18000 Ops/h)
Operate voltage(at 25° C)		DC: ≤ 75%Rated voltage, AC: ≤ 80%Rated voltage
Release voltage(at 25° C)		DC: ≥ 10%Rated voltage, AC: ≥ 30%Rated voltage
Max. Allowed voltage(at 25° C)		110%Rated voltage
Insulation resistance		≥ 500MΩ (500VDC)
Coil power consumption	DC(W)	0.9
	AC(VA)	1.2
Operate time(Rated voltage)		≤ 15ms
Release time(Rated voltage)		≤ 10ms
Dielectric Strength	Between contacts	1500VAC/1min(Leakage current 1 mA)
	Between contacts(different pole)
	Between contact and coil	1500VAC/1min(Leakage current 1 mA)
Ambient temperature		-40~+70° C
Humidity		35%~85%RH
Atmospheric Pressure		86~106KPa
Shock resistance		10G (Half a wave of pulses of sine 11ms)
Vibrtion resistance		10~50Hz Dual amplitude 1.5mm
Install model		PCB terminal
Weight		Approx30g
Like products		OMRON G7G



Nominal Voltage VDC	Pull-in Voltage	Release Voltage	Coil ResistanceΩ : ± 10%
	VDC	VDC
5	3.75	0.5	30
6	4.5	0.6	45
9	6.75	0.9	100
12	9	1.2	160
15	11.25	1.5	260
18	13.5	1.8	385
24	18	2.1	660
48	36	4.8	2560
70	52.5	7	5500
110	82.5	11	13500
