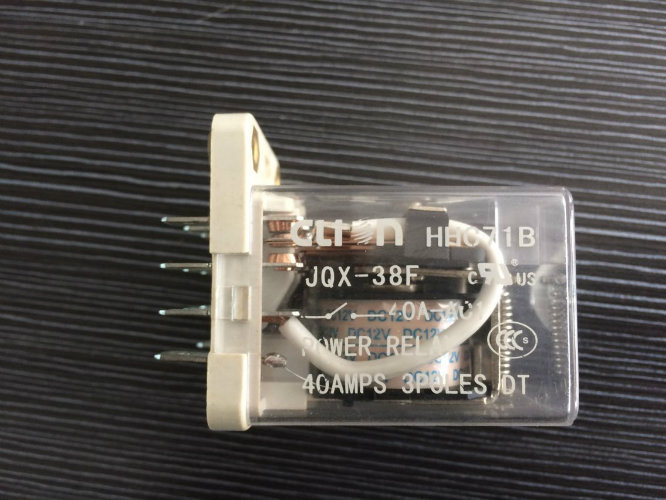

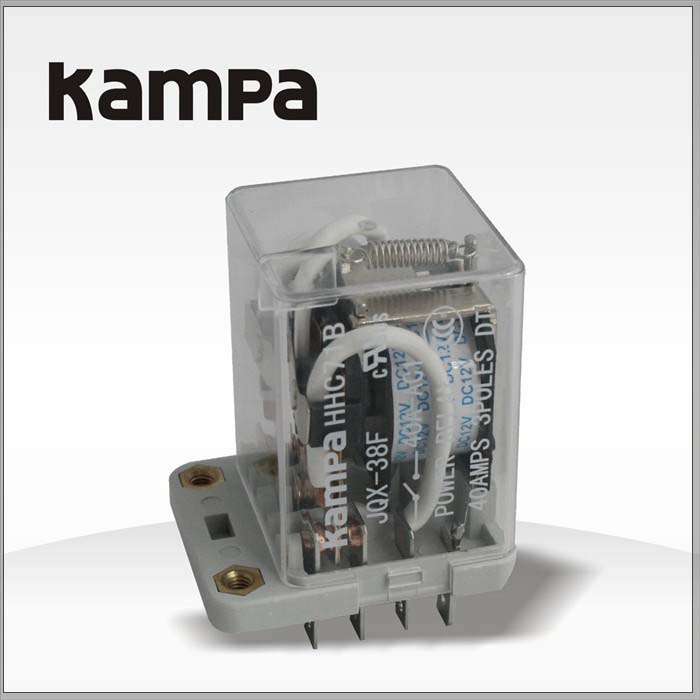

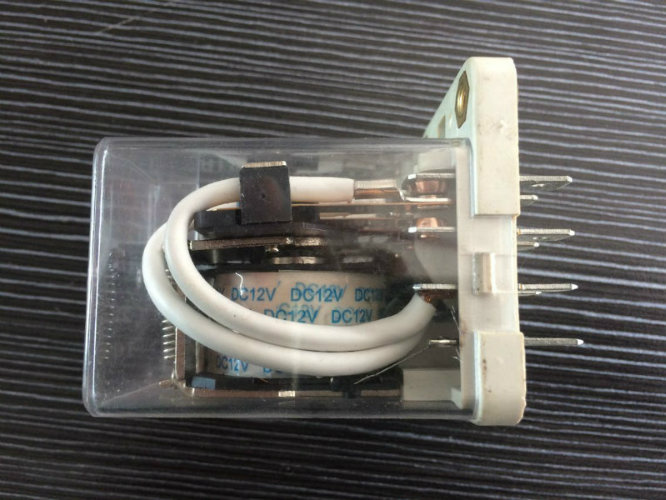

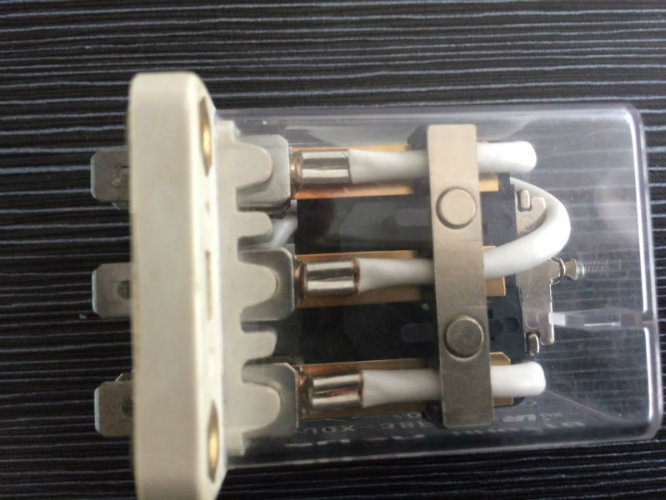

Jqx-38f 40A DC24V Coil Voltage General Purpose Relay

Name: Jqx-38f 40A DC24V Coil Voltage General Purpose Relay
Brand: all-electronics-online.com
SKU: 818403465
Availability: InStock
Rating: 4.5 (62 reviews)

Price:	US $ 3.62/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JQX-38F
Form:	1A.1b.1c
Rated Load:	60A
Max Switching Voltage:	250VAC/30VDC
Contact Resistance:	≤100mΩ
Material:	Silver Alloy

Product Description

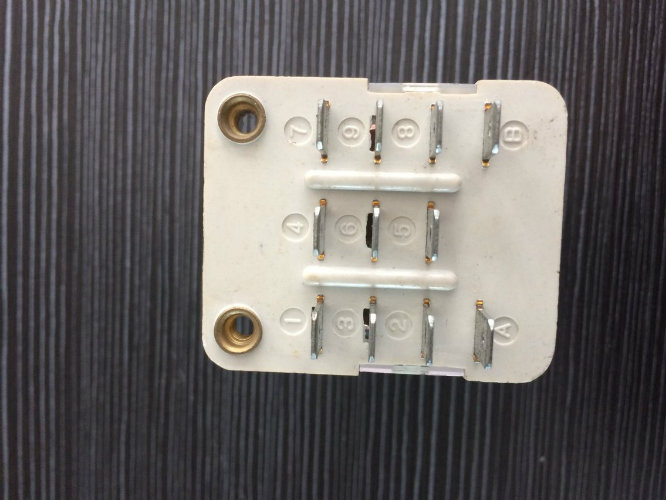

11 pins 3PDT, with coil voltage DC 24V 40A eletromagnetic relay.

The JQX-38F General Purpose Relay can adjust automatically, protect and transform the electric circuit.

Widely used in the remote control, communication, automatic control system, electronic equipments, etc.

Power Relay: JQX-38F
Coil voltage: DC5-60V,AC12-220V
Contact Specification
Contact form		2Z,2H,2D 3Z,3H,3D
Contact resistance		≤100mΩ(1A 6VDC)
Contact material		AgCdO
Contact capacity		A:40A 250VAC/30VDC			B:30A 250VAC/30VDC
Technical Specification
Insulation resistance		≥1000MΩ.500VDC
Dielectric strength		BCC ≥2500VAC 1min
		BOC ≥1200VAC 1min
Operate / Release time		≤25ms/15ms
Terminal type		Socket terminal mounting
Coil Specification
Rated coil power: DC2.5W AC5VA
Coil Data
Nominal voltage VDC	Operate voltage VDC	Release voltage VDC	Coil resistance Ω±10%	Nominal voltage VAC	Operate voltage VAC	Release voltage VAC	Coil resistance Ω±10%
12	9.60	1.20	57	12	9.60	3.60	10
24	19.2	2.40	230	48	19.20	7.20	40.3
48	38.4	4.80	920	110	88.00	36	847
60	48.0	6.00	1440	220/240	176	72	3380/4030

2.Picture
